NEC MultiSync EA231WU 57,1 cm (22.5") 1920 x 1200 Pixels WUXGA LED Zwart

NEC MultiSync EA231WU, 57,1 cm (22.5"), 1920 x 1200 Pixels, WUXGA, LED, 5 ms, Zwart

Niet op voorraad

Fabrikant NEC
MPN 60004782
EAN 5028695117044
€ 194,00 excl. BTW

NEC MultiSync EA231WU 57,1 cm (22.5") 1920 x 1200 Pixels WUXGA LED Zwart

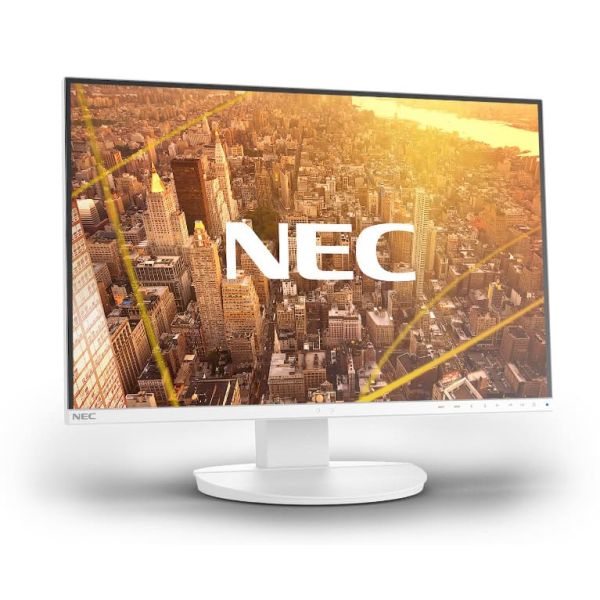

NEC MultiSync® EA231WU Ultra-Narrow Bezel – 16:10 format in affordable screen size

NEC’s new 22.5-inch display in 16:10 aspect ratio is one of the first to enter the market in its size class.

The new display is outfitted to use the maximum vertical screen space and is designed to suit professional environments that need to project vertically-oriented documents. The EA231WU offers the same vertical screen workspace as a 24,” 16:9 screen without compromising quality. The display comes with best in class ergonomics that meet all safety regulations. The height of the screen adjusts from desk level up to 150 mm, so it is in line with the new standards for creating an ergonomic workspace.
  • Maximised vertical screen estate – new 22.5 “ 16:10 screen size offers a strong value proposition for cost sensitive users needing the same vertical workspace height as a classic 24“ 16:9 display”
  • Maximum connectivity flexibility – the complete connectivity range (VGA, DVI, DP, HDMI and USB) allows full flexibility for users to connect the display to existing platforms
  • Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior
  • Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity
  • Auto-Adjust Power Consumption – to minimize unnecessary power usage, the Human and Ambient Light Sensors adjust the display brightness according to user presence and room lighting conditions
  • Ease of multi-display control – manage the settings of up to 5 displays in a multi-monitor configuration via the master display with ControlSync® technology

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
57,1 cm (22.5")
Resolutie*
1920 x 1200 Pixels
HD type*
WUXGA
Oorspronkelijke beeldverhouding*
16:10
Display technologie*
LED
Soort paneel*
IGZO
Backlight type
W-LED
Touchscreen*
Nee
Helderheid (typisch)
250 cd/m²
Responstijd
5 ms
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
640 x 640, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1366 x 768, 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA)
Beeldverhouding
16:10
Typische contrastverhouding*
1000:1
Maximale refresh snelheid*
60 Hz
Kijkhoek, horizontaal
178°
Kijkhoek, verticaal
178°
Beeldscherm, aantal kleuren*
16.78 miljoen kleuren
Responstijd (snel)
6 ms
Pixel pitch
0,25 x 0,25 mm
Frequentiebereik horizontaal
31,5 - 70 kHz
Frequentiebereik verticaal
50 - 60 Hz

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee
Laag-blauw-licht-technologie
Ja

Multimedia

Ingebouwde luidsprekers*
Ja
Ingebouwde camera*
Nee

Design

Markt positionering*
Bedrijf
Kleur van het product*
Zwart
Kleurnaam
Black
Certificering
CE; EAC; ErP; ISO 9241-307 (pixel failure class I); PSB; RoHS; TCO 7.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE

Poorten & interfaces

Ingebouwde USB-hub*
Ja
Versie USB-hub
2.0
DVI-poort
Ja
DVI-D poorten
1
Aantal HDMI-poorten
1
Aantal DisplayPorts
1

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm

Ergonomie

In hoogte verstelbaar*
Ja
In hoogte verstelbaar
15 cm
Draaibaar
Ja
Horizontaal draaibaar
-170 - 170°
Bereik kantelhoek
-5 - 35°
kantel aanpassingen
Ja

Energie

Energie-efficiëntieklasse (SDR)*
D
Energieverbruik (SDR) per 1000 uur*
12 kWu
Stroomverbruik (typisch)*
13 W
Stroomverbruik (PowerSave)
0,31 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
0.9 A
Energie-efficiëntieschaal
A tot G

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 35 °C
Temperatuur bij opslag
-10 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 85 procent

Inhoud van de verpakking

Staander inbegrepen
Ja
Meegeleverde kabels
AC, DVI, DisplayPort, VGA
Snelstartgids
Ja
Gebruikershandleiding
Ja

Gewicht en omvang

Breedte apparaat (met standaard)
498,9 mm
Diepte apparaat (met standaard)
250 mm
Hoogte apparaat (met standaard)
337,2 mm
Gewicht (met standaard)
8,3 kg
Breedte ( zonder voet )
49,9 cm
Diepte ( zonder voet )
4,56 cm
Hoogte (zonder voet )
32 cm
Gewicht (zonder voet)
5,9 kg

Verpakking

Type verpakking
Doos

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Geïntegreerde TV Tuner
Nee
