AG Neovo TX-10 25,6 cm (10.1") 1280 x 800 Pixels WXGA LED Touchscreen Kiosk Zwart

AG Neovo TX-10, 25,6 cm (10.1"), 1280 x 800 Pixels, WXGA, LED, 5 ms, Zwart

Niet op voorraad

Fabrikant Neovo
MPN TX100011E0100
EAN 4710739596274
€ 394,00 excl. BTW

AG Neovo TX-10 25,6 cm (10.1") 1280 x 800 Pixels WXGA LED Touchscreen Kiosk Zwart

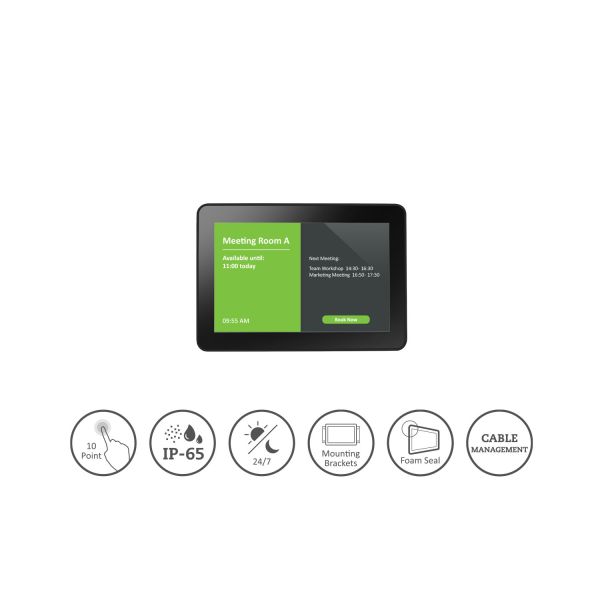

The TX-10 Multi-touch Interactive Display, with its 10.1-inch, 10-point touch screen, brings the experience of a tablet into the form factor of a monitor. Its foam seal design supports seamless integration into kiosks and its front-side IP65 rating protects the screen from dust and water. External mounting brackets are provided for installation in a wide variety of application environments—in a meeting room as a scheduling display, or in a number of public, commercial, and industrial interactive applications. Allowing for either landscape or portrait orientation, the TX-10 multi-touch interactive display is the perfect fit.
  • Incorporates projected capacitive touch technology
  • 10-point simultaneous multi-touch capability
  • Flush touch screen makes surface neat
  • Plastic resin bezel ensures an airtight fit
  • Front-sided IP65 rating compliant to protect the screen from liquid and dust
  • Glass used in the touchscreen has passed the UL60950 ball-drop test for high-impact resistance and durability
  • Support high operating temperature of up to 50°C (122°F)
  • Wired (up to 1.53 meters) OSD controller is ideal for remote OSD control
  • VESA standard mounting interface and included side mounting brackets for flexible installation
  • Flexible display orientation: Landscape/Portrait

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
25,6 cm (10.1")
Resolutie*
1280 x 800 Pixels
HD type*
WXGA
Oorspronkelijke beeldverhouding*
16:9
Display technologie*
LED
Soort paneel*
VA
Backlight type
LED
Touchscreen*
Ja
Touch screen type
Kiosk
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Helderheid (typisch)
500 cd/m²
Responstijd
5 ms
Beeldscherm vorm*
Flat
Typische contrastverhouding*
1300:1
Maximale refresh snelheid*
60 Hz
Kijkhoek, horizontaal
170°
Kijkhoek, verticaal
170°
Beeldscherm, aantal kleuren*
16,2 miljoen kleuren
Pixel pitch
0,169 x 0,169 mm
Frequentiebereik horizontaal
31 - 50 kHz
Frequentiebereik verticaal
56 - 60 Hz
Hardheid oppervlak
7H
RGB-kleurruimte
NTSC
NTSC-dekking (normaal)
45 procent

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee
Bedrijfsuren (uren/dagen)
24/7
Ondersteunt Windows
Windows 10, Windows 7, Windows 8
Ondersteunt Mac-besturingssysteem
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Ondersteunt Linux
Ja
Aantal gelijktijdige touchpoints (Windows 7)
10

Multimedia

Ingebouwde luidsprekers*
Nee
Ingebouwde camera*
Nee
Ingebouwde microfoon
Nee

Design

Markt positionering*
Bedrijf
Kleur van het product*
Zwart
Internationale veiligheidscode (IP)
IP65
Glas dikheid
3,3 mm
Certificering
CE, LVD, BSMI, RoHS, REACH, WEEE

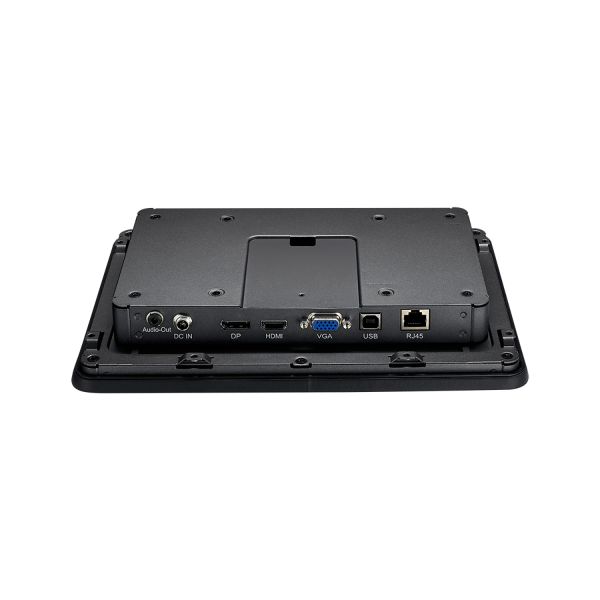

Poorten & interfaces

Ingebouwde USB-hub*
Nee
USB Touch port
Ja
Aantal USB Touch-poorten
1
VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1

Poorten & interfaces

HDMI versie
1.3a
Aantal DisplayPorts
1
Hoofdtelefoon uit*
Ja
Hoofdtelefoonuitgangen
1
Type aansluitplug
3,5 mm

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm
Ophangsysteem voor aan de muur
Ja
Verbeterd kabelbeheer
Ja
In hoogte verstelbaar*
Nee
Plug and play
Ja
LED-indicatoren
Ja

Energie

Energie-efficiëntieklasse (SDR)*
D
Energieverbruik (SDR) per 1000 uur*
7,5 kWu
Stroomverbruik (typisch)*
7 W
Stroomverbruik (in standby)*
1,1 W
Stroomverbruik (indien uit)
0,3 W
AC-ingangsspanning
240 V
AC-adapter, uitgangsspanning
12 V
Soort voeding
DC
Energie-efficiëntieschaal
A tot G

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Inhoud van de verpakking

Meegeleverde kabels
AC, DisplayPort, USB, VGA
Snelstartgids
Ja

Gewicht en omvang

Breedte ( zonder voet )
26,1 cm
Diepte ( zonder voet )
3,94 cm
Hoogte (zonder voet )
18,3 cm
Gewicht (zonder voet)
1,4 kg

Verpakking

Breedte verpakking
370 mm
Diepte verpakking
160 mm
Hoogte verpakking
325 mm
Gewicht verpakking
2,4 kg

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, REACH, RoHS, WEEE

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Ondersteuning voor plaatsing
Horizontaal/Verticaal
Ondersteunde mobiele besturingssystemen
Android
