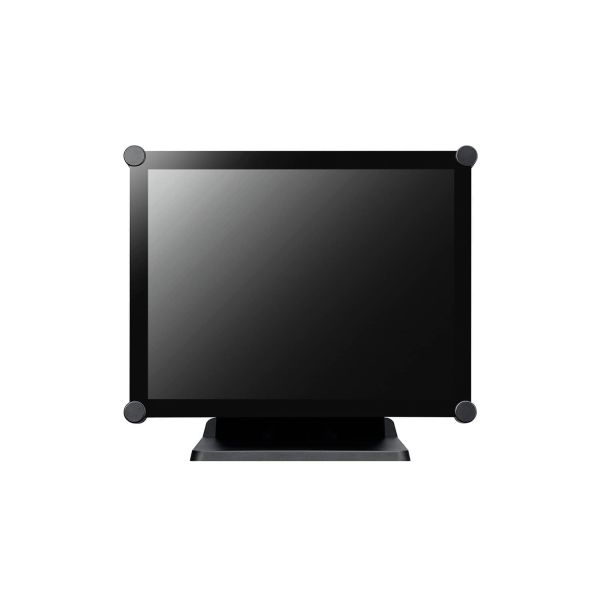

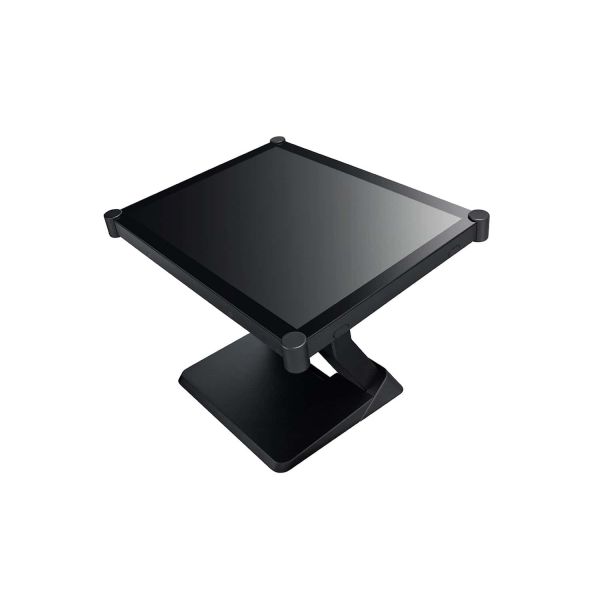

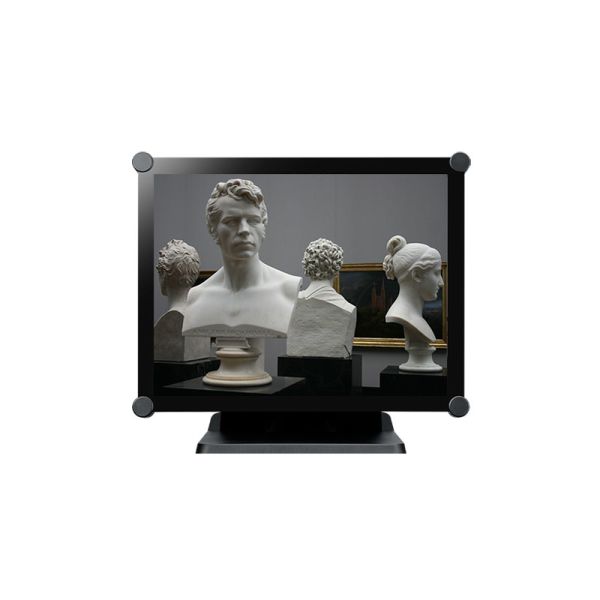

AG Neovo TX-1502 38,1 cm (15") 1024 x 768 Pixels XGA LED Touchscreen Tafelblad Grijs

AG Neovo TX-1502, 38,1 cm (15"), 1024 x 768 Pixels, XGA, LED, 5 ms, Grijs

Nog 1 beschikbaar (bel voor reservering)

Fabrikant Neovo
MPN TX152011E0100
EAN 4710739597257
€ 544,00 excl. BTW

AG Neovo TX-1502 38,1 cm (15") 1024 x 768 Pixels XGA LED Touchscreen Tafelblad Grijs

AG Neovo TX-Series touch screen monitors, available in sizes 15” to 22”, provide a smooth and responsive touch experience with 10-point PCAP touch screens, including responsiveness to latex gloves. With DisplayPort, HDMI and VGA input connectivity, the TX-Series support analogue and digital signals respectively, making them flexible for various applications such as factory automation, information displays, digital signage, and self-service kiosks. These touch screen monitors are complemented by a metal housing with an edge-to-edge tempered glass design which enhances durability for continuous operation in demanding and high-traffic areas.

Premium PCAP Multi Touch Screen

Based on projected capacitive (PCAP) touch screen technology, AG Neovo touch screen monitors can register up to 10 simultaneous touch points with fast, accurate, and extremely sensitive touch response. These seamless touch senses are identical to those used in smartphones and tablets.

Cross-Platform Touch Capability

Multi-Touch capability is optimized to work with various operating systems, providing compatibility with Windows, Linux, macOS, and certain Android versions. This enables more choice to the operating system you use.

IP65 Dust and Water Protection

The TX-Series front IP65 touch screen monitors are designed to protect against dust and liquid spills. This makes these durable touch monitors ideal for the industrial workplace or the demanding, high-use, and high-traffic public locations.

Consistent Form Factor Design

Replacing AG Neovo touch screens never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.

Durable and Scratch Resistant Touch Screen

For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.

Ergonomic Monitors with Flexible Mounting

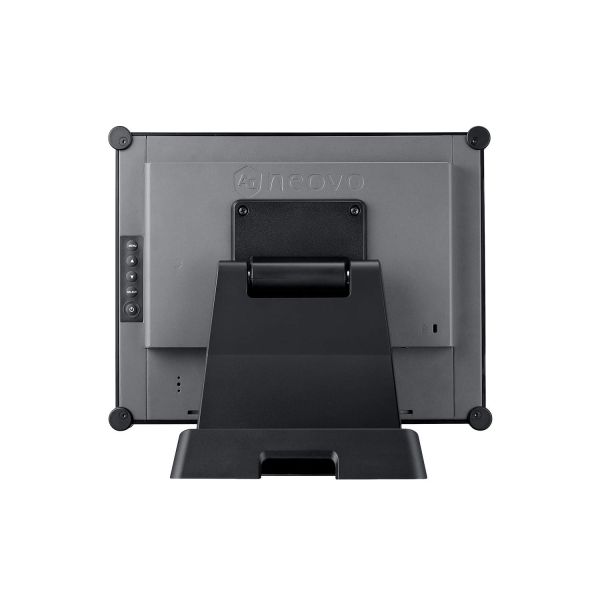

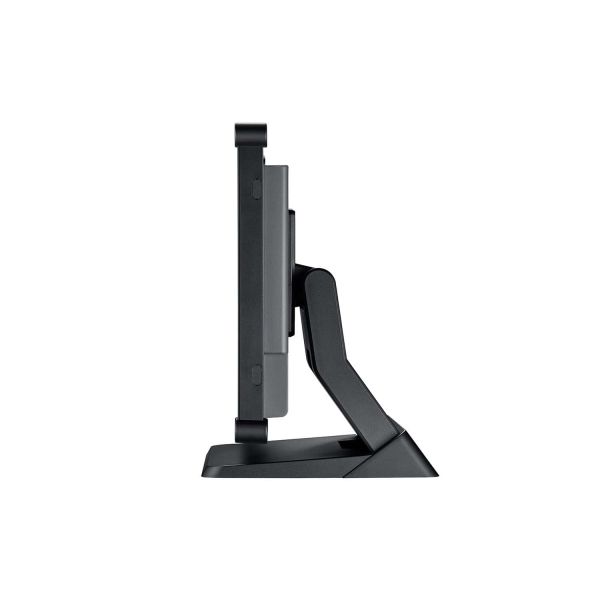

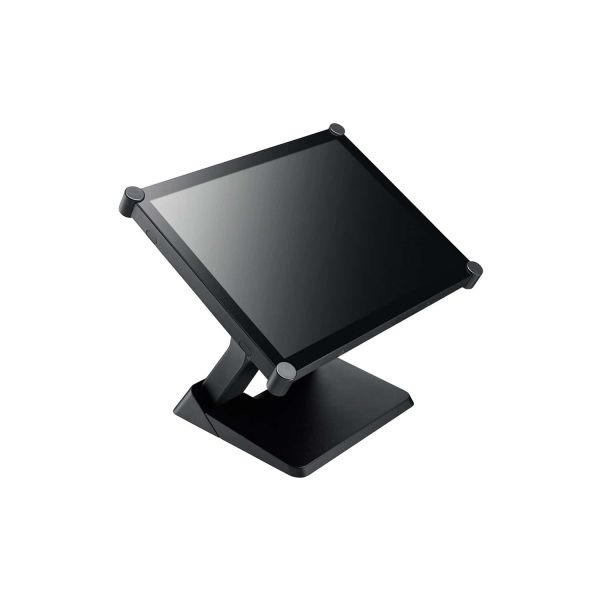

TX-Series touch monitors offer flexible mounting options, from the ergonomic monitor stands that come with the monitors to desk mounts, wall mounts, and all monitor mounts feature VESA mounting patterns. These ergonomic monitors feature adjustable tilt stands. With a tilt capacity ranging from -5 to 90 degrees, users can work in the position most comfortable for them. Tilt stands are beneficial for facilitating public access by non-disabled and disabled users.

Versatile Connectivity

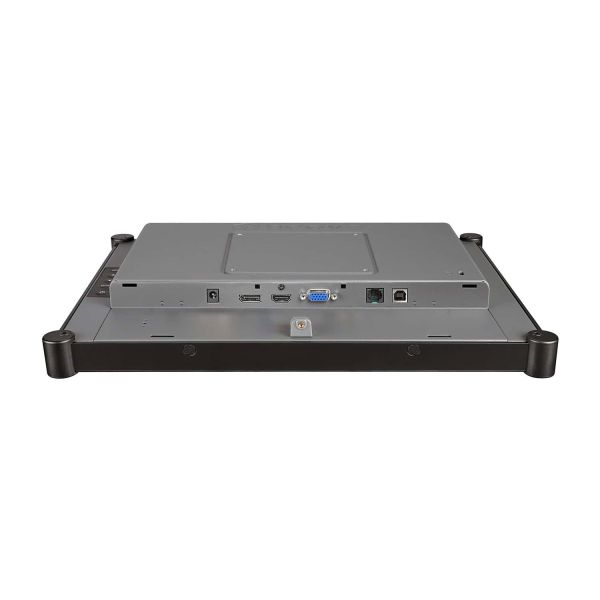

The TX-Series provides new and legacy systems the best of both worlds since it has both analog (VGA) and digital (DisplayPort and HDMI) video inputs, which provide maximum versatility and facilitate users to connect to a variety of devices.
  • LED-backlit technology with 1024x768 and 1920x1080 resolutions
  • Incorporates projected capacitive touch technology
  • 10-point simultaneous multi-touch capability
  • Windows 10 ready - plug and play support for Windows 7/8/10
  • Multi-touch support via driver for Linux and Android OS
  • Optional OSD external remote control via RJ11 interface
  • Front-sided IP65 rating protects the screen from liquid and dust
  • Durable metal housing
  • Versatile connectivity: DisplayPort, HDMI, VGA
  • Designed and developed for continuous 24/7 operation
  • Ergonomic monitor stand offers tilt capacity from -5° to 90°

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
38,1 cm (15")
Resolutie*
1024 x 768 Pixels
HD type*
XGA
Oorspronkelijke beeldverhouding*
4:3
Display technologie*
LED
Soort paneel*
VA
Backlight type
LED
Touchscreen*
Ja
Touch screen type
Tafelblad
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Helderheid (typisch)
350 cd/m²
Responstijd
5 ms
Antireflectiescherm
Ja
Beeldscherm vorm*
Flat
Typische contrastverhouding*
800:1
Kijkhoek, horizontaal
160°
Kijkhoek, verticaal
150°
Beeldscherm, aantal kleuren*
16.78 miljoen kleuren
Pixel pitch
0,297 x 0,297 mm
Frequentiebereik horizontaal
31 - 61 kHz
Frequentiebereik verticaal
55 - 75 Hz
Schermdiameter in centimeters
38,1 cm
Waasniveau
25 procent
Hardheid oppervlak
7H
RGB-kleurruimte
NTSC
NTSC-dekking (normaal)
60 procent

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee
Bedrijfsuren (uren/dagen)
24/7
Inclusief besturingssysteem
Windows 10
Ondersteunt Windows
Windows 10, Windows 7, Windows 8
Ondersteunt Mac-besturingssysteem
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Ondersteunt Linux
Ja

Multimedia

Ingebouwde luidsprekers*
Nee
Ingebouwde camera*
Nee
Ingebouwde microfoon
Nee

Design

Markt positionering*
Bedrijf
Kleur van het product*
Grijs
Materiaal behuizing
Metaal
Afneembare standaard
Ja
Internationale veiligheidscode (IP)
IP65
Glas dikheid
3,1 mm
Certificering
CE, LVD, WEEE, RoHS, REACH,EAC

Poorten & interfaces

Ingebouwde USB-hub*
Nee
USB Touch port
Ja
Aantal USB Touch-poorten
1

Poorten & interfaces

VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1
HDMI versie
1.4
Aantal DisplayPorts
1

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm
Ophangsysteem voor aan de muur
Ja
Bevestigingsmogelijkheid voor kabelslot*
Ja
Kabelslot sleuf type
Kensington
In hoogte verstelbaar*
Nee
Bereik kantelhoek
-5 - 90°
Plug and play
Ja
LED-indicatoren
Ja
kantel aanpassingen
Ja

Energie

Stroomverbruik (typisch)*
8 W
Stroomverbruik (in standby)*
0,6 W
Stroomverbruik (indien uit)
0,3 W
AC-adapter, uitgangsspanning
12 V
Soort voeding
Extern

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Inhoud van de verpakking

Staander inbegrepen
Ja
Meegeleverde kabels
AC, HDMI, USB, VGA

Gewicht en omvang

Breedte apparaat (met standaard)
348,4 mm
Diepte apparaat (met standaard)
214,2 mm
Hoogte apparaat (met standaard)
312,7 mm
Gewicht (met standaard)
4,6 kg
Breedte ( zonder voet )
34,8 cm
Diepte ( zonder voet )
4,66 cm
Hoogte (zonder voet )
27,6 cm
Gewicht (zonder voet)
2,7 kg

Verpakking

Breedte verpakking
415 mm
Diepte verpakking
290 mm
Hoogte verpakking
370 mm
Gewicht verpakking
7 kg

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, REACH, RoHS, WEEE

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Ondersteunde mobiele besturingssystemen
Android
