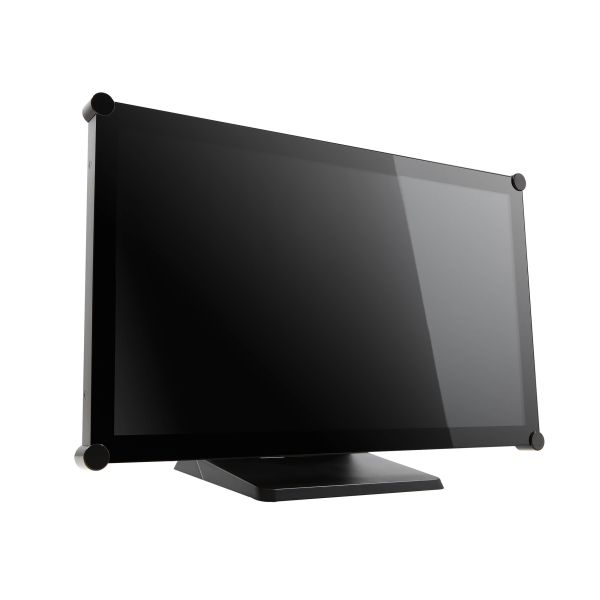

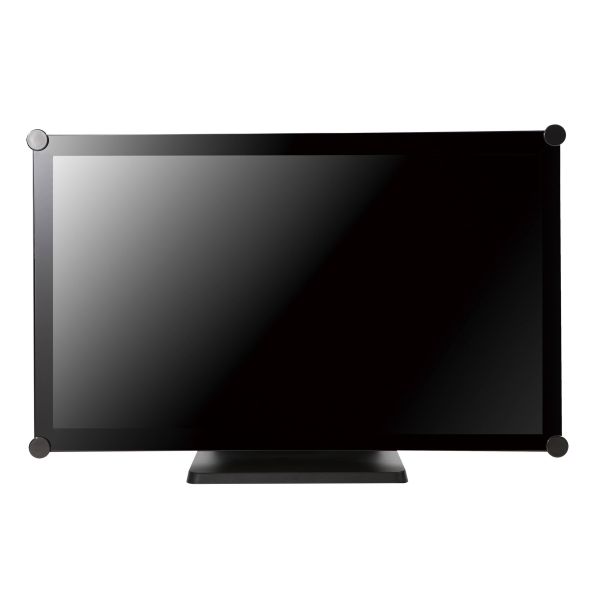

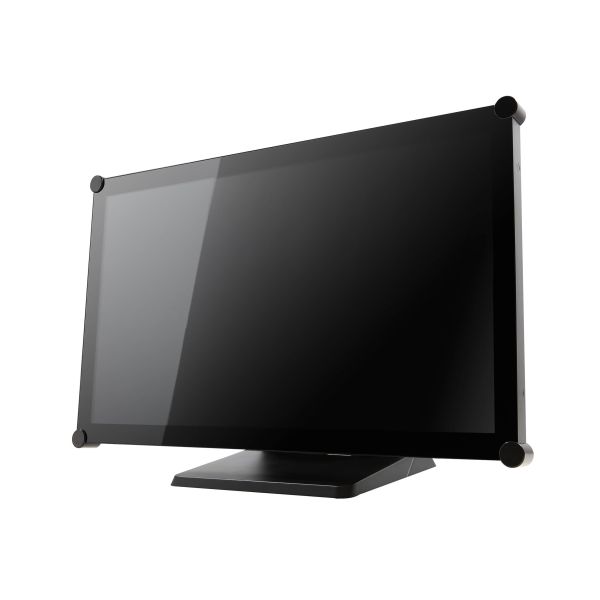

AG Neovo TX-2202A 54,6 cm (21.5") 1920 x 1080 Pixels Full HD LCD Touchscreen Zwart

AG Neovo TX-2202A, 54,6 cm (21.5"), 1920 x 1080 Pixels, Full HD, LCD, 5 ms, Zwart

Niet op voorraad

Fabrikant Neovo
MPN TX22A011E0100
EAN 4710739597967
€ 695,00 excl. BTW

AG Neovo TX-2202A 54,6 cm (21.5") 1920 x 1080 Pixels Full HD LCD Touchscreen Zwart

The TX-2202A touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by contamination, offering 10-point multi-touch capability, giving an accurate and responsive touch experience, even responsiveness to latex gloves. Featuring DisplayPort, HDMI, VGA input connectivity, and dual speakers, the TX-2202A touch monitor is built for flexible use such as self-check-in, self-ordering, and information kiosk. The screen is complemented by the IP65 and IK08 rating, metal casing, and an edge-to-edge 7H tempered glass design, enhancing durability for continuous operation in public and high-traffic spaces.

10-point PCAP Touch Screen
The TX-2202A 22” 10-point touch screen monitor adopts PCAP touch technology with a 10-point multi-touch capability that is unaffected by contamination, giving a fast, accurate, and responsive touch experience. These seamless touch senses are identical to those used in smartphones and tablets, even responsive to latex gloves.

Seamless Integration
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choices of the operating system you use.

Front IP65 Dust and Water Protection
This 22” 10-point touch screen monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.

DURABLE AND SCRATCH RESISTANT TOUCH SCREEN
For 24/7 operations in public settings, AG Neovo uses metal housing and 7H tempered glass displays to offer high durability and scratch resistance levels, all without compromising touch sensitivity.

ERGONOMIC MONITORS WITH FLEXIBLE MOUNTING

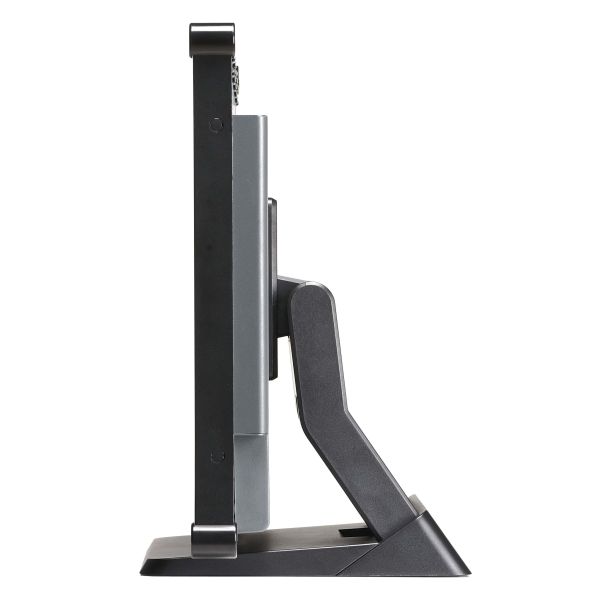

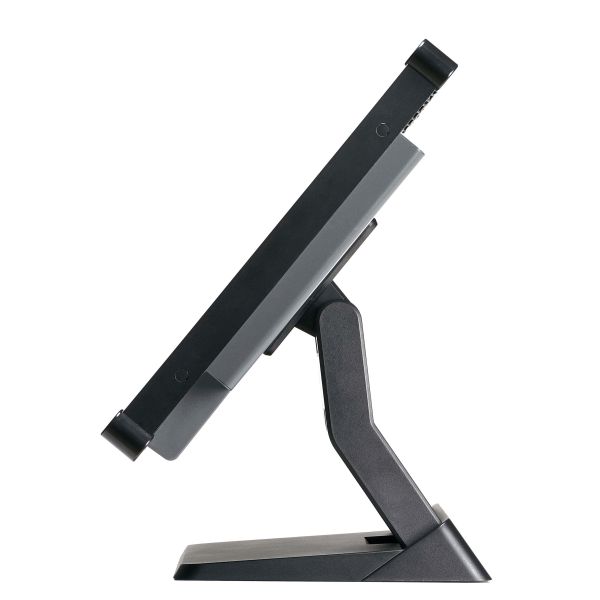

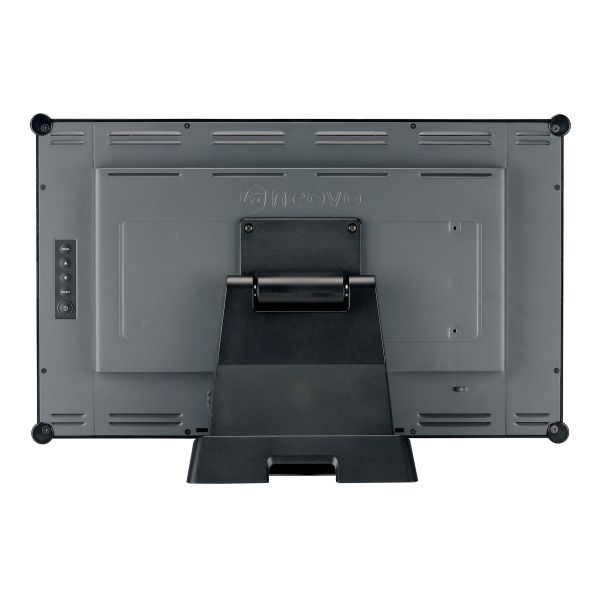

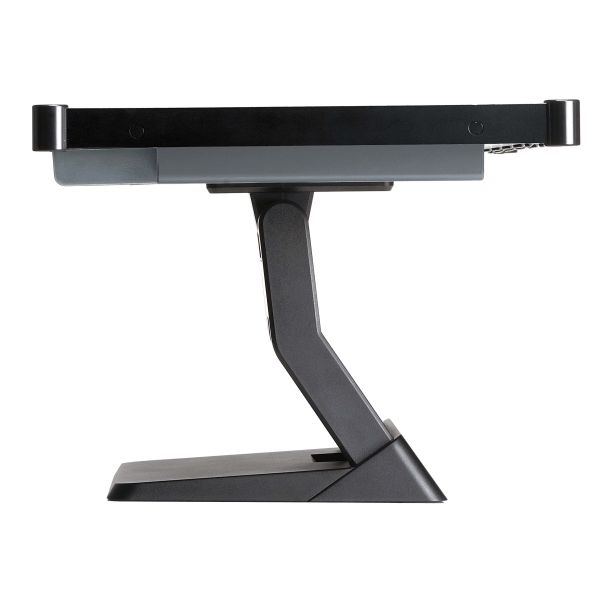

Thanks to VESA compatibility, the TX-2202A 22” 10-point touch screen monitor offers flexible mounting options, from desk mount to wall mount or attached to a monitor arm. The included ergonomic stand allows a huge -2 to 180 degrees of tilt adjustment, creating extra ergonomics when using. The display is 178-degrees wide viewing angles to provide consistent colour performance for better viewing.

Versatile Connectivity

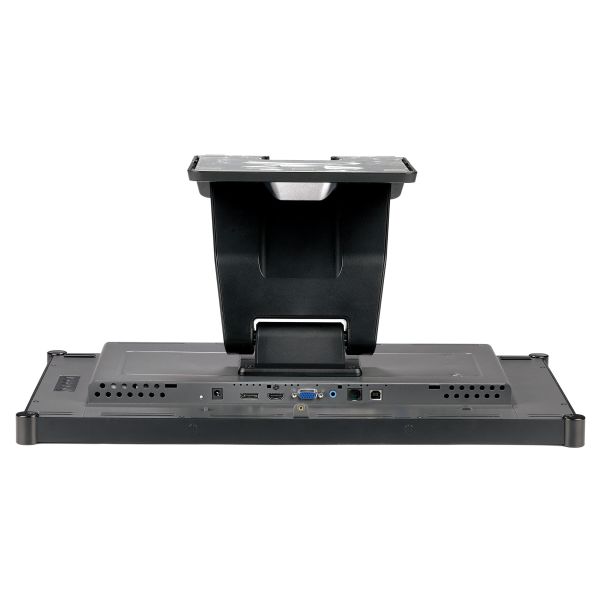

The TX-2202A provides maximum versatility and facilitates users to connect to their own devices, such as a high-performance PC or a media player, using the DisplayPort, HDMI or VGA inputs.
  • FHD 1920 x 1080 resolutions
  • 10-point projected capacitive touch technology
  • Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
  • Plug-and-play support for Windows 7/8/10/11, Linux 3.08, Android 3.08, Mac OS 10.11-10.14
  • Designed and developed for continuous 24/7 operation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
54,6 cm (21.5")
Resolutie*
1920 x 1080 Pixels
HD type*
Full HD
Oorspronkelijke beeldverhouding*
16:9
Display technologie*
LCD
Soort paneel*
VA
Touchscreen*
Ja
Touchscreen technologie
Capacitief
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Helderheid (typisch)
250 cd/m²
Responstijd
5 ms
Antireflectiescherm
Ja
Beeldscherm vorm*
Flat
Typische contrastverhouding*
1000:1
Kijkhoek, horizontaal
178°
Kijkhoek, verticaal
178°
Beeldscherm, aantal kleuren*
16,7 miljoen kleuren
Pixel pitch
0,248 x 0,248 mm
Frequentiebereik horizontaal
30 - 84 kHz
Frequentiebereik verticaal
50 - 76 Hz
Waasniveau
25 procent
Hardheid oppervlak
7H

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee
Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Ondersteunt Mac-besturingssysteem
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Andere ondersteundende systemen
Android

Multimedia

Ingebouwde luidsprekers*
Ja
Ingebouwde camera*
Nee
Aantal luidsprekers
2
Gemiddeld vermogen
4 W

Design

Markt positionering*
Kantoor
Kleur van het product*
Zwart
Materiaal behuizing
Metaal
Internationale veiligheidscode (IP)
IP65
Veiligheidsfunties
Stofafstotend, Waterbestendig
Glas dikheid
2,05 mm

Poorten & interfaces

Ingebouwde USB-hub*
Nee
Type USB-upstreampoort
USB Type-B
Aantal USB Type-B-upstreampoorten
1
VGA (D-Sub)poort(en)
1
HDMI*
Ja

Poorten & interfaces

Aantal HDMI-poorten
1
HDMI versie
1.4
Aantal DisplayPorts
1
Audio-ingangen
Ja
Hoofdtelefoon uit*
Nee

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm
Bereik kantelhoek
-5 - 90°

Energie

Energie-efficiëntieklasse (SDR)*
E
Energie-efficiëntieklasse (HDR)*
Niet beschikbaar
Energieverbruik (SDR) per 1000 uur*
15 kWu
Stroomverbruik (typisch)*
15 W
Stroomverbruik (in standby)*
0,7 W
Stroomverbruik (indien uit)
0,3 W
Soort voeding
Extern

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Inhoud van de verpakking

Meegeleverde kabels
AC, Audio, HDMI, USB, VGA
Stroomadapter inbegrepen
Ja
Snelstartgids
Ja

Gewicht en omvang

Breedte apparaat (met standaard)
528,6 mm
Diepte apparaat (met standaard)
214,2 mm
Hoogte apparaat (met standaard)
346,7 mm
Gewicht (met standaard)
6,7 kg
Breedte ( zonder voet )
52,9 cm
Diepte ( zonder voet )
4,85 cm
Hoogte (zonder voet )
32,4 cm
Gewicht (zonder voet)
4,8 kg

Verpakking

Breedte verpakking
610 mm
Diepte verpakking
320 mm
Hoogte verpakking
460 mm
Gewicht verpakking
9,8 kg

Duurzaamheid

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE

Overige specificaties

Bitrate
90%
