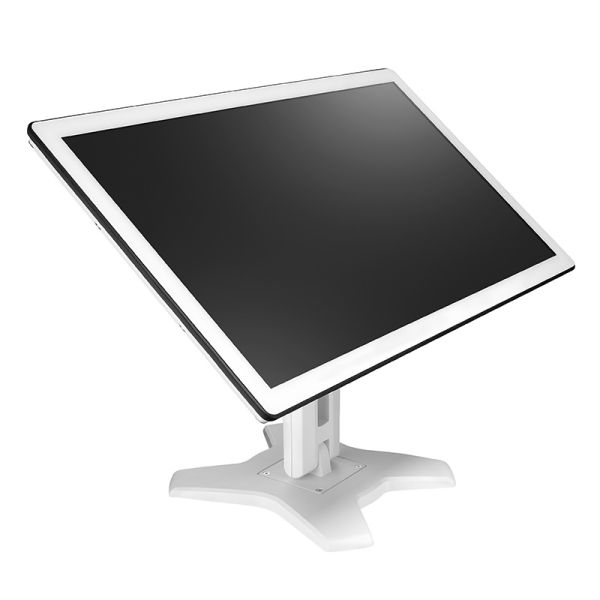

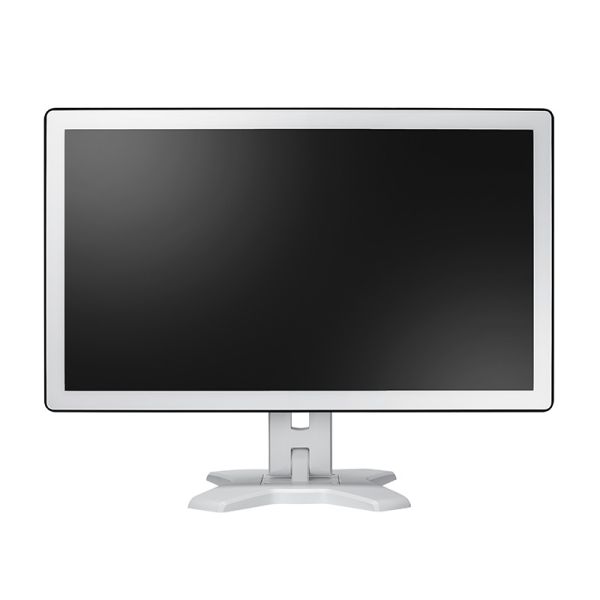

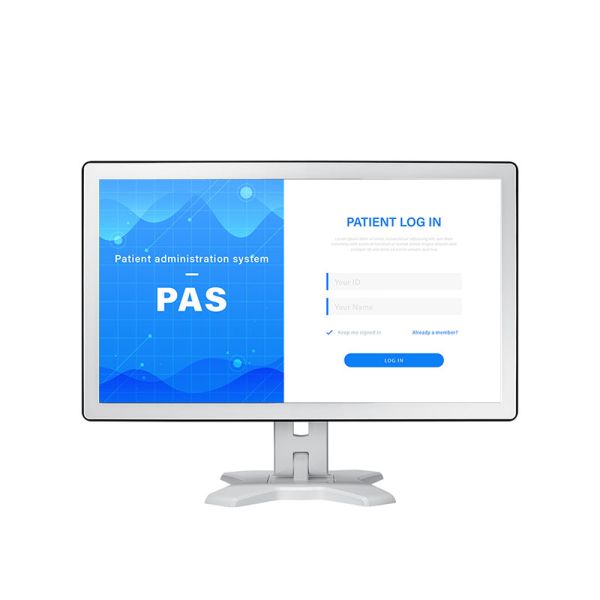

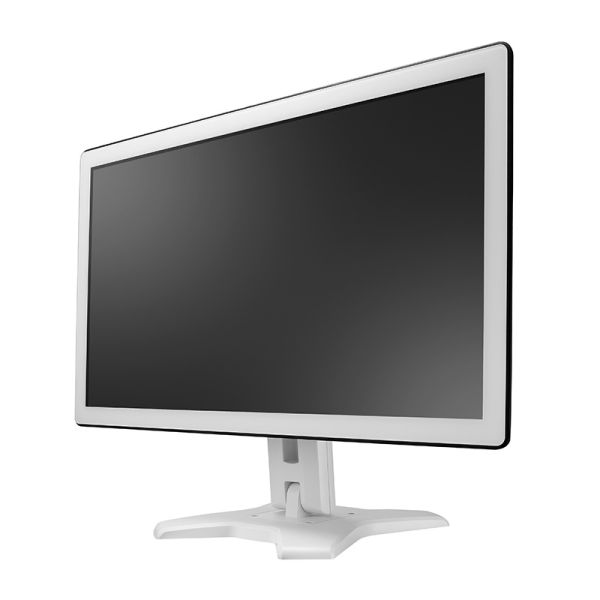

AG Neovo TX-2401 60,5 cm (23.8") 1920 x 1080 Pixels Full HD LED Touchscreen Tafelblad Wit

AG Neovo TX-2401, 60,5 cm (23.8"), 1920 x 1080 Pixels, Full HD, LED, 5 ms, Wit

Niet op voorraad

Fabrikant Neovo
MPN TX2410A1E0100
EAN 4710739597554
€ 1.162,00 excl. BTW

AG Neovo TX-2401 60,5 cm (23.8") 1920 x 1080 Pixels Full HD LED Touchscreen Tafelblad Wit

The TX-2401 White touch screen monitor adopts PCAP multi-touch technology that is relatively unaffected by surface contaminants and allows 10-point multi-touch capabilities, offering an accurate and responsive touch experience. It is even responsive to latex gloves. Featuring a medical-grade power supply and versatile connectivity (e.g., DisplayPort, HDMI, and VGA inputs), the TX-2401 White is built for flexible use, such as patient check-in, patient queue management, medical research laboratories, or medical computer carts. The monitor is complemented by front IP65 and IK08 ratings, white metal casing, and an edge-to-edge 7H tempered glass overlay, ensuring durability and easy cleaning for continuous operation in healthcare environments.

10-POINT PCAP TOUCH SCREEN
The TX-2401 White touch screen adopts PCAP touch technology with 10-point multi-touch capabilities that are unaffected by contamination, offering a fast, accurate, and responsive touch experience. The seamless touch experience is identical to that of smartphones and tablets, and is even responsive to latex gloves.

ENHANCED SAFETY WITH MEDICAL-GRADE POWER SUPPLY
Compliance with the IEC / EN 60601-1 standard power supply ensures the safety of your staff and patients in clinical settings, preventing electric shocks, as well as energy-related and heat-related hazards.

EASY TO MAINTAIN FOR NON-STOP USE
A commercial-grade panel, high-quality components and 7H scratch-resistant tempered glass screen ensure the display can be 24/7 constant used. Additionally, the screen is resistant to chemical disinfectants like alcohol for frequent cleaning.

FRONT IP65 DUST AND WATER PROTECTION
The TX-2401 White multi-touch monitor with a front-sided IP65 rating is designed to protect from dust and liquid spills, making it ideal for high-use public locations.

HIGH IMPACT-RESISTANT AGAINST VANDALISM
The touch display with an IK08 rating and metal casing prevents damage from impacts or acts of vandalism in high-traffic areas, ensuring a long service life.

MULTIPLE LAYOUTS FOR PUBLIC ACCESS

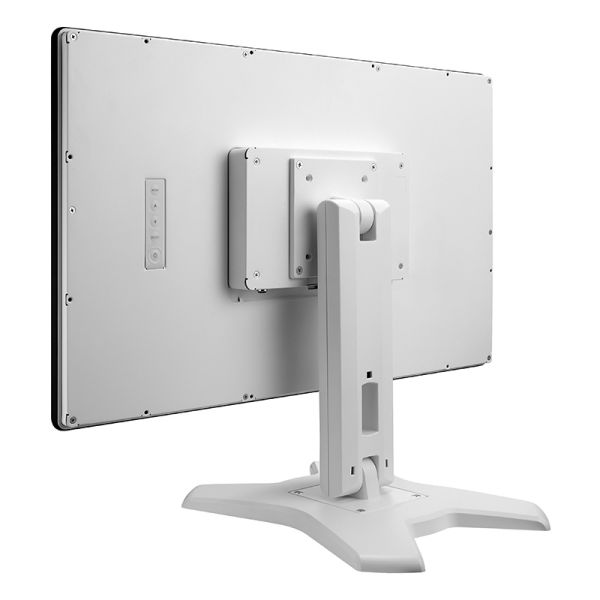

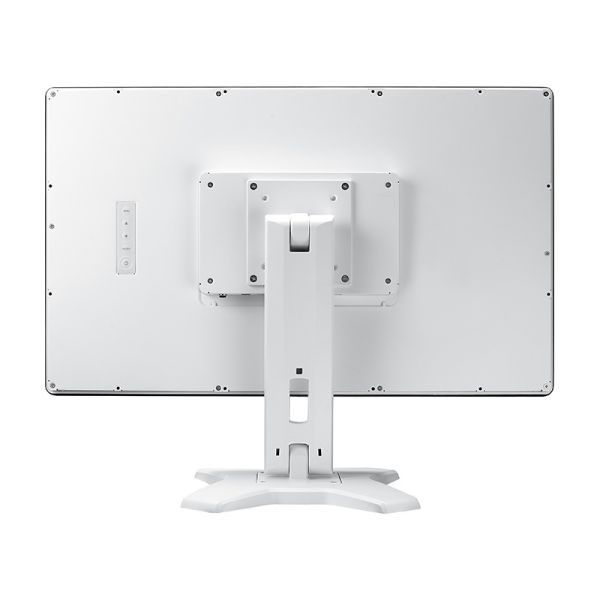

Thanks to VESA compatibility, the TX-2401 White offers flexible mounting options, such as desk mounting, attaching to a monitor arm, or integrating into a medical cart. The included ergonomic stand allows for a significant -2 to 180 degrees of tilt adjustment, facilitating additional flexibility when using. The display features 178 degrees of wide viewing angles to provide consistent colour performance for better viewing.

VERSATILE CONNECTIVITY
The TX-2401 White provides maximum versatility and enables users to connect to their own devices, such as a high-performance PC or media player, using the DisplayPort, HDMI, or VGA inputs.

CABLE MANAGEMENT
A specially designed monitor stand with integrated cable management keeps cables organized, prevents them from interfering when adjusting the screen up or down, and provides a clutter-free space.

SEAMLESS INTEGRATION
Touch support works with various operating systems, compatible with Windows, Linux, macOS, and certain Android versions. This enables more choice of the operating system you use.
  • FHD 1920 x 1080 resolutions
  • 10-point projected capacitive touch technology
  • Versatile connectivity: VGA, HDMI, DisplayPort signal inputs
  • Medical adapter certified to the IEC/EN 60601-1 medical design
  • Windows 10 ready – plug and play support for Windows 7/8/10
  • Designed and developed for continuous 24/7 operation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
60,5 cm (23.8")
Resolutie*
1920 x 1080 Pixels
HD type*
Full HD
Oorspronkelijke beeldverhouding*
16:9
Display technologie*
LED
Soort paneel*
VA
Touchscreen*
Ja
Touch screen type
Tafelblad
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Helderheid (typisch)
250 cd/m²
Responstijd
5 ms
Beeldscherm vorm*
Flat
Typische contrastverhouding*
3000:1
Kijkhoek, horizontaal
178°
Kijkhoek, verticaal
178°
Beeldscherm, aantal kleuren*
16,7 miljoen kleuren
Pixel pitch
0,274 x 0,274 mm
Digitale horizontale frequentie
30 - 84 kHz
Digitale verticale frequentie
56 - 76 Hz
Hardheid oppervlak
7H
RGB-kleurruimte
NTSC
NTSC-dekking (normaal)
72 procent

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Multimedia

Ingebouwde luidsprekers*
Nee
Ingebouwde camera*
Nee

Design

Markt positionering*
Medisch
Kleur van het product*
Wit
Afneembare standaard
Ja
Internationale veiligheidscode (IP)
IP65
Glas dikheid
3,3 mm

Poorten & interfaces

Ingebouwde USB-hub*
Nee
USB Touch port
Ja
Aantal USB Touch-poorten
1
VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1
HDMI versie
1.3
Aantal DisplayPorts
1

Poorten & interfaces

DisplayPort versie
1.2a
Hoofdtelefoon uit*
Ja
Hoofdtelefoonuitgangen
1
Type aansluitplug
3,5 mm

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm
Verbeterd kabelbeheer
Ja
Bevestigingsmogelijkheid voor kabelslot*
Ja
Kabelslot sleuf type
Kensington
In hoogte verstelbaar*
Nee
Bereik kantelhoek
-5 - 180°
kantel aanpassingen
Ja

Energie

Stroomverbruik (typisch)*
17 W
Stroomverbruik (in standby)*
0,4 W
Stroomverbruik (indien uit)
0,2 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 90 procent

Inhoud van de verpakking

Meegeleverde kabels
AC, HDMI, VGA, USB
Stroomadapter inbegrepen
Ja
Snelstartgids
Ja

Gewicht en omvang

Breedte apparaat (met standaard)
575,1 mm
Diepte apparaat (met standaard)
279,7 mm
Hoogte apparaat (met standaard)
451,3 mm
Gewicht (met standaard)
7,8 kg
Breedte ( zonder voet )
57,5 cm
Diepte ( zonder voet )
4,24 cm
Hoogte (zonder voet )
34,7 cm
Gewicht (zonder voet)
5,7 kg

Verpakking

Breedte verpakking
370 mm
Diepte verpakking
660 mm
Hoogte verpakking
530 mm
Gewicht verpakking
11,4 kg
Type verpakking
Doos

Duurzaamheid

Duurzaamheidscertificaten
RoHS, Low Voltage Directive (LVD), UKCA, WEEE, CE, REACH
