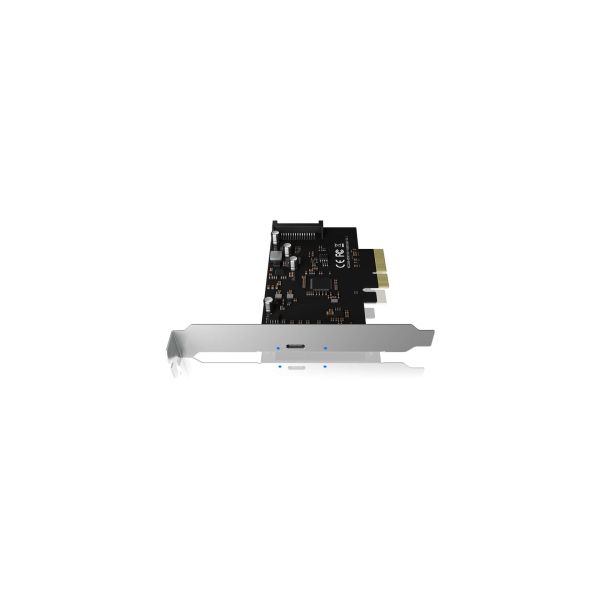

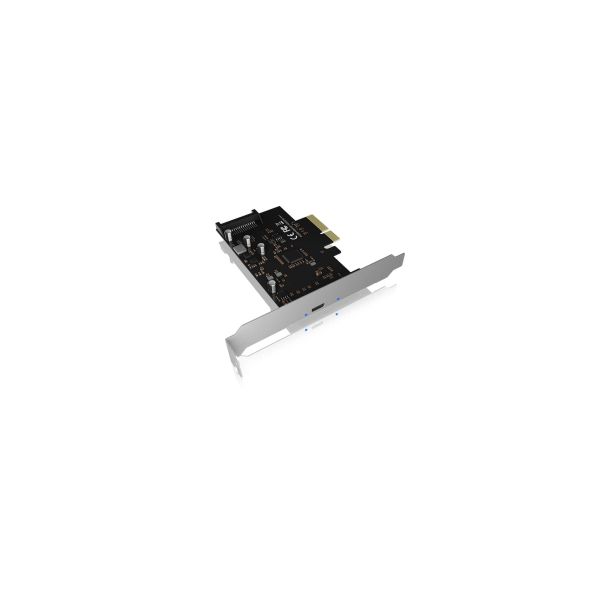

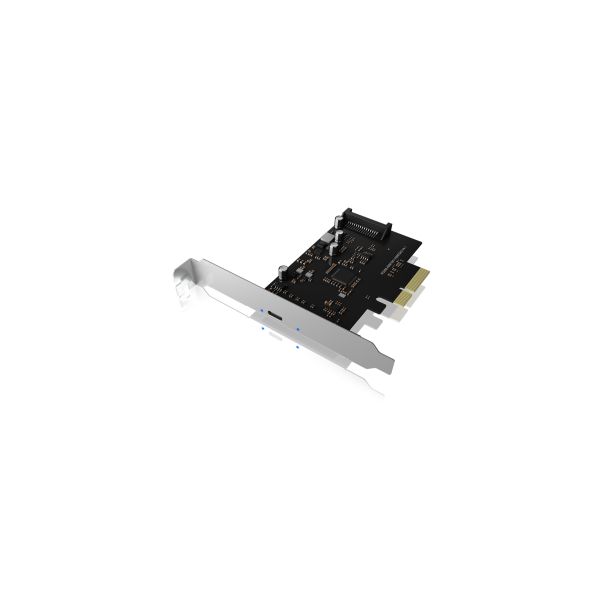

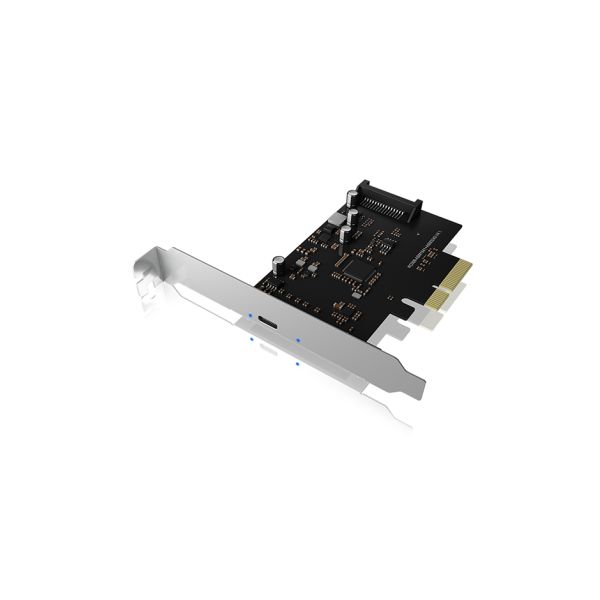

ICY BOX IB-PCI1901-C32 interfacekaart/-adapter Intern USB 3.2 Gen 2 (3.1 Gen 2)
ICY BOX IB-PCI1901-C32, PCIe, USB 3.2 Gen 2 (3.1 Gen 2), Man, PCIe 3.0, SATA 15-pin, Zwart
Ruim op voorraad
Fabrikant
RaidSonic
MPN
IB-PCI1901-C32
EAN
4250078170853
€ 74,00
excl. BTW
€ 74,00
excl. BTW
excl. BTW
ICY BOX IB-PCI1901-C32 interfacekaart/-adapter Intern USB 3.2 Gen 2 (3.1 Gen 2)
USB 3.2 (Gen 2x2)
The new IB-PCI1901-C32 expansion card supports USB 3.2 (Gen 2x2) for both AMD and Intel platforms and offers data transfer rates of up to 20 Gbit/s, which is double that of the previous generation. With the USB Type-C® connector design and backward compatibility with USB 2.0/3.0/3.1, the new expansion card offers a cost-effective way for users to upgrade to the USB 3.2 (Gen 2x2) specification.
High Quality
Also the IB-PCI1901-C32 follows the highest ICY BOX quality standards and uses the best available components. The new PCIe expansion card has been thoroughly tested and is ready for immediate use and delivers reliable performance at a reasonable price.
Perfect Symbiosis
USB 3.2 (Gen 2x2)-capable external enclosures are far from being a standard, but ICY BOX already has them and thus belongs to the pioneer of this technology! Be surprised by the incredible data transfer rates of the ICY BOX expansion card IB-PCI1901-C32 in combination with the IB-1916M-C32-NVMe enclosure solution!
The new IB-PCI1901-C32 expansion card supports USB 3.2 (Gen 2x2) for both AMD and Intel platforms and offers data transfer rates of up to 20 Gbit/s, which is double that of the previous generation. With the USB Type-C® connector design and backward compatibility with USB 2.0/3.0/3.1, the new expansion card offers a cost-effective way for users to upgrade to the USB 3.2 (Gen 2x2) specification.
High Quality
Also the IB-PCI1901-C32 follows the highest ICY BOX quality standards and uses the best available components. The new PCIe expansion card has been thoroughly tested and is ready for immediate use and delivers reliable performance at a reasonable price.
Perfect Symbiosis
USB 3.2 (Gen 2x2)-capable external enclosures are far from being a standard, but ICY BOX already has them and thus belongs to the pioneer of this technology! Be surprised by the incredible data transfer rates of the ICY BOX expansion card IB-PCI1901-C32 in combination with the IB-1916M-C32-NVMe enclosure solution!
- Expands your desktop PC to one more USB Type-C® 3.2 (Gen 2x2) port
- Supports USB data transfer rates of up to 20 Gbit/s
- PCI express base specification revision 3.0 (x4 lanes)
- Fits into PCIe x4, x8 or x16 slot
- Asmedia ASM3242 and ASM1541 USB 3.2 (Gen 2x2) controllers
- LED indicators indicate power and connection
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Hostinterface*
PCIe
Gastheerinterface geslacht
Man
Output interface*
USB 3.2 Gen 2 (3.1 Gen 2)
Uitbreidingskaartstandaard
PCIe 3.0
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
Type SATA-voedingsconnector
SATA 15-pin
Design
Intern*
Ja
Kleur van het product
Zwart
LED-indicatoren
Access, Stroom
Land van herkomst
China
Kenmerken
Data transfer snelheid (max)
20 Gbit/s
Minimale systeemeisen
Ondersteunt Windows
Ja
Gewicht en omvang
Breedte
19 mm
Diepte
105 mm
Hoogte
65 mm
Gewicht en omvang
Gewicht
43 g
Verpakking
Aantal
1

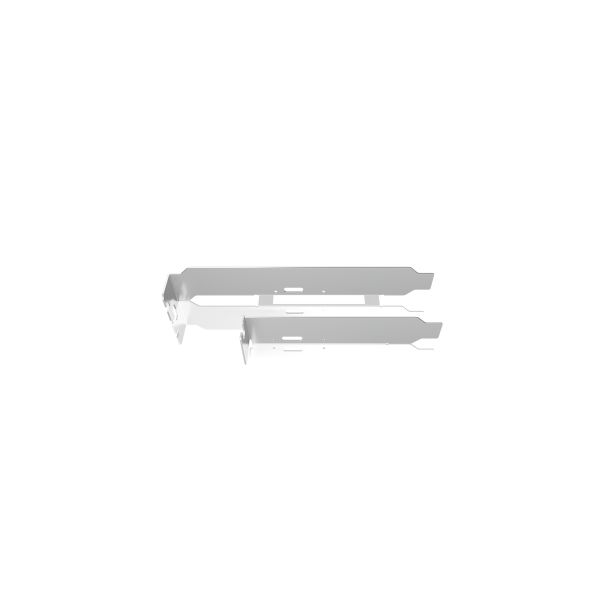

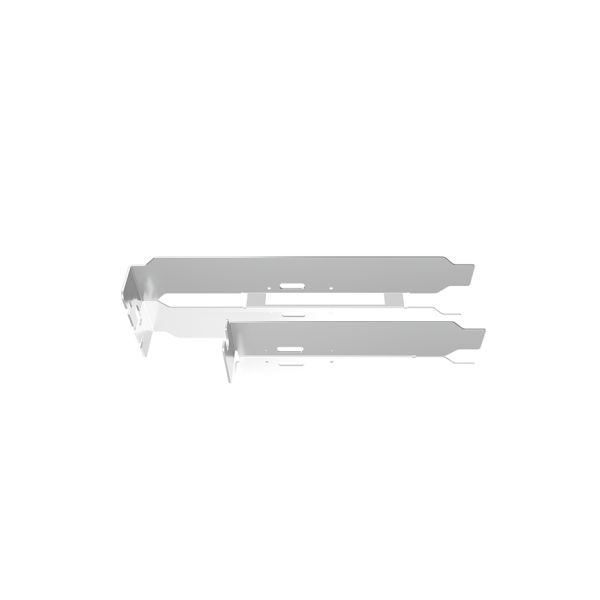

Inclusief schroeven
Ja
Gebruikershandleiding
Ja
Breedte verpakking
25 mm
Diepte verpakking
125 mm
Hoogte verpakking
130 mm
Gewicht verpakking
117 g
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
Hoeveelheid per (buitenste) hoofdverpakking
60 stuk(s)
(Buitenste) hoofdverpakking breedte
295 mm
(Buitenste) hoofdverpakking lengte
306 mm
(Buitenste) hoofdverpakking hoogte
397 mm
(Buitenste) hoofdverpakking brutogewicht
7,5 kg
Overige specificaties
Materiaal
Metaal, Kunststof
