ICY BOX IB-PCI214M2-HSL interfacekaart/-adapter Intern M.2

ICY BOX IB-PCI214M2-HSL, PCIe, M.2, PCIe 4.0, Zwart, Passief, China

Ruim op voorraad

Fabrikant RaidSonic
MPN IB-PCI214M2-HSL
EAN 4250078167242
€ 21,00 excl. BTW

ICY BOX IB-PCI214M2-HSL interfacekaart/-adapter Intern M.2

Future-proof expansion
With the PCI expansion card you can easily upgrade older systems to the new level. You can experience all the advantages of a fast M.2 SSD without having to rebuild the whole system again.

Customizable
The IB-PCI214M2-HSL contains both a full and a half profile cover. This means that it can be used in almost any type of housing without any problems. In addition, M.2 SSDs with the dimensions of 22x30/42/60/80 mm can be installed. No matter what configuration you need, the IB-PCI214M2-HSL gives full throttle in any setting.

Speed until the board glows

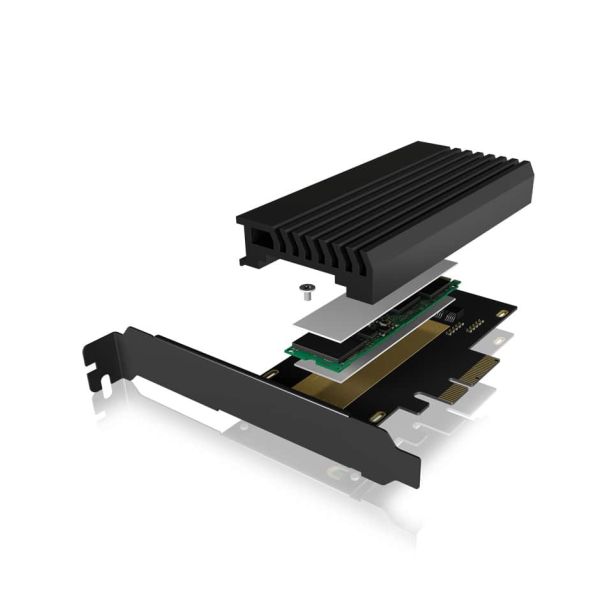

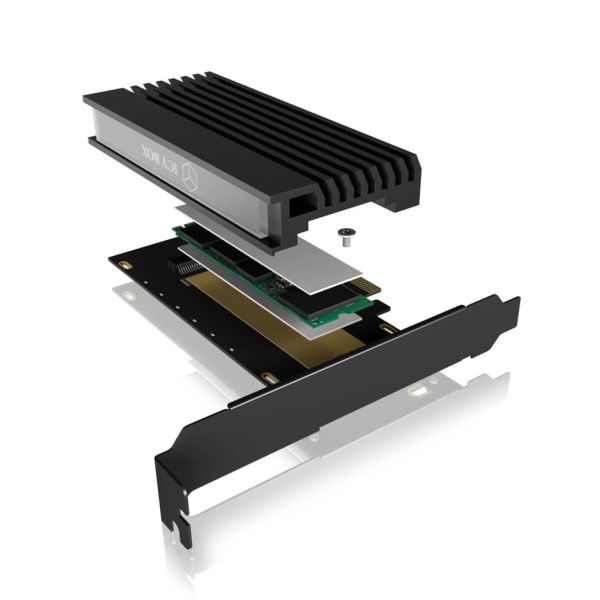

The current M.2 NVMe SSDs achieve more than five times the speed of traditional SATA SSDs. This enormous power naturally generates a lot of waste heat on the small M.2 cards. In order to protect the card and the system, the speed is throttled if the SSD heats up too much. The IB-PCI214M2-HSL offers enough cooling power with the enclosed heat conduction pads and the large heat sink so that you can enjoy the full power of your M.2 SSD at all times.

Power and design

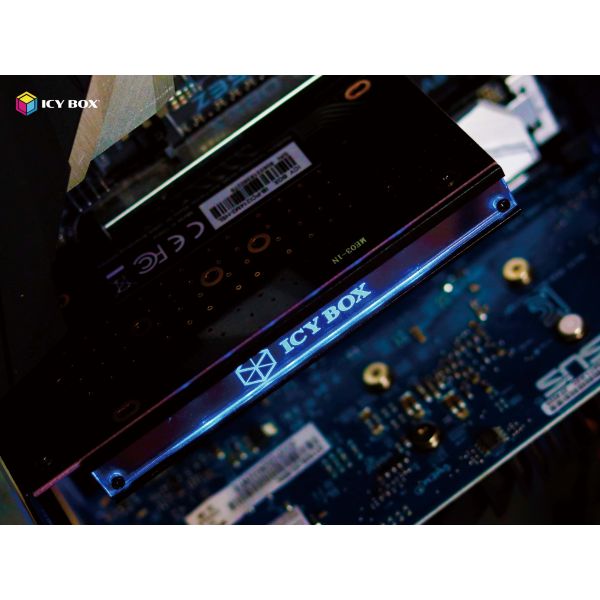

The massive heat sink is not only responsible for temperature control. The integrated acryl glass highlight is illuminated by LEDs and immerses the system in a rich blue tone.
  • PCIe 4.0 x4, up to 64 Gbit/s
  • Supports M.2 sizes of 22x30/42/60/80 mm
  • Optional full and half profile slot bracket
  • Including a massive heat sink with a blue LED highlight
  • Compatible with Windows® 10

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
M.2
Uitbreidingskaartstandaard
PCIe 4.0
NVMe
Ja
Aantal M.2 (M) slots
1

Design

Intern*
Ja
Kleur van het product
Zwart
Type koeling
Passief
LED-indicatoren
Ja
Land van herkomst
China

Kenmerken

Data transfer snelheid (max)
64 Gbit/s

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64

Technische details

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE

Gewicht en omvang

Breedte
115 mm

Gewicht en omvang

Diepte
16 mm
Hoogte
60 mm
Gewicht
23 g

Verpakking

Montagebeugels meegeleverd
Ja
Gebruikershandleiding
Ja
Breedte verpakking
155 mm
Diepte verpakking
28 mm
Hoogte verpakking
205 mm
Gewicht verpakking
300 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
Hoeveelheid per (buitenste) hoofdverpakking
40 stuk(s)
(Buitenste) hoofdverpakking breedte
330 mm
(Buitenste) hoofdverpakking lengte
500 mm
(Buitenste) hoofdverpakking hoogte
300 mm
(Buitenste) hoofdverpakking brutogewicht
12,1 kg

Overige specificaties

Materiaal
Metaal, Kunststof
