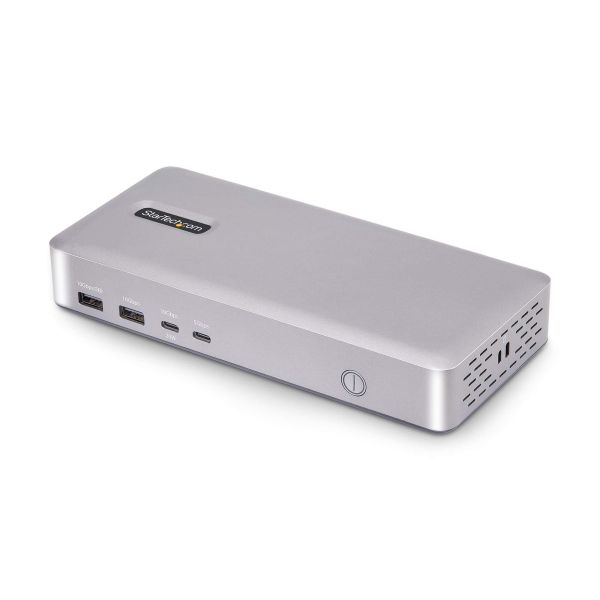

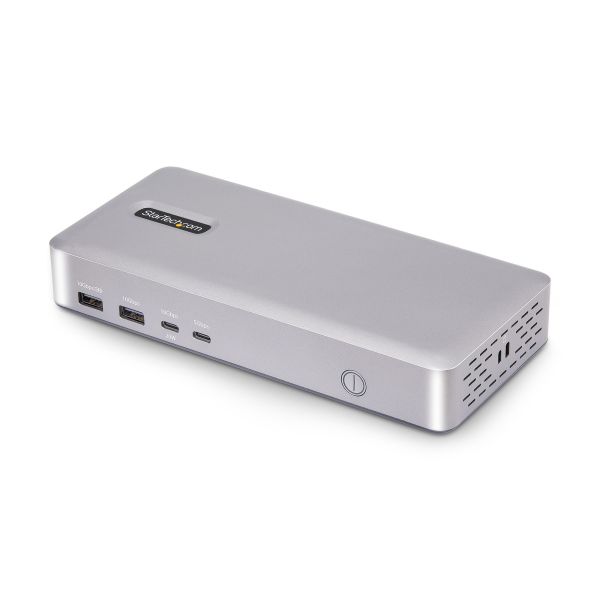

StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual HDMI Video, Tot 2x 4K 60Hz 4:4:4 (RGB) of 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD, Bedraad, USB4, 100 W, 10,100,1000,2500 Mbit/s, Zilver, 40 Gbit/s

Nog slechts 4 beschikbaar

Fabrikant StarTech
MPN 155UE-USB4-DOCK
EAN 0065030902878

StarTech.com USB4 Docking Station, USB-C 40Gbps, Dual HDMI Video, Tot 2x 4K 60Hz 4:4:4 (RGB) of 2x 4K 120Hz 4:2:2, Multi-Monitor Dock, 6x USB, 2.5GbE, 100W PD

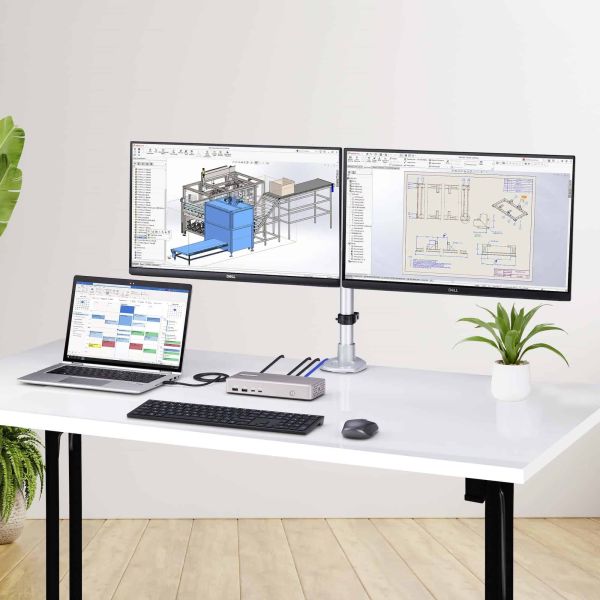

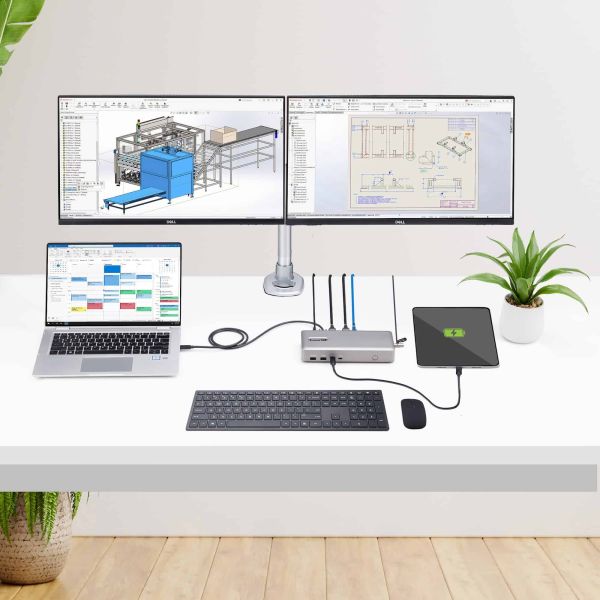

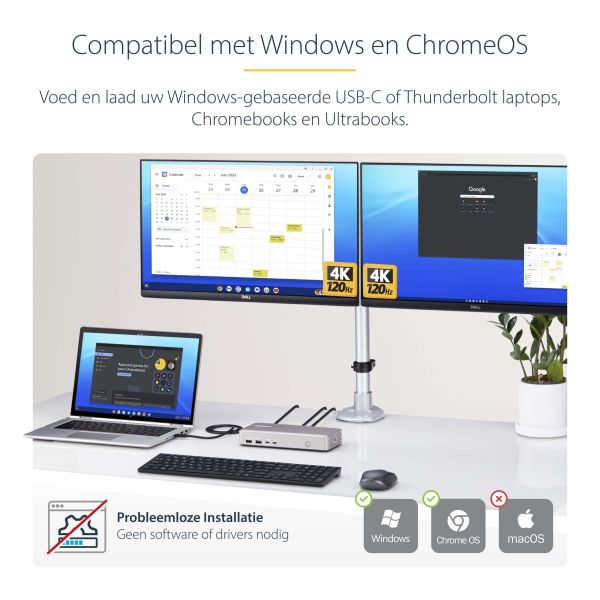

Creëer een dual monitor workstation met een USB4 uitgeruste laptop

The StarTech.com Advantage

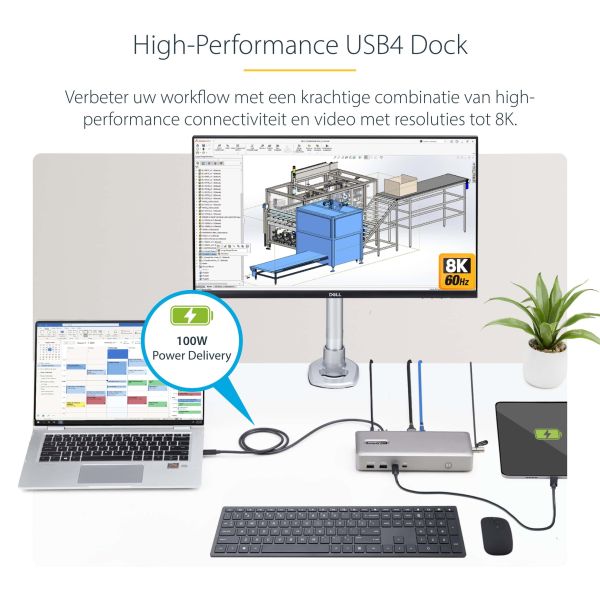

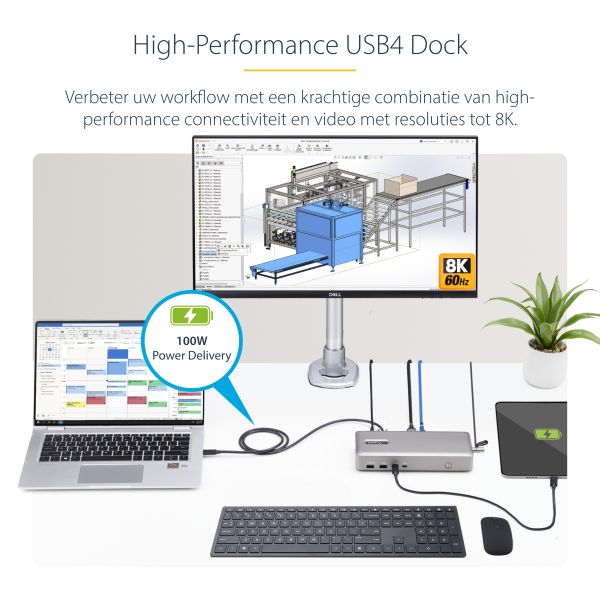

  • HIGH-PERFORMANCE USB4 DOCK: USB4 levert 40Gbps data transfer snelheden en hogere bandbreedte voor video, waardoor dit mobiele docking station een ideale oplossing is voor high-performance computing & het aansluiten van apparaten zonder zorgen

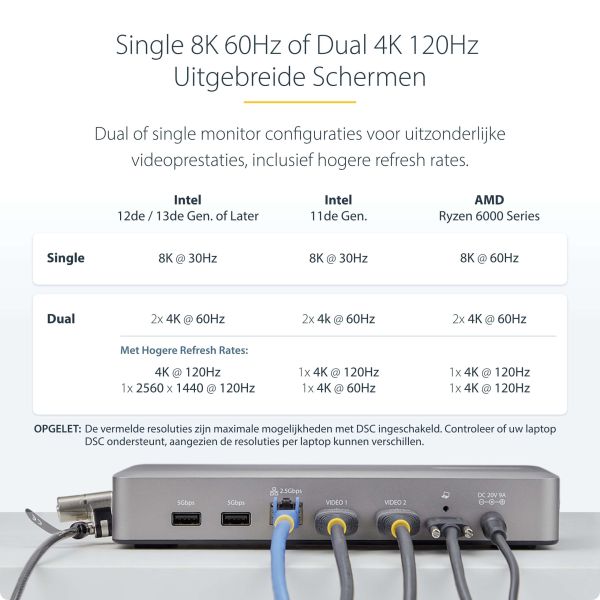

  • DUAL 4K 60Hz/120Hz VIDEO: 2x HDMI 2.1 poorten ondersteunen Dual 4K 60Hz, of Dual 4K 120Hz / Single 8K 60hz bij 4:2:2; Levert directe en optimale GPU-prestaties zonder software of compressie
  • COMPATIBILITEIT: Dock is compatibel met Windows 11 (x64 en ARM), Windows 10 en ChromeOS; Optimale prestaties met Thunderbolt 4 en USB4 laptops; Compatibel met Intel 12e Gen en later, Intel Core Ultra, AMD en Snapdragon X Co-Pilot+ PC's

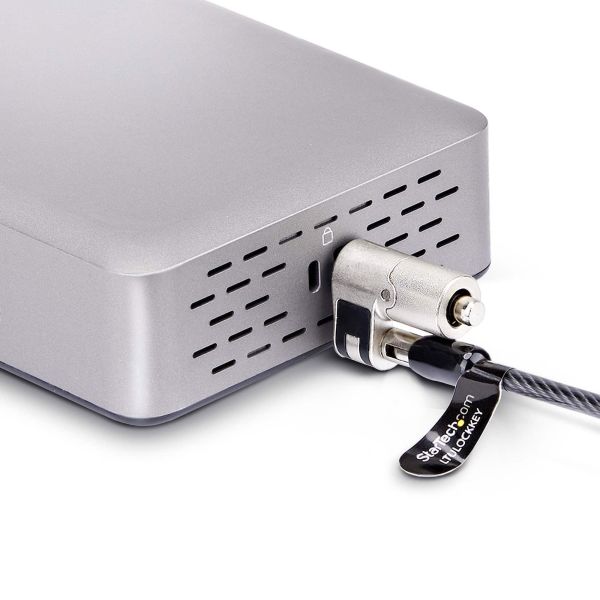

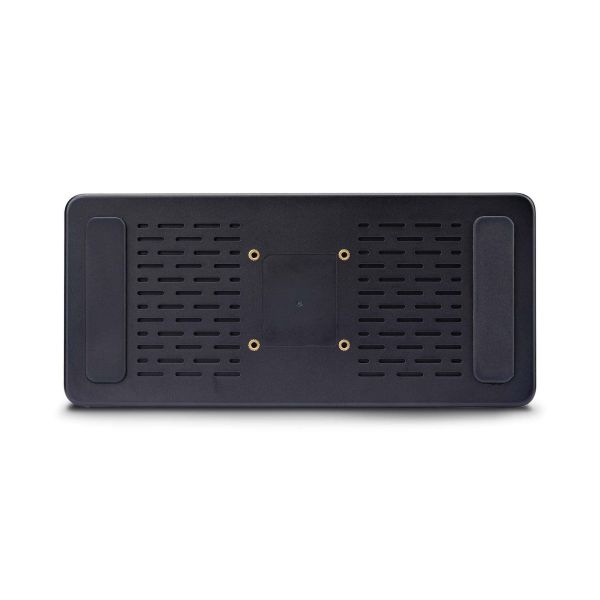

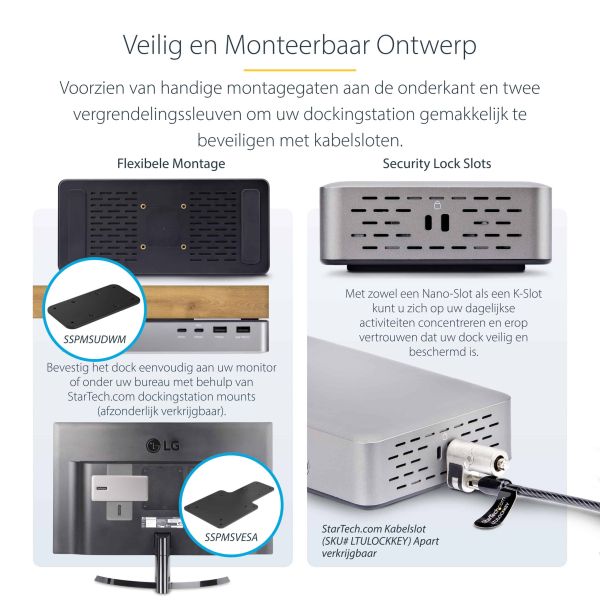

  • APPARAATBEVEILIGING: 1m USB-C vergrendelbare kabel voor hostpoort; Montagegaten beschikbaar voor optionele montagebeugel; K-slot & Nano-slots; USB Event Monitoring, Mac Address Pass-Through met meegeleverde Connectivity Tools softwaresuite

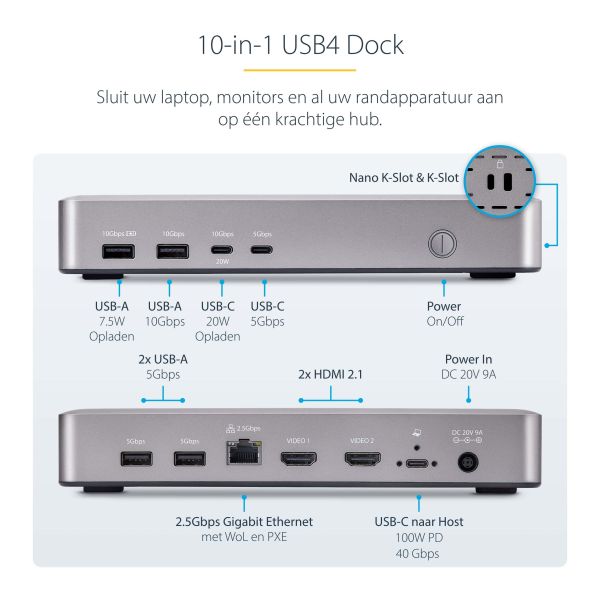

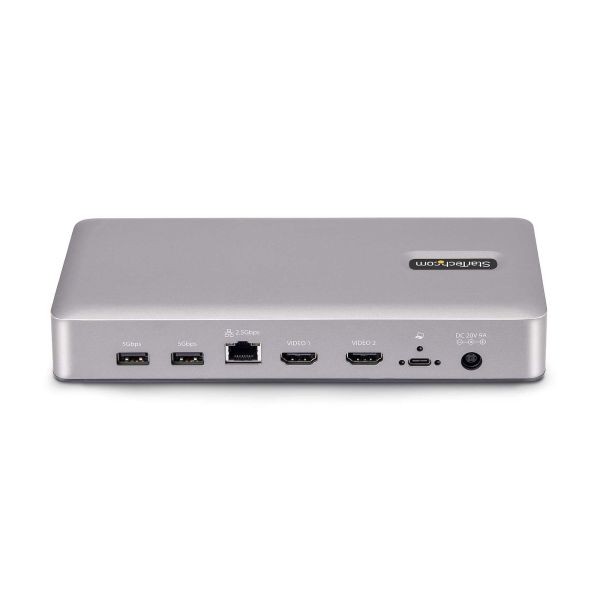

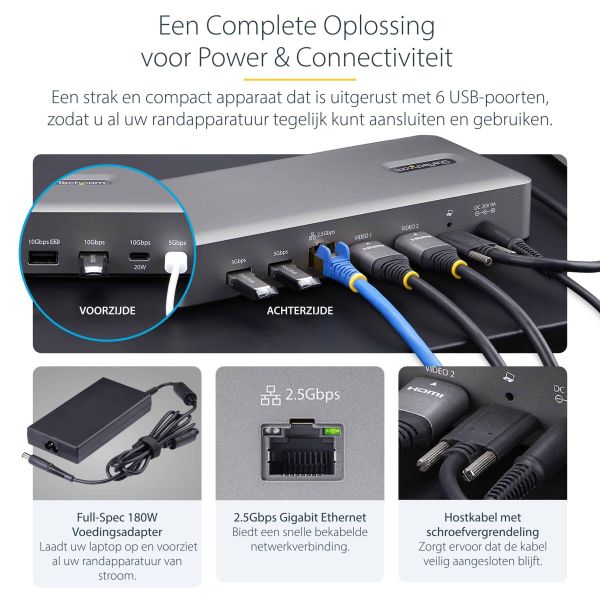

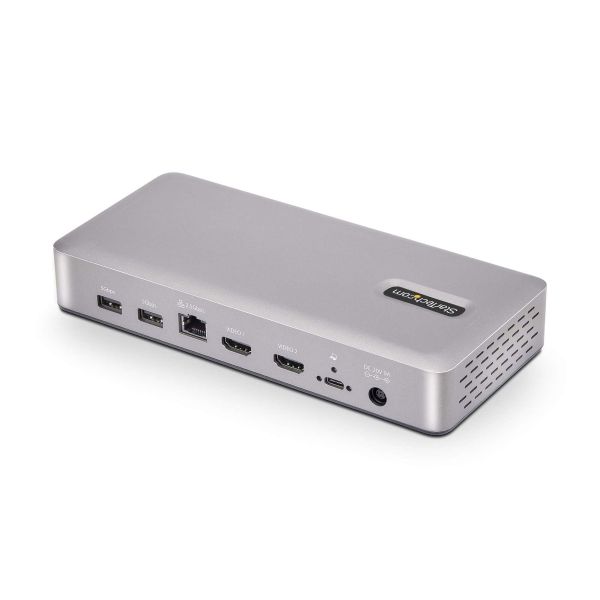

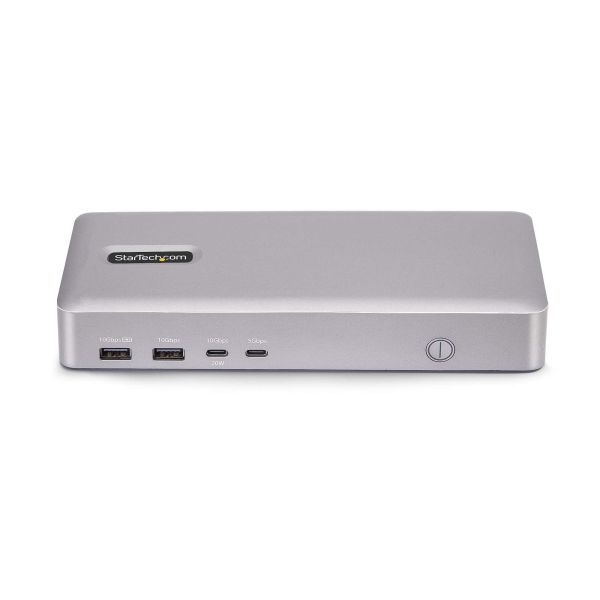

  • POORTEN: 6-port USB-hub (2x USA-A 10Gbps / 2x USB-A 5Gbps / 1x USB-C 10Gbps / 1x USB-C 5Gbps); 2,5Gb LAN (10/100/1000/2500Mbps, WoL/PXE); 180W power adapter voor opladen laptop (100W PD) & voeden van poorten; 1x 20W USB-C, 1x 7,5W USB-A

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
USB4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
1
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
USB Power Delivery
Ja
USB Power Delivery tot max.
100 W
Aantal HDMI-poorten*
2
Microfoon, line-in ingang*
Nee
Aansluiting voor netstroomadapter
Ja

Netwerk

Ethernet LAN*
Ja
Aantal Ethernet LAN (RJ-45)-poorten
1
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,2500 Mbit/s
Wake-on-LAN
Ja
Full duplex
Ja

Prestatie

Geïntegreerde geheugenkaartlezer*
Nee
Overdrachtssnelheid
40 Gbit/s
HD type
4K Ultra HD
Resolutie (maximum digitaal)
3840 x 2160 Pixels
Aantal displays ondersteund
2
Maximale refresh snelheid
120 Hz
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington, Nano
Kleur van het product*
Zilver
Aan/uitschakelaar
Ja
LED-indicatoren
Ja
UASP-ondersteuning
Ja
Materiaal behuizing
Kunststof

Energie

Type stroombron
DC
AC-ingangsspanning
100 - 240 V

Energie

Stroom
2.5 A
Spanning
20 V
Output current
9 A
Stroomverbruik (typisch)
165 W
Type stekker
Type M
Compatibele soorten stopcontacten
EU, UK

Software

Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Andere ondersteundende systemen
ChromeOS

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

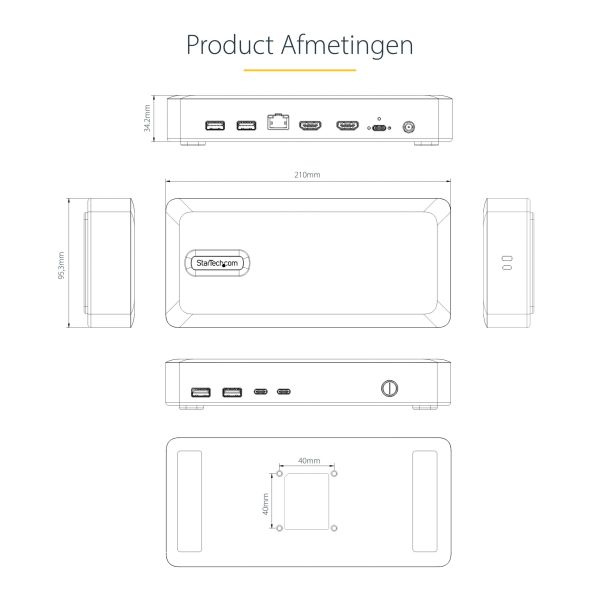

Gewicht en omvang

Breedte
210 mm
Diepte
95 mm
Hoogte
34 mm
Gewicht
138,6 g

Verpakking

Breedte verpakking
145 mm
Diepte verpakking
230 mm
Hoogte verpakking
89 mm
Gewicht verpakking
1,3 kg

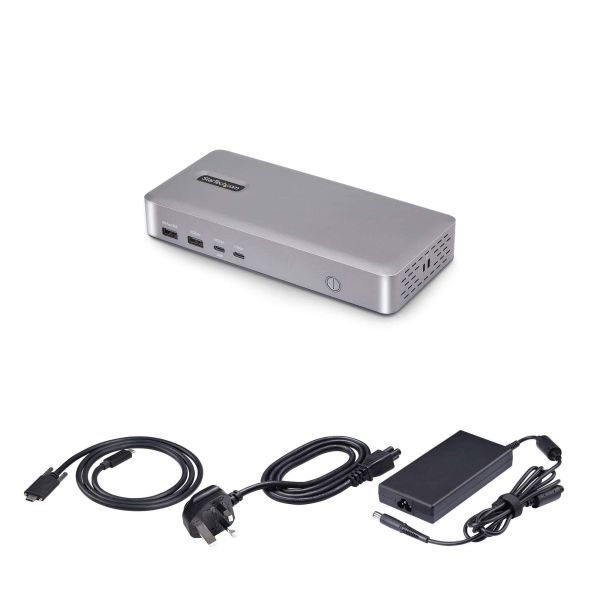

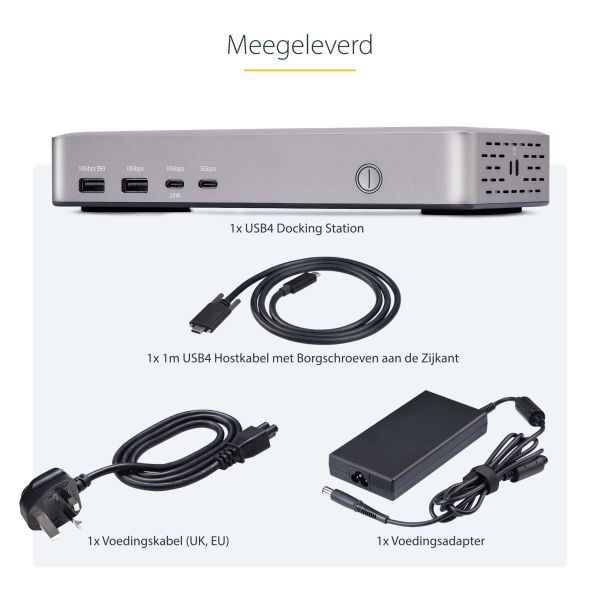

Inhoud van de verpakking

Meegeleverde kabels
USB
Snelstartgids
Ja

Logistieke gegevens

Hoeveelheid per (buitenste) hoofdverpakking
8 stuk(s)
(Buitenste) hoofdverpakking breedte
305 mm
(Buitenste) hoofdverpakking lengte
375 mm
(Buitenste) hoofdverpakking hoogte
265 mm

Overige specificaties

Chipset
VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE
