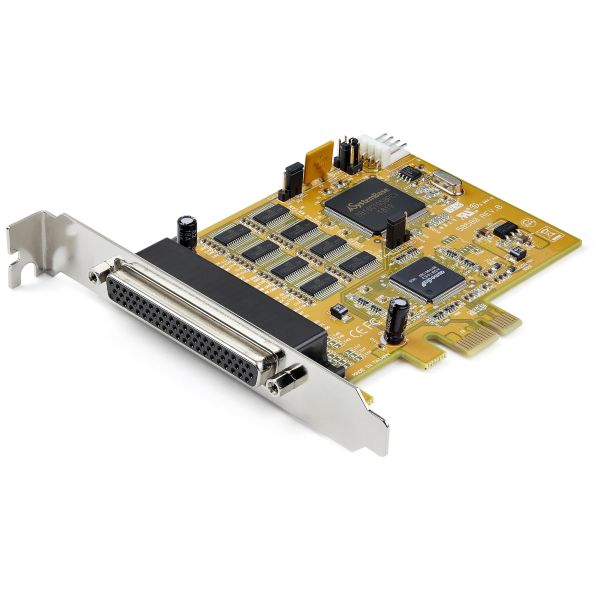

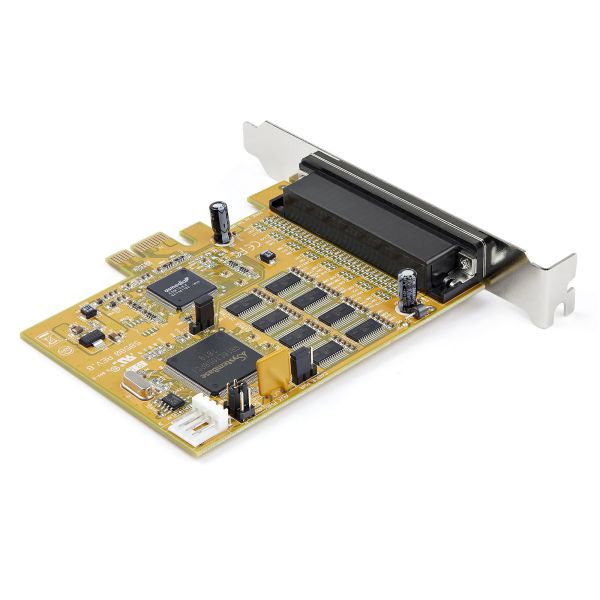

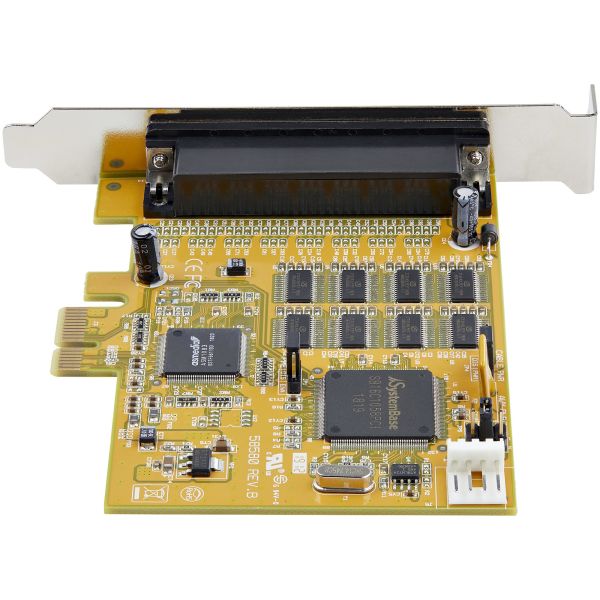

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Seriële Kaart - 16C1050 UART Expansion Serieel - Multiport Serial DB9 Uitbreidingskaart - 15kV ESD - Windows & Linux

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Seriële Kaart - 16C1050 UART Expansion Serieel - Multiport Serial DB9 Uitbreidingskaart - 15kV ESD - Windows & Linux, PCIe, Serie, RS-232, Geel, 0,5 m, 160013 uur

Nog 15 beschikbaar

Fabrikant StarTech
MPN PEX8S1050
EAN 0065030888295
€ 217,00 excl. BTW

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Seriële Kaart - 16C1050 UART Expansion Serieel - Multiport Serial DB9 Uitbreidingskaart - 15kV ESD - Windows & Linux

8-Port | PCI-Express | DB9 | RS-232 | 16C1050 UART | 15kV ESD Protection

The StarTech.com Advantage
  • 8 PORT SERIËLE KAART: Seriële controller kaart met 16C1050 UART gebaseerd op de Systembase SB16C1058PCI, 15kV ESD, 8x DB9 poorten, bidirectionele RS232 snelheden tot 921.6Kbps per poort & 256 byte FIFO buffer; Upgrade voor onze populaire PEX8S952 kaart

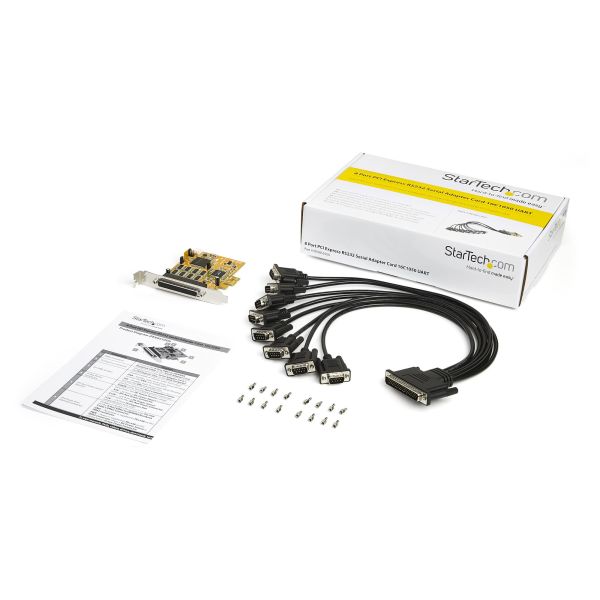

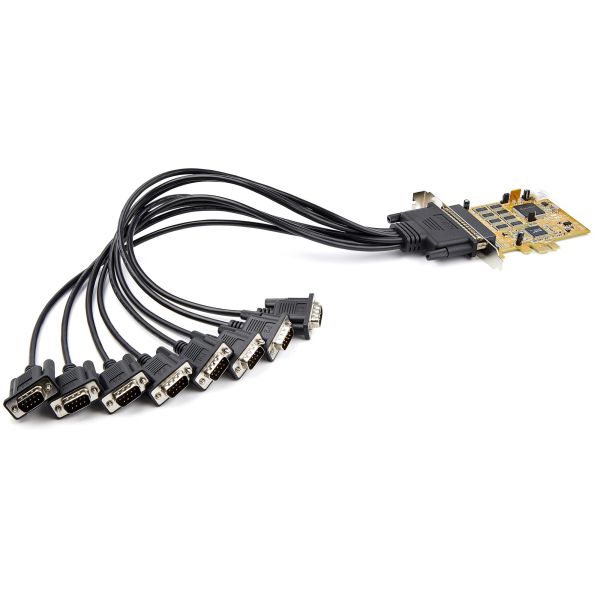

  • OPTIONEEL CONFIGUREERBARE VOEDING: Multiport seriële kaart biedt 12v/5v op pin 9 (max. 3A); 48 cm DB62 naar 8x DB9 break-out kabel; Incl. zeskantmoeren voor opt. schroef/moer DB9 interface
  • ENKEL WINDOWS: Full profile PCI-e 1x kaart en is volledig conform met PCI Express basisspecificaties, Revisie 1.0a/1.1; Ondersteunt Windows (incl. XP en hoger) en Windows Server (2003 en hoger); Voor standard profile desktop/servers
  • VEELZIJDIGE TOEPASSINGEN: PCI Express RS232 seriële adapterkaart voor PoS terminals, PLC's, besturing/automatisering in fabrieken, wetenschappelijke sensoren, medische apparatuur, scanners, oscilloscopen
  • TECH SPECS: System Base SB16C1058PCI Chipset; 16C1050 UART compatibel; 8x 9-Pin D-Sub Poorten; Max Baud 921.6Kbps per poort; 256 Byte FIFO; Enkel Windows; None, Even, or Odd Parity Modi; 5/6/7/8 Data Bits; RS-232 Protocol; Standard Profile Beugel

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
Serie
Seriële poort(en)
8
Soort serieële aansluiting
RS-232

Design

Intern*
Ja
Kleur van het product
Geel
Maximum kabellengte
0,5 m
Mean time between failures (MTBF)
160013 uur

Kenmerken

Chipset
ASMedia - ASM1083, System Base - SB16C1058PCI
Baud snelheid
921,6 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5, 6, 7, 8
Stop bits
1, 1.5, 2
Parity bit
Even, Nee, ODD
Flow Control type
RTS/CTS, XON/XOFF

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Ondersteunt Linux
Ja

Minimale systeemeisen

Ondersteunde server operating systems
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Technische details

Certificaten van naleving
RoHS

Gewicht en omvang

Breedte
16 mm
Diepte
105 mm
Hoogte
120 mm
Gewicht
74 g

Verpakking

Meegeleverde kabels
Serie
Snelle installatiehandleiding
Ja
Breedte verpakking
190 mm
Diepte verpakking
290 mm
Hoogte verpakking
65 mm
Gewicht verpakking
672 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
Hoeveelheid per (buitenste) hoofdverpakking
14 stuk(s)
(Buitenste) hoofdverpakking breedte
400 mm
(Buitenste) hoofdverpakking lengte
510 mm
(Buitenste) hoofdverpakking hoogte
315 mm

Overige specificaties

Voldoet aan industriestandaarden
16C1050 UART
