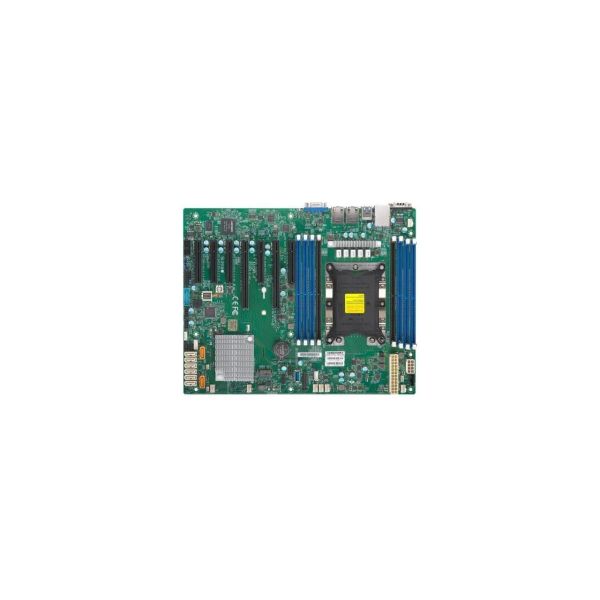

Supermicro X11SPL-F Intel® C621 ATX
Supermicro X11SPL-F, Intel, 165 W, DDR4-SDRAM, 2048 GB, 1.2 V, 1600,1866,2133,2400,2666 MHz
Nog 2 beschikbaar (bel voor reservering)
Fabrikant
Super Micro
MPN
MBD-X11SPL-F-B
EAN
0672042281565
€ 612,00
excl. BTW
€ 612,00
excl. BTW
excl. BTW
Supermicro X11SPL-F Intel® C621 ATX
Supermicro motherboard advantages:
Technologically-advanced Motherboard Designs Since 1993
Consistent highest-quality Design, Components, and Production Expertise
Extensive Range of x86 Serverboards Available
Competitive Price/Performance
High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Technologically-advanced Motherboard Designs Since 1993
Consistent highest-quality Design, Components, and Production Expertise
Extensive Range of x86 Serverboards Available
Competitive Price/Performance
High Performance Boards Supporting the Latest CPU, memory, and add-on Hardware
Standard Form Factors offer Feature - rich Support and application optimization
These competitive advantages help Supermicro maintain its design leadership in providing state-of-the-art motherboards for a wide range of applications. Always a step ahead of the competition, Supermicro is consistently first-to-market in delivering high-performance technology support. Offering the most extensive serverboard selection in the industry at competitive prices, Supermicro boards are quality-built to maximize customer satisfaction.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Processor
Processorfabrikant*
Intel
Processor aantal cores ondersteund
28
Processor thermaal vermogen (max)
165 W
Geheugen
Ondersteunde geheugen types*
DDR4-SDRAM
Geheugen voltage
1.2 V
Supported memory clock speeds
1600,1866,2133,2400,2666 MHz
Maximum intern geheugen*
2048 GB
Maximum UDIMM geheugen
256 GB
Opslag-controllers
Ondersteunde opslagstationinterfaces*
SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10
Grafisch
On-board graphics adapter model
Aspeed AST2500
Interne aansluitingen
USB 2.0 aansluitingen*
6
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
3
COM aansluitingen
1
Aansluitingen achterzijde
Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
2
VGA (D-Sub)poort(en)*
1
Aantal COM-poorten
1
Netwerk
Ethernet LAN
Ja
Ethernet interface type
Gigabit Ethernet
Netwerk
Wifi*
Nee
Kenmerken
Chipset moederbord*
Intel® C621
Component voor*
Server
Moederbord form factor*
ATX
BIOS
BIOS type*
UEFI AMI
ACPI version
6.0
Eisen aan de omgeving
Temperatuur bij opslag
-40 - 70 °C
Bedrijfstemperatuur (T-T)
0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
Gewicht en omvang
Breedte
304,8 mm
Diepte
243,8 mm
Inhoud van de verpakking
Meegeleverde software
Intel® Node Manager, IPMI2.0, KVM w/ dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog
Overige specificaties
PCI Express x4 (Gen 3.x) slots
1
PCI Express x8 (Gen 3.x) slots
6
Maximum LRDIMM geheugen
512 GB
Aantal DIMM sloten
8
Aantal ondersteunde processoren
1
