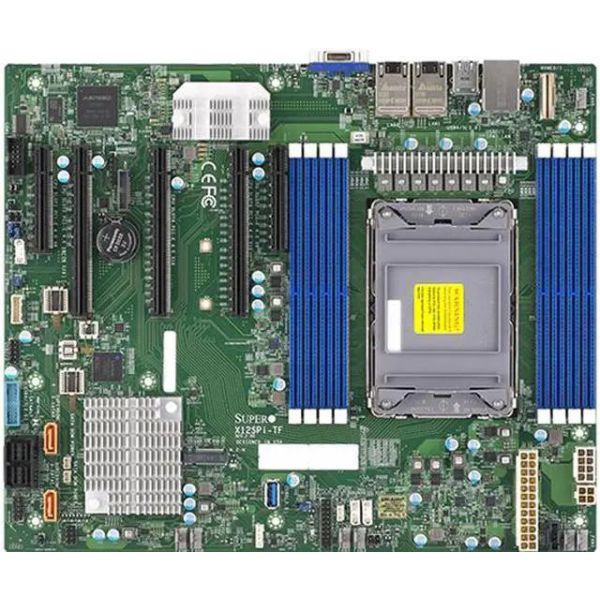

Supermicro MBD-X12SPI-TF moederbord Intel® C621 ATX

Supermicro MBD-X12SPI-TF, Intel, DDR4-SDRAM, 2000 GB, DIMM, 1.2 V, 3200 MHz

Nog 2 beschikbaar (bel voor reservering)

Fabrikant Super Micro
MPN MBD-X12SPI-TF-O
EAN 0672042400942
€ 987,00 excl. BTW

Supermicro MBD-X12SPI-TF moederbord Intel® C621 ATX

Super Micro Server MB Super Micro MBD-X12SPI-TF-O LGA 4189/ATX/2x10Gbs retail
  • 3rd Gen Intel® Xeon® Scalable processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  • Intel® C621A
  • Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB LRDIMM, DDR4-3200MHz
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
  • Dual LAN with 10GBase-T with Intel® X550
  • 2 PCI-E 4.0 x16
  • 2 PCI-E 4.0 x8
  • 1 PCI-E 4.0 x8 (in x16 slot)
  • 1 PCI-E 4.0 NVMe x8 Internal Port(s)
  • M.2 Interface: 1 SATA/PCI-E 3.0 x4
  • M.2 Form Factor: 2280/22110
  • M.2 Key: M-Key
  • Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
8
Geheugen slots type
DIMM
Geheugen voltage
1.2 V
Supported memory clock speeds
3200 MHz
Maximum intern geheugen*
2000 GB
Ondersteunde geheugenmodule capaciteiten
8GB, 16GB, 32GB, 64GB, 128GB
Maximum UDIMM geheugen
2000 GB

Opslag-controllers

Ondersteunde opslagstationinterfaces*
M.2, SATA
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Grafisch

Ingebouwde grafische adapter
Ja
Grafische adapter-familie
ASPEED

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
Aantal SATA III connectors*
10
TPM connector
Ja

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
3

Aansluitingen achterzijde

Aantal Ethernet LAN (RJ-45)-poorten*
2
VGA (D-Sub)poort(en)*
1
Seriële poort(en)
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet
LAN controller
Intel® X550

Kenmerken

Chipset moederbord*
Intel® C621
PC gezondheids monitor
LED, Temperatuur, Spanning
Component voor*
Server
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel

Uitbreidingsmodules

PCI Express x8 slots
3
PCI Express x16 (Gen 4.x) sleuven
2
Aantal M.2 (M) slots
1

BIOS

BIOS type*
UEFI AMI

Eisen aan de omgeving

Temperatuur bij opslag
-20 - 60 °C
Bedrijfstemperatuur (T-T)
0 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 85 procent
Luchtvochtigheid bij opslag
10 - 95 procent
