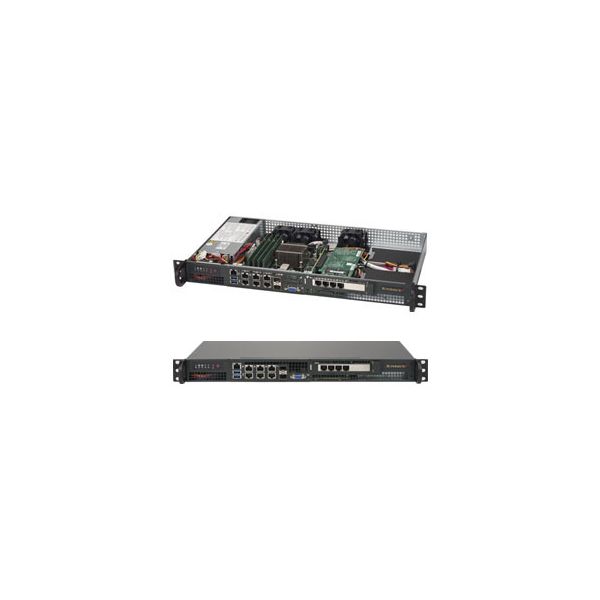

Supermicro 5018D-FN8T BGA 1667 Rack (1U) Zwart

Supermicro 5018D-FN8T, BGA 1667, Intel, 6 MB, Intel® Xeon®, D-1500, DDR4-SDRAM

Niet op voorraad

Fabrikant Super Micro
MPN SYS-5018D-FN8T
EAN 0672042222322
€ 862,00 excl. BTW

Supermicro 5018D-FN8T BGA 1667 Rack (1U) Zwart

Supermicro's systems based on the Intel® Xeon® processor D System-on-Chip are well-suited for Space-efficient, compact design, less than 10" depth, Best Performance per Watt, Fast to build and deploy.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processor socket*
BGA 1667
Processorfamilie
Intel
Aantal ondersteunde processoren*
1
Maximale cache
6 MB
Compatibele processors
Intel® Xeon®
Intel® Xeon series
D-1500

Geheugen

Aantal DIMM sloten*
4
Ondersteunde geheugen types*
DDR4-SDRAM
Ondersteunend DIMM module capaciteiten
4GB, 8GB, 16GB, 32GB
Maximum intern geheugen
128 GB
Maximum UDIMM geheugen
128 GB
Maximum UDIMM geheugen
64 GB
Ondersteunende RDIMM klok snelheden
1600,1866,2133 MHz
Geheugen voltage
1.2 V
ECC
Ja
Non-ECC
Ja

Opslagmedia

Aantal storage drives ondersteund*
4
Hot-swap HDD bays*
Nee
Opslagschijf afmetingen ondersteund
2.5,3.5"
Ondersteunde opslagstationinterfaces
SATA III

Grafisch

On-board graphics adapter model
Aspeed AST2400

Netwerk

Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,10000 Mbit/s
LAN controller
Intel I210, Intel® I350-AM4

Poorten & interfaces

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
Aantal Ethernet LAN (RJ-45)-poorten*
6
IPMI LAN (RJ-45) port
Ja
VGA (D-Sub)poort(en)
1
Aantal SATA III connectors
4

Uitbreidingsmodules

PCI Express x8 slots
1

Kenmerken

Trusted Platform Module (TPM)
Ja
Trusted Platform Module (TPM) version
1.2

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

BIOS

BIOS type
AMI
Grootte BIOS-geheugen
16 Mbit
ACPI version
5.0

Design

Type behuizing*
Rack (1U)
Kleur van het product
Zwart
LED-indicatoren
Ja
Aan/uitschakelaar
Ja
Aantal ventilatoren
1 ventilator(en)
Ventilator diameter
4 cm

Energie

Netvoeding*
200 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
2.6 A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 35 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
437 mm
Diepte
249 mm
Hoogte
43 mm
Gewicht
3,63 kg
