Supermicro SYS-510P-WTR server Rack (1U) Intel® Xeon® 3000 reeks DDR4-SDRAM 500 W

Supermicro SYS-510P-WTR, DDR4-SDRAM, 500 W, Rack (1U)

Niet op voorraad

Fabrikant Super Micro
MPN SYS-510P-WTR
EAN 0672042421473
€ 1.518,00 excl. BTW

Supermicro SYS-510P-WTR server Rack (1U) Intel® Xeon® 3000 reeks DDR4-SDRAM 500 W

Super Micro Server BAB Super Micro SYS-510P-WTR
  • Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors. Up to 270W TDP
  • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
  • 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
  • Intel Ethernet Controller X550 2x 10GbE RJ45

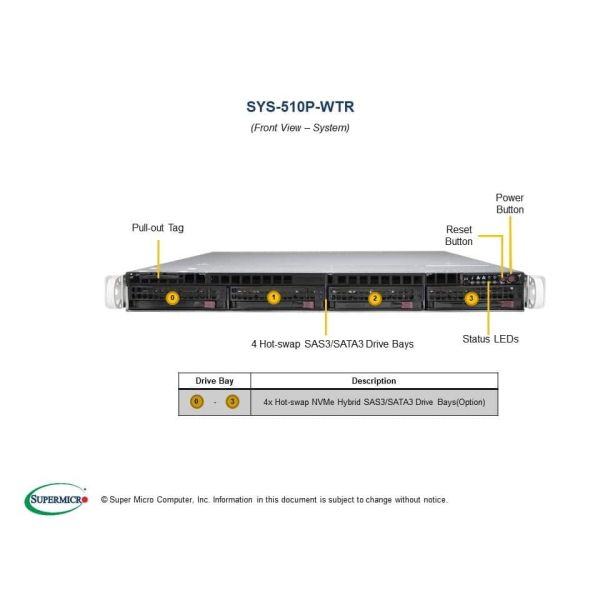

  • 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
  • Redundant Platinum 500W Power Supply

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Xeon® 3000 reeks
Chipset moederbord
Intel® C621
Intelligent Platform Management Interface (IPMI) support
Ja

Geheugen

Intern geheugentype*
DDR4-SDRAM
Geheugenslots
8
ECC
Ja
Kloksnelheid geheugen
3200 MHz
Maximum intern geheugen*
3000 GB

Opslagmedia

SSD interfaces
NVMe, SATA III
NVMe
Ja
SSD-formaat
3.5"
Ondersteunde SSD-groottes
3.5"
Aantal ondersteunde SSD's
4
RAID support*
Ja
Soorten RAID
0, 1, 5, 10
Hot-swap
Ja
Soort optische drive*
Nee

Grafisch

Ingebouwde grafische adapter
Ja

Netwerk

Wifi
Nee
LAN controller
Intel® X550
Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
3
Aantal USB 2.0-poorten
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
5
VGA (D-Sub)poort(en)
1
Seriële poort(en)
2

Uitbreidingsmodules

PCI Express x16 slots
3

Design

Type behuizing*
Rack (1U)
Kleur van het product
Zwart
Rack-montage
Ja

Prestatie

BIOS type
EEPROM
Trusted Platform Module (TPM)
Nee

Software

Inclusief besturingssysteem*
Nee

Energie

Redundante voeding*
Ja
Netvoeding*
500 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 35 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Certificaten

Certificering
80 PLUS Platinum Level

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

Gewicht en omvang

Breedte
437 mm
Diepte
650 mm
Hoogte
43 mm
Gewicht
10,9 kg
Breedte verpakking
596,9 mm
Diepte verpakking
856 mm
Hoogte verpakking
215,9 mm
Gewicht verpakking
21,8 kg
