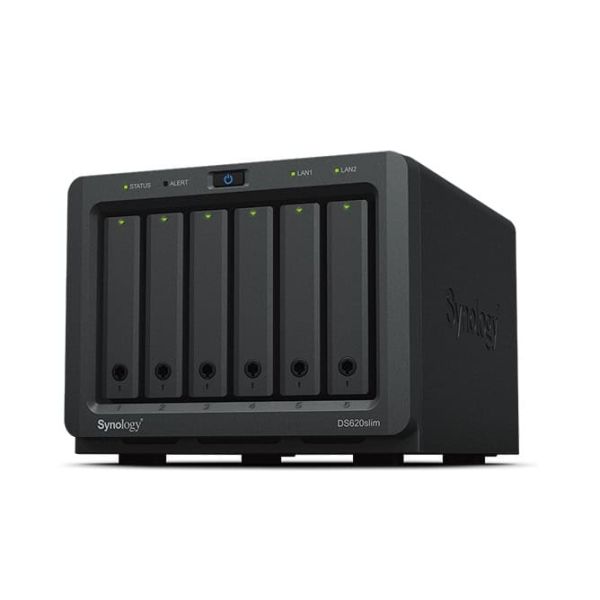

Synology DiskStation DS620SLIM data-opslag-server NAS Desktop Ethernet LAN Zwart J3355

Synology DiskStation DS620SLIM, NAS, Desktop, Intel® Celeron®, J3355, 108 TB, Zwart

Ruim op voorraad

Fabrikant Synology
MPN DS620SLIM
EAN 4711174723164
€ 446,00 excl. BTW

Synology DiskStation DS620SLIM data-opslag-server NAS Desktop Ethernet LAN Zwart J3355

Mini Private Server Combining Performance and Style

DS620slim is a mini 6-bay NAS with a stylish chassis design, perfectly blending in modern workplaces or apartments. Supporting near-instantaneous snapshot technology and real-time 4K video transcoding, DS620slim is an all-around file management solution that fulfills professionals’ needs of advanced data protection and high-quality media streaming.

Remain classic while shrinking footprint
The mini 6-bay design keeps DS620slim classic and saves deployment space. With six 2.5" drive support, DS620slim is able to boost performance by installing SSDs.

Compact Design
Mini design with the dimensions of 121 x 151 x 175 mm, flexible to fit in anywhere

RAID Flexibility
Flexible in a variety of RAID configurations to realize maximum 30TB raw capacity or better data protection with RAID 5/6/10

SSD Cache Support
Further enhance storage performance with SSD read/write cache while still having abundant drive bays for data storage

Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:
Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
File or folder level data restoration makes data recovery fast and flexible
Automatic file self-healing detects and recovers corrupted files without user intervention
Learn more about the benefits of using Btrfs

Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS620slim supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

Synchronize files across your devices
Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space.

4K Multimedia Server
Access and stream your 4K media content anytime and anywhere. DS620slim supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on the fly on other computers, smartphones, and media players that originally do not support Ultra HD formats.
  • Mini-sized yet powerful 6-bay NAS, ready to
  • maximize your work productivity
  • 6 drive bays with better RAID flexibility to configure
  • 2.5” HDDs and SSDs
  • 2GB DDR3L memory, expandable up to 6GB
  • Over 220 MB/s reading and 190 MB/s writing even
  • under encrypted data transmission1
  • Dual-channel H.265/H.264 4K video transcoding on the fly2
  • Advanced Btrfs file system, offering 65,000 systemwide snapshots and 1,024 snapshots per shared folder
  • Anywhere access with iOS and Android ready mobile apps

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Opslagmedia

Capaciteit opslag-drive*
3000 GB
Opslag schijf-interface*
SATA
Opslag schijfgrootte
2.5"
Opslagschijf afmetingen ondersteund
2.5"
Maximaal ondersteunde opslagcapaciteit
108 TB
RAID support*
Ja
Soorten RAID
0, 1, 5, 6, 10, JBOD
Hot-swap drive bays
Ja
Ondersteunde bestandsystemen
BTRFS, FAT, HFS+, NTFS, exFAT, ext3, ext4
Opslagdrives geïnstalleerd*
Nee
Totale geïnstalleerde opslagcapaciteit*
108 TB
Aantal storage drives ondersteund*
6
Geïnstalleerde opslag-drive*
Nee
Ondersteunde types opslag-drives*
HDD & SSD

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Celeron®
Processormodel*
J3355
Frequentie van processor*
2 GHz
Maximale turbofrequentie van processor
2,5 GHz
Aantal processorkernen
2
Processor aantal threads
2
Processor cache
2 MB
CPU configuratie (max)
1
PCI Express configuraties
1x2+2x1, 4x1
PCI Express slots versie
2.0
Processor cache type
Smart Cache
Processorcode
SR2Z8
Codenaam processor
Apollo Lake
Processor lithografie
14 nm
Processor operating modes
64-bit
Verpakkingsgrootte processor
24 x 31 mm
Processor socket
BGA 1296
Stepping
B1
Systeembus
5 GT/s
Tjunction
105 °C
Thermal Design Power (TDP)
10 W
On-board graphics adapter model
Intel® HD Graphics 500
Maximaal intern geheugen ondersteund door processor
8 GB
Conflictvrije processor
Ja

Geheugen

Intern geheugentype
DDR3L
Ondersteund maximum RAM
6 GB
Geheugenslots
2
Intern geheugen*
2 GB

Netwerk

Ethernet LAN*
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Wifi
Nee
iSCSI support
Ja
Wake-on-LAN
Ja
Ondersteunde netwerkprotocollen
CIFS, AFP, NFS, FTP, WebDAV

Poorten & interfaces

USB-poort*
Ja
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
2
Aantal eSATA-poorten
2
Aantal Ethernet LAN (RJ-45)-poorten*
2

Grafisch

Basisfrequentie ingebouwde grafische adapter
250 MHz
On-board grafische adapter burst frequentie
700 MHz
Maximaal geheugen ingebouwde grafische adapter
8 GB
Aantal displays ondersteund (door on-board grafische adapter)
3

Design

Type behuizing*
Desktop
Type koeling*
Actief
Kleur van het product
Zwart
Aantal ventilatoren
1 ventilator(en)
Ventilator diameter
8 cm
LED-indicatoren
Ja

Prestatie

Soort*
NAS
Apparaatklasse*
Kleine & middelgrote bedrijven
Backup-functie*
Ja

Prestatie

Ondersteunt meerdere talen
Ja
Aantal gebruikers
1000 gebruiker(s)
Geluidsniveau
20,5 dB

Software

Inclusief besturingssysteem*
DiskStation Manager

Energie

Vermogenstoevoer locatie
Ingebouwd
Capaciteit voedingsunit (PSU)
65 W
Aantal voedingen
1
Stroomverbruik (typisch)
34,88 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Gewicht en omvang

Breedte*
151 mm
Diepte*
175 mm
Hoogte*
121 mm
Gewicht
1,4 kg

Inhoud van de verpakking

Meegeleverde kabels
AC, LAN (RJ-45)
Snelstartgids
Ja

Processor speciale functies

Ingebouwde opties beschikbaar
Ja
Enhanced Intel SpeedStep Technology
Ja
Execute Disable Bit
Ja
Idle States
Ja
Intel® 64
Ja
Intel® Clear Video-technologie
Ja
Intel® Enhanced Halt State
Ja
Versie Intel® Identity Protection Technology
1,00
Intel® Rapid Storage Technology
Nee
Intel® Veilig opstarten
Ja
Versie Intel® Secure Boot Technology
1,00
Versie Intel® Secure Key Technology
1,00
Intel® Small Business Advantage (SBA)-versie
0,00
Intel® Smart Connect Technology
Nee
Versie Intel® Smart Connect Technology
0,00
Versie Intel® Smart Response Technology
0,00
Intel® Stable Image Platform Program (SIPP)
Nee
Versie Intel® Stable Image Platform Program (SIPP)
0,00
Intel® Trusted Execution Technology
Nee
Intel® Virtualization Technology (VT-x)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Anti-Theft Technology (Intel® AT)
Nee
Intel® Clear Video HD Technology (Intel® CVT HD)
Ja
Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID)
Ja
Intel® High Definition Audio (Intel® HD Audio)
Ja
Intel® Hyper Threading Technology (Intel® HT Technology)
Nee
Intel® Identity Protection Technology (Intel® IPT)
Ja
Intel® Insider™
Nee
Intel® InTru™ 3D Technology
Nee
Intel® OS Guard
Nee
Intel® Quick Sync Video Technology
Ja
Intel® Secure Key
Ja
Intel® Small Business Advantage (Intel® SBA)
Nee
Intel® Smart Response Technology
Nee
Intel® Turbo Boost Technology
Nee
Intel® Wireless Display (Intel® WiDi)
Nee
Maximaal aantal PCI Express-lijnen
6
Aantal verwerkingseenheden
12
Thermal Monitoring Technologies
Ja
UART
Ja
Geheugentypen ondersteund door processor
DDR3L, LPDDR3-SDRAM, LPDDR4-SDRAM

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Luchtvochtigheid bij opslag
5 - 95 procent

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

Overige specificaties

ARK ID processor
95597
