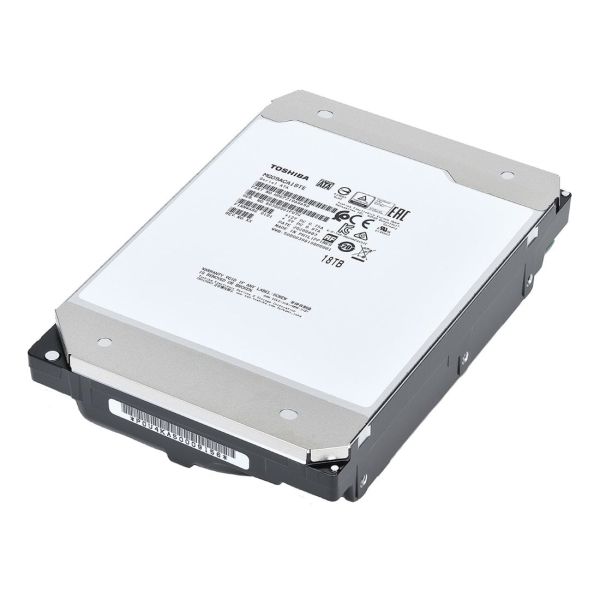

Toshiba MG09 3.5" 18000 GB SATA III

Toshiba MG09, 3.5", 18000 GB, 7200 RPM

Ruim op voorraad

Fabrikant Toshiba
MPN MG09ACA18TE
EAN 4260557511664
€ 304,00 excl. BTW

Toshiba MG09 3.5" 18000 GB SATA III

The MG09 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2TB per disk, achieving a total capacity of 18TB.The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
The massive 18TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0Gbit/s or a 12.0Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
  • Industry-leading 9-disk helium-sealed design for superior storage density
  • Industry Standard 3.5-inch 26.1mm height Form Factor
  • 7200rpm Performance
  • Choice of SATA 6.0Gbit/s and 12.0Gbit/s SAS Interfaces
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
  • Sustained transfer rate and power efficiency improvements vs. prior MG Series generations
  • Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

HDD omvang*
3.5"
HDD capaciteit*
18000 GB
HDD rotatiesnelheid*
7200 RPM
Interface*
SATA III
Soort*
HDD
Component voor*
NAS
Hot-swap*
Nee
Buffergrootte opslagstation
512 MB
Overdrachtsnelheid HDD-interface
6 Gbit/s
Permanente overdrachtsnelheid HDD
268 MiB/s
Advanced Format (AF)
Ja
24/7-werking
Ja
Start/stop-cycli
600000
Werkbelasting-gegevenssnelheidslimiet
550 TB/jaar
Geluidsniveau (buiten gebruik)
20 dB
Gemiddelde storingsinterval (MTTF)
2500000 uur

Energie

Stroomverbruik (typisch)
8,35 W
Stroomverbruik (idle)
4,16 W
Operating voltage
5 / 12 V

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
5 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Trillingen, in bedrijf
0,75 G
Trillingen bij opslag
3 G
Hoogte, in bedrijf
-305 - 3048 m
Hoogte bij opslag
-305 - 12192 m
Schokbestendigheid
70 G
Schokbestendigheid (buiten gebruik)
250 G

Gewicht en omvang

Breedte
101,8 mm
Hoogte
26,1 mm
Diepte
147 mm
Gewicht
720 g

Verpakking

Aantal
1

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717050
