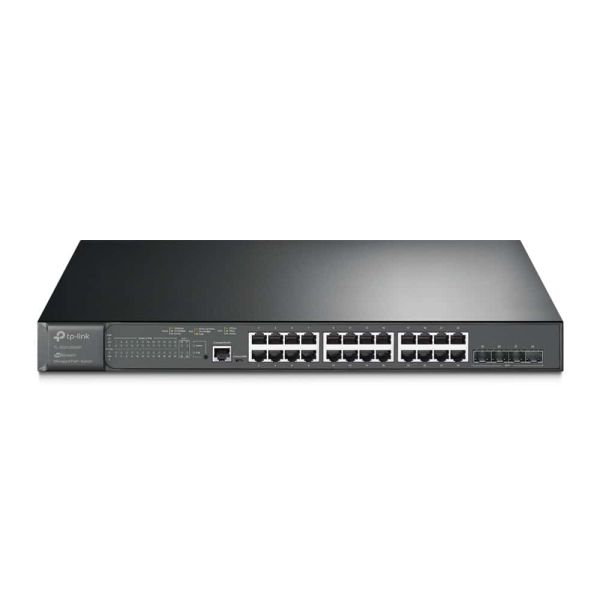

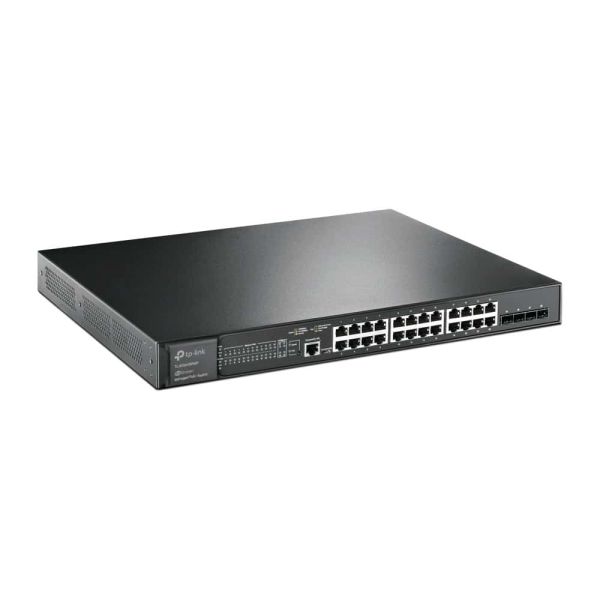

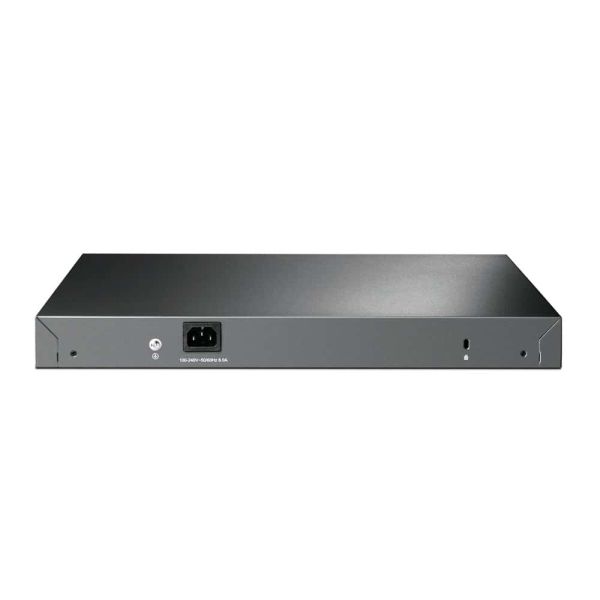

TP-Link TL-SG3428XMP netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

TP-Link TL-SG3428XMP, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

MPN SG3428XMP
EAN 6935364030773
€ 496,00 excl. BTW

TP-Link TL-SG3428XMP netwerk-switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

TP-Link’s JetStream L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link JetStream L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Software Defined Networking (SDN) with Cloud Access
Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network——all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
  • 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity
  • 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Static Routing: Helps route internal traffic for more efficient use of network resources
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
System event log
Ja
MIB-ondersteuning
Yes

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
24
Aantal moduleslots SPF+
4
Console port
RJ-45/Micro-USB

Netwerk

Netwerkstandaard*
IEEE 802.11d, IEEE 802.1s, IEEE 802.1w
10G support*
Ja
Port mirroring
Ja
Op beleid gebaseerde routering
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Active Link-detectie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4000

Data-uitwisseling

Switchingcapaciteit*
128 Gbit/s
Verzending snelheid
95,23 Mpps
MAC-adrestabel*
16000 entries
Aantal statische routes
48
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
12 MB

Beveiliging

DHCP-functies
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
SSH/SSL support
Ja

Beveiliging

Bescherming lus
Ja
BPDU filtering / bescherming
Ja
IP-MAC-Port binding
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Protocollen

Beheerprotocollen
SNMPv1/v2c/v3, SNTP

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja
Aantal ventilatoren
2 ventilator(en)

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
465,8 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Totaal Power over Ethernet (PoE)-budget
384 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
440 mm
Diepte
330 mm
Hoogte
44 mm

Verpakking

Meegeleverde kabels
LAN (RJ-45)
Snelstartgids
Ja
Breedte verpakking
440 mm
Diepte verpakking
528 mm
Hoogte verpakking
100 mm
Gewicht verpakking
6,17 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
