TP-Link TL-SX3206HPP netwerk-switch Managed L2+ 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Zwart

TP-Link TL-SX3206HPP, Managed, L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack-montage

Ruim op voorraad

MPN SX3206HPP
EAN 6935364006617
€ 519,00 excl. BTW

TP-Link TL-SX3206HPP netwerk-switch Managed L2+ 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Zwart

Lightning-Fast Connection with Full 10GE Ports
Build and expand your lightning-fast network with TP-Link TL-SX3206HPP—a fully managed switch with full 10GE RJ45 and fiber ports and 120 Gbps switching capacity. The four 10GE RJ45 ports with auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance. Two 10GE SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches can be easily constructed.

Empowering the Real WiFi 6 and WiFi 6E with 10G PoE++ Ports
Four 10GE RJ45 ports offer 802.3bt PoE++ to provide up to 200 W PoE power budget in total and 60 W for every port. It unlocks the full bandwidth potential of WiFi 6 and WiFi 6E access points and high power PoE devices.† PoE (802.3af), PoE+ (802.3at), and PoE++ (802.3bt) are supported, so you don't need to install new electrical circuits to power your devices.

Seamless Integration to Omada Cloud SDN
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campus, and ISPs.

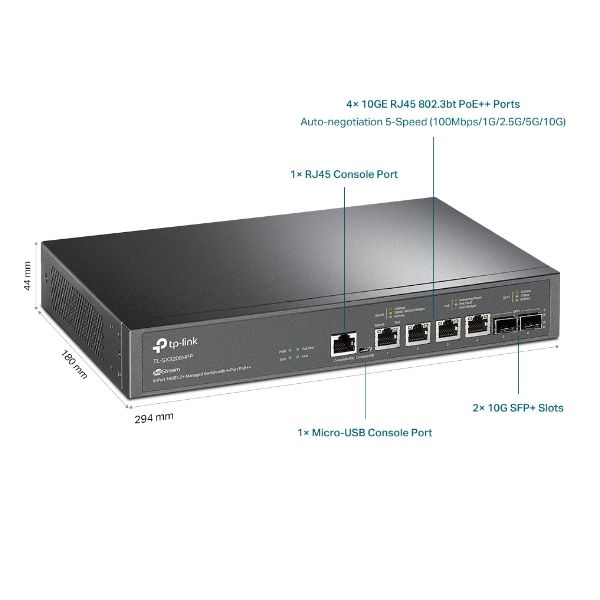

  • Full 10G Lightning-Fast Connection: Offers high-bandwidth connectivity with lightning-fast 4× 10 Gbps RJ45 ports and 2× 10 Gbps SFP+ slots
  • PoE++ Output with 200 W Power Budget†: Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs
  • Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping
  • Robust Security Strategies: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping
  • Static Routing: Helps route internal traffic for more efficient use of network resources
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2+
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Cloud-beheerd
Ja
ARP-inspectie
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja
MIB-ondersteuning
Yes

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
10G Ethernet (100/1000/10000)
Aantal moduleslots SPF+
2
Console port
RJ-45/Micro-USB

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
10G support*
Ja
Port mirroring
Ja
IP routing
Ja
Routing entries
512
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN, Tagged VLAN, VLAN mapping, Voice VLAN
Aantal VLANs
4000

Data-uitwisseling

Switchingcapaciteit*
120 Gbit/s
Verzending snelheid
89,28 Mpps
MAC-adrestabel*
32000 entries
Statische route
Ja
Aantal statische routes
48
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216

Beveiliging

DHCP-functies
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
HTTPS, SSL/TLS
SSH/SSL support
Ja
Bescherming lus
Ja
BPDU filtering / bescherming
Ja
Authenticatie
Gast-VLAN

Beveiliging

Authenticatie type
AAA, RADIUS, TACACS+

Multicast-functies

Multicast-ondersteuning
Ja
Multicast Listener Discovery (MLD) snooping
MLD v1/v2

Protocollen

Beheerprotocollen
SNMP v1/v2c/v3

Design

Rack-montage*
Ja
Kleur van het product
Zwart
LED-indicatoren
Ja
Aantal ventilatoren
2 ventilator(en)
Certificering
CE, FCC, RoHS

Prestatie

Minimale systeemeisen
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
244,9 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Vermogen per poort Power over Ethernet (PoE)
60 W
Totaal Power over Ethernet (PoE)-budget
200 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Warmtedissipatie
835,67 BTU/h

Gewicht en omvang

Breedte
294 mm
Diepte
180 mm
Hoogte
44 mm

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja
Breedte verpakking
400 mm
Diepte verpakking
250 mm
Hoogte verpakking
80 mm
Gewicht verpakking
2,62 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
