TP-Link ER605 v2 bedrade router Gigabit Ethernet Zwart

TP-Link ER605 v2, Ethernet WAN, Gigabit Ethernet, Zwart

Ruim op voorraad (levering verwacht binnen 3 dagen)

MPN TL-R605
EAN 6935364089597
€ 82,00 excl. BTW

TP-Link ER605 v2 bedrade router Gigabit Ethernet Zwart

Omada Gigabit VPN Router

Professional, Secure, and Reliable Gigabit VPN Router

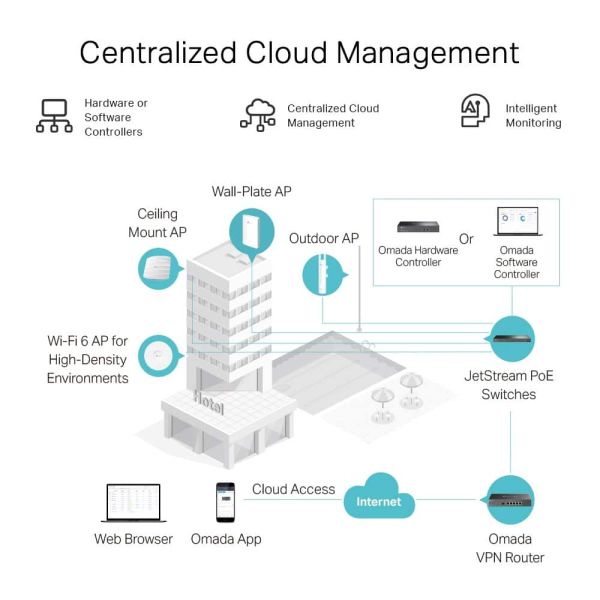

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

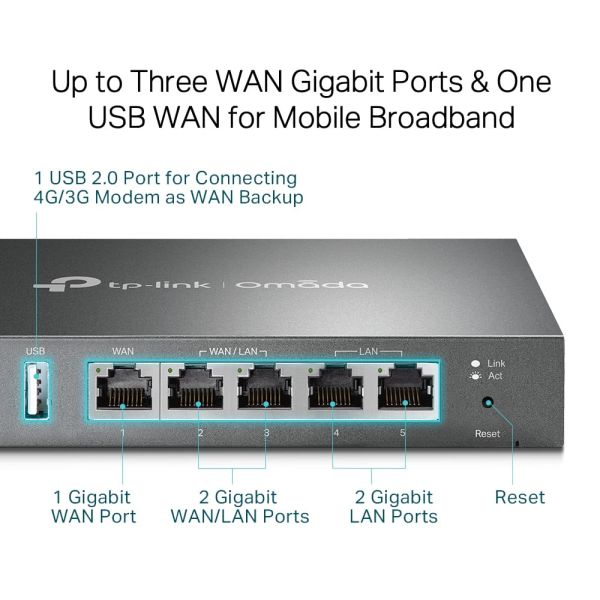

Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.

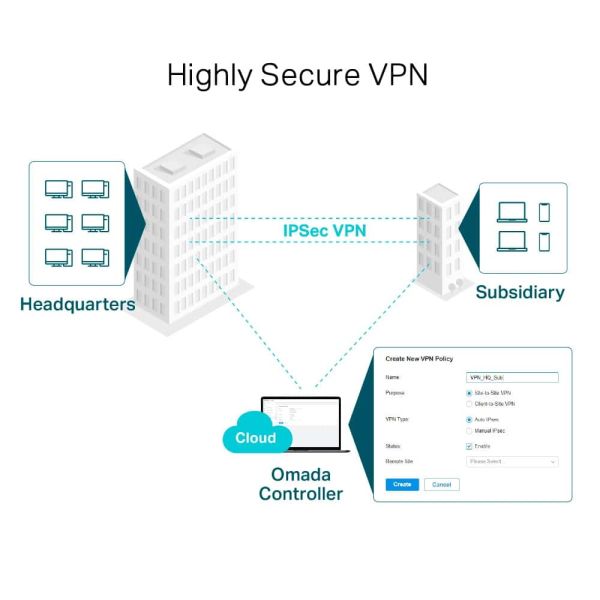

High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada's user base.

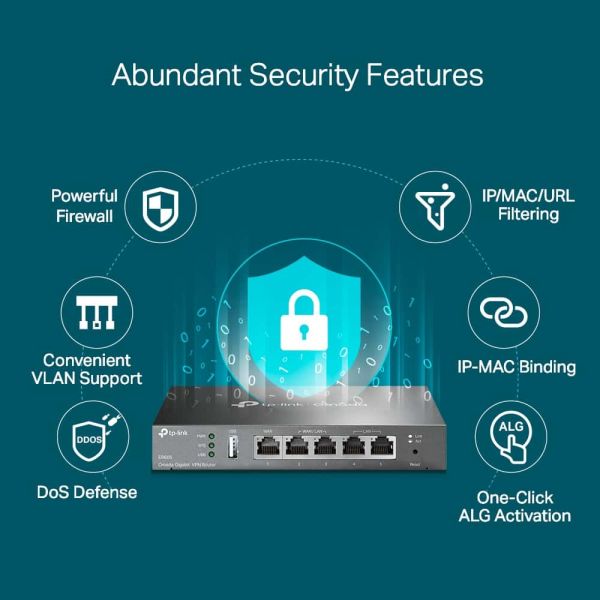

Abundant Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.

Internet Access Management Strategy
Administrators can moderate users' online behavior and easily specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.
  • Integrated into Omada SDN: Zero-Touch Provisioning***, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for convenience and easy management
  • Five Gigabit Ports: High-speed wired connectivity
  • Up to 3 WAN Ethernet Ports: 1 gigabit WAN port and 2 gigabit WAN/LAN ports with load balance raise the utilization rate of multi-line broadband
  • One USB WAN Port for Mobile Broadband: Mobile broadband via 4G/3G modem is supported for WAN backup by connecting to the USB port.‡
  • Highly Secure VPN: Supports up to 20× LAN-to-LAN IPsec, 16× OpenVPN*, 16× L2TP, and 16× PPTP VPN connections
  • Abundant Security Features: Advanced firewall policies, DoS defense, IP/MAC/URL filtering, and more security functions protect your network and data

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

WAN-verbinding

Ethernet WAN*
Ja
DSL WAN*
Nee
SIM-kaartsleuf*
Nee
3G/4G USB modem compatibiliteit*
Nee

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface type*
Gigabit Ethernet
Bekabelingstechnologie
10/100/1000Base-T(X)
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
VLAN=ondersteuning
Ja
Verkeerscontrole
Ja
Op beleid gebaseerde routering
Ja
Concurrent connections
150000

Beheerfuncties

Web-gebaseerd management*
Ja
Universal Plug and Play ( UPnP )
Ja
Reset button
Ja

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
5
Aantal USB-aansluitingen
1

Protocollen

DMZ support
Ja
Routing protocols
RIP-1, RIP-2
Beheerprotocollen
Telnet
DHCP client*
Ja
DHCP server*
Ja
Ondersteunde netwerkprotocollen
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Ondersteunde protocollen
IPsec/PPTP/L2TP

Beveiliging

Ondersteunde beveiligingsalgoritmen*
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
Firewall
Ja
Autenticatiemethode
SHA-1, MD5
URL- filtering
Ja
DoS aanval preventie
Ja
ARP-aanvalspreventie
Ja
Network address translation (NAT)
Ja
System event log
Ja
VPN tunnels quantity
20

Beveiliging

VPN eigenschappen
• 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) • PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption • L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec • OpenVPN Server • 10 OpenVPN Clients • 16 OpenVPN Tunnels
NAT functionality
• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP

Technische details

Duurzaamheidscertificaten
RoHS

Kenmerken

Flash memory
128 MB
Intern geheugen
256 MB
Intern geheugentype
DRAM
Ondersteunt Windows
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Ondersteunt Mac-besturingssysteem
MacOS
Ondersteunt Linux
Ja
Certificering
CE, FCC, RoHS

Design

Kleur van het product*
Zwart
Rack-montage
Ja
Rackcapaciteit
1U
LED-indicatoren
Activiteit, LAN, Systeem, USB, WAN

Energie

Stroomverbruik (typisch)*
7,94 W
Type stroombron
AC
AC-ingangsspanning
120 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

Gewicht en omvang

Breedte
158 mm
Diepte
101 mm
Hoogte
25 mm

Verpakking

Meegeleverde kabels
AC
Gebruikershandleiding
Ja
Snelstartgids
Ja
Snelle installatiehandleiding
Ja
