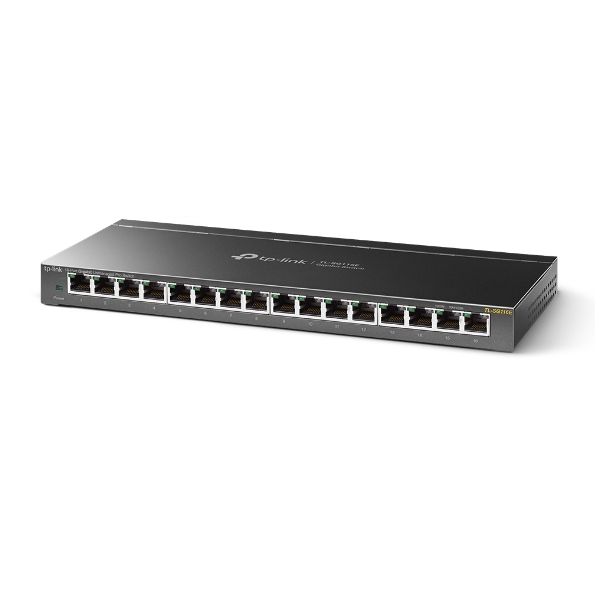

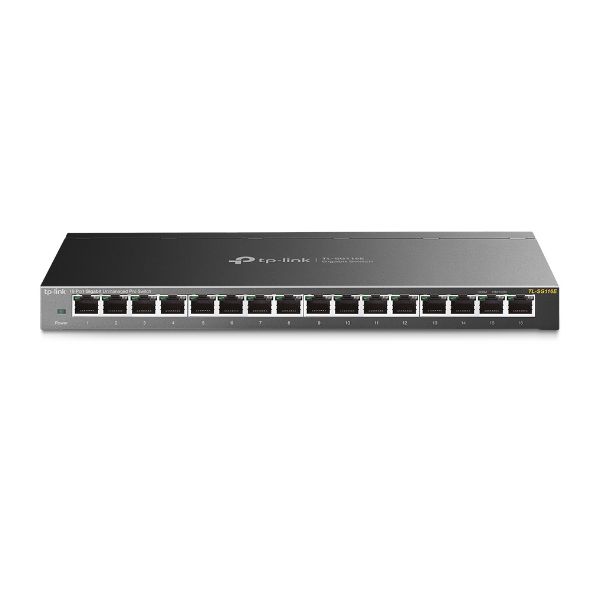

TP-Link TL-SG116E Unmanaged L2 Gigabit Ethernet (10/100/1000) Zwart

TP-Link TL-SG116E, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex

Ruim op voorraad

MPN TL-SG116E
EAN 6935364084301
€ 96,00 excl. BTW

TP-Link TL-SG116E Unmanaged L2 Gigabit Ethernet (10/100/1000) Zwart

What This Product Does

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.

Easy to Use

Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.

Durable Metal Casing

The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Additional Software Features

TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.

Go Green with Your Ethernet

TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
  • 16 10/100/1000Mbps RJ45 ports
  • Plug and play, with no configuration required
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged
Switch-laag
L2
Quality of Service (QoS)
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16

Netwerk

Netwerkstandaard*
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Ondersteundende kabel types
Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Auto MDI/MDI-X
Ja
Auto-negotiation
Ja
Kabellengtedetectie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Tagged VLAN, Protocol-based VLAN
Aantal VLANs
32

Data-uitwisseling

Switchingcapaciteit*
32 Gbit/s
Verzending snelheid
23,81 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Aantal wachtrijen
4
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
4,1 MB

Beveiliging

IGMP snooping
Ja
Bescherming lus
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Certificering
FCC, CE, RoHS

Prestatie

Plug and play
Ja

Energie

Stroombron*
DC
Vermogenstoevoer inclusief*
Ja
Stroom
1 A
Ingangsspanning
12 V
Vermogensverbruik (max)
9,3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent
Warmtedissipatie
31,68 BTU/h

Gewicht en omvang

Breedte
286 mm
Diepte
111,7 mm
Hoogte
25,4 mm

Verpakking

Snelstartgids
Ja
Inclusief AC-adapter
Ja
Rubberen voetjes
Ja
Breedte verpakking
412 mm
Diepte verpakking
170 mm
Hoogte verpakking
70 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
