Transcend TS512MPTM520 internal solid state drive 0,5 GB Parallel ATA SLC

Transcend TS512MPTM520, 0,5 GB, 57 MB/s

Niet op voorraad

Fabrikant Transcend
MPN TS512MPTM520
EAN 0760557831822
€ 27,00 excl. BTW

Transcend TS512MPTM520 internal solid state drive 0,5 GB Parallel ATA SLC

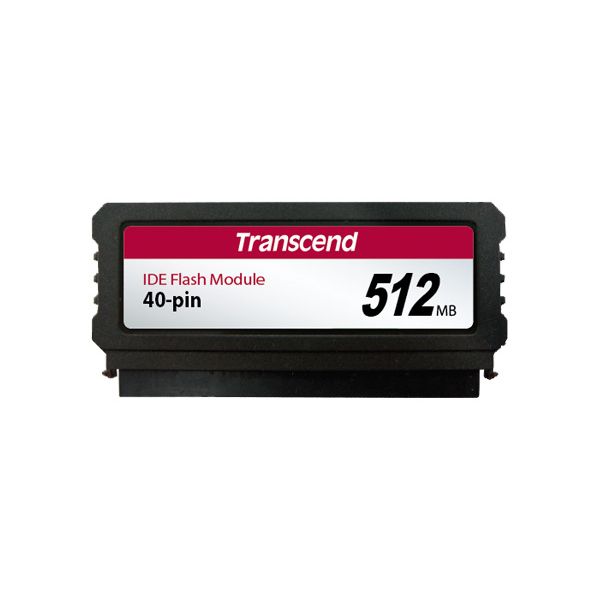

PATA Flash Module (40Pin Vertical)

Transcend's 40-pin PATA Flash Modules can be inserted directly onto a system motherboard via any PATA (IDE) interface to replace conventional 3.5" hard disk drives. Ideal for use as bootable drives, the 40-pin PATA Flash Modules are an easy solution for integrating SSD storage technology into legacy PC-based systems.

Features

- RoHS compliant products
- Support Security command
- Support S.M.A.R.T (Self-defined)
- Fully compatible with devices and OS that support the IDE standard (pitch = 2.54mm)
- Built-in ECC function assures high reliability of data transfer
- Supports up to Ultra DMA Mode 4
- Supports PIO Mode 6

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

SSD capaciteit*
0,5 GB
Interface*
Parallel ATA
Type geheugen*
SLC
Leessnelheid
57 MB/s
Schrijfsnelheid
38 MB/s
S.M.A.R.T. support
Ja
Mean time between failures (MTBF)
1000000 uur

Energie

Operating voltage
5 V
Stroomverbruik (lezen)
0,9 W
Stroomverbruik (schrijven)
0,9 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C

Eisen aan de omgeving

Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Trillingen, in bedrijf
20 G
Schokbestendigheid
1500 G

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
61 mm
Diepte
7,1 mm
Hoogte
27,1 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717070

Overige specificaties

Intern
Ja

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
