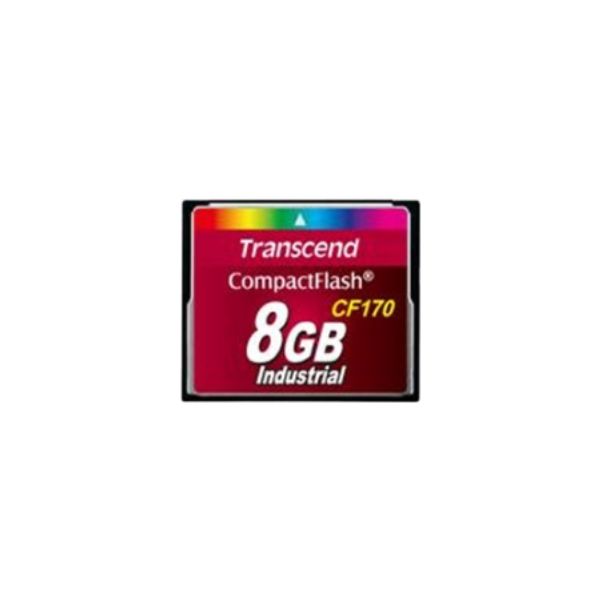

Transcend CF170 8 GB CompactFlash MLC

Transcend CF170, 8 GB, CompactFlash, MLC, 90 MB/s, 60 MB/s, Hittebestendig, Schokbestendig

Nog 3 beschikbaar (bel voor reservering)

Fabrikant Transcend
MPN TS8GCF170
EAN 0760557825098
€ 113,00 excl. BTW

Transcend CF170 8 GB CompactFlash MLC

Boasting high-speed data transfer rates and extra large storage space, Transcend's industrial CF170 CompactFlash cards are perfect for embedded systems, medical instruments, road surveillance systems, and other industrial applications with demanding performance and capacity requirements. Thanks to their use of StaticDataRefresh and EarlyRetirement technology, the CF170 CF cards are able to correct data errors, maintain data integrity, and extend the lifespan of their flash memory cells.

- Operation Modes: PC Card Memory Mode, PC Card IO Mode and True IDE Mode
- CompactFlash Specification V6.0 compliant
- Built-in advanced ECC and wear-leveling algorithm
- Excellent temperature flexibility, shock and vibration resistant

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Geheugen

Capaciteit*
8 GB
Soort flashgeheugen*
CompactFlash
Leessnelheid
90 MB/s
Schrijfsnelheid
60 MB/s
Intern geheugentype
MLC

Kenmerken

Veiligheidsfunties
Hittebestendig, Schokbestendig
Mean time between failures (MTBF)
1000000 uur
Certificering
CE, FCC, BSMI

Energie

Stroomverbruik (schrijven)
94,7 mA
Stroomverbruik (lezen)
180,4 mA
Geheugen voltage
3.3,5 V

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-25 - 85 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Schokbestendigheid
1500 G
Trillingsbestendigheid
20 G

Gewicht en omvang

Breedte
42,8 mm
Diepte
3,3 mm
Hoogte
36,4 mm

Verpakking

Aantal per verpakking
1 stuk(s)

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85235190
