Trendnet TEG-S17 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart
Trendnet TEG-S17, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage
Nog 13 beschikbaar
Fabrikant
Trendnet
MPN
TEG-S17
EAN
0710931140835
€ 76,00
excl. BTW
€ 76,00
excl. BTW
excl. BTW
Trendnet TEG-S17 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart
The 16-Port Gigabit Switch, model TEG-S17, provides high-bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices, and a 32Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Rackmount Design

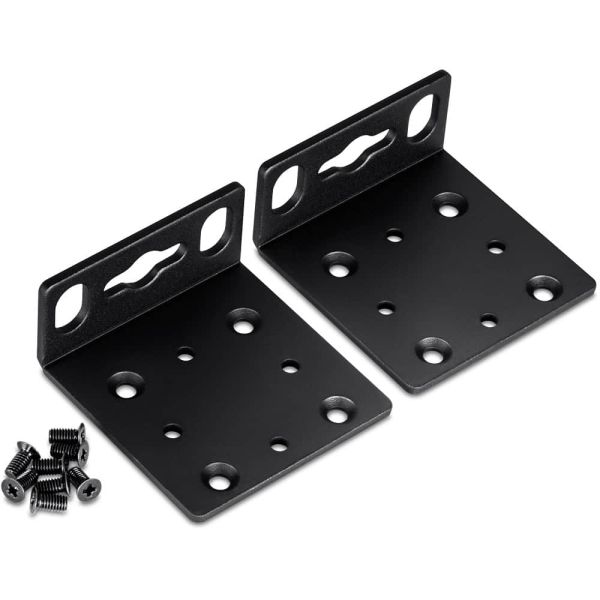

With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices, and a 32Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Rackmount Design
With a sturdy metal housing and included rackmount brackets, this switch is well-suited for 19” 1U rack installations.
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
- 16 x Gigabit RJ-45 ports
- Sturdy metal switch
- Built-in power supply
- 32Gbps forwarding capacity
- Fanless design
- 1U 19” rackmount brackets included
- NDAA / TAA compliant (U.S. and Canada only)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja
Data-uitwisseling
Switchingcapaciteit*
32 Gbit/s
Verzending snelheid
23,8 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
0,5 MB
Design
Rack-montage*
Ja
Kleur van het product
Zwart
LED-indicatoren
Ja
Certificering
FCC
CE
ETL
Prestatie
Fanloos
Ja
Prestatie
Mean time between failures (MTBF)
1121721 uur
Energie
Stroombron*
AC
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
9,19 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Gewicht en omvang
Breedte
130 mm
Diepte
435 mm
Hoogte
43 mm
Gewicht
1,63 kg
Verpakking
Meegeleverde kabels
AC
Gebruiksaanwijzing
Ja
Rekbevestigingspakket
Ja
