Trendnet TEG-S25D netwerk-switch Gigabit Ethernet (10/100/1000)
Trendnet TEG-S25D, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage
Nog 16 beschikbaar
Fabrikant
Trendnet
MPN
TEG-S25D
EAN
0710931140859
€ 86,00
excl. BTW
€ 86,00
excl. BTW
excl. BTW

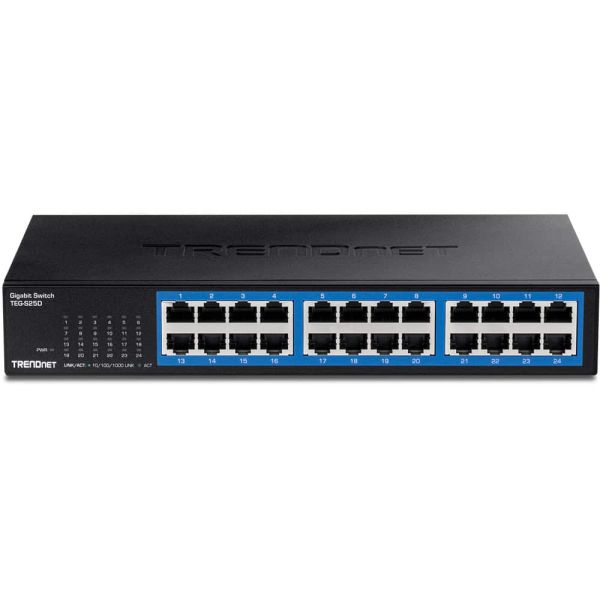

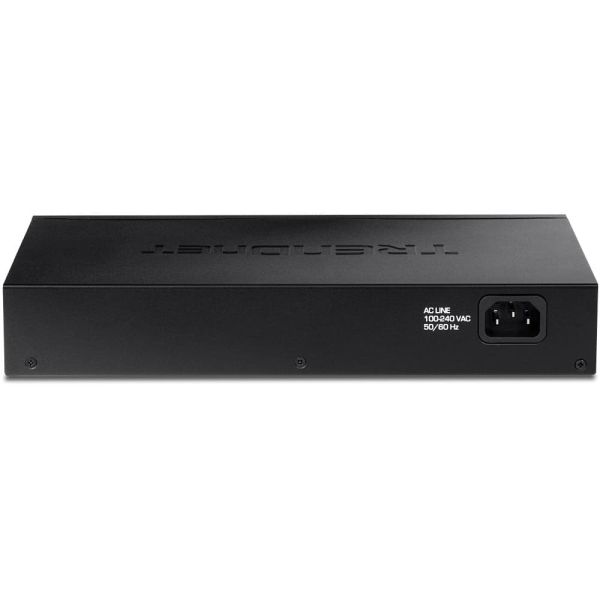

Trendnet TEG-S25D netwerk-switch Gigabit Ethernet (10/100/1000)
The 24-Port Gigabit Desktop Switch, model TEG-S25D, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 48Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 24 devices, and a 48Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design, this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 24 devices, and a 48Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Housing Design
With a compact and sturdy metal housing design, this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
- 24 x Gigabit RJ-45 ports
- Sturdy metal desktop switch
- Built-in power supply
- 48Gbps forwarding capacity
- Fanless design

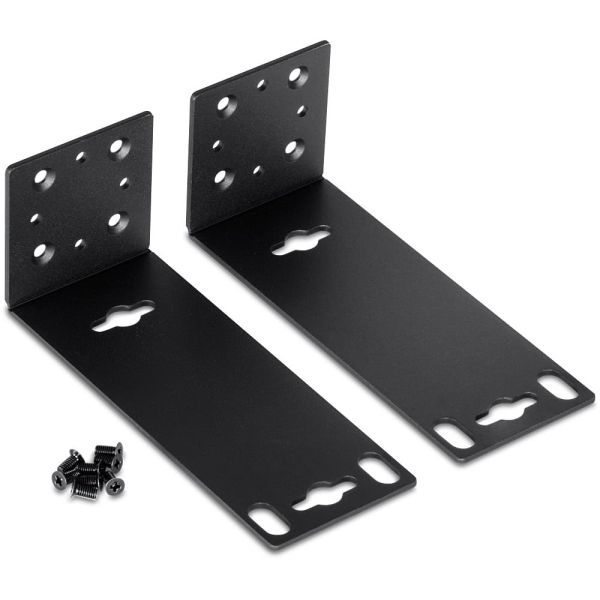

- 1U rackmount brackets included
- NDAA / TAA compliant (U.S. and Canada only)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Netwerk
Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Full duplex
Ja
Data-uitwisseling
Switchingcapaciteit*
48 Gbit/s
Verzending snelheid
35,71 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
0,5 MB
Design
Rack-montage*
Ja
LED-indicatoren
Ja
Certificering
FCC
CE
ETL
Prestatie
Fanloos
Ja
Mean time between failures (MTBF)
364460 uur
Energie
Stroombron*
AC
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
1 A
Vermogensverbruik (max)
14,24 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Nee
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 40 °C
Gewicht en omvang
Breedte
162 mm
Diepte
267 mm
Hoogte
42 mm
Gewicht
1,3 kg
Verpakking
Meegeleverde kabels
AC
Gebruiksaanwijzing
Ja
Rekbevestigingspakket
Ja
