Trendnet TEG-S380 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart

Trendnet TEG-S380, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant Trendnet
MPN TEG-S380
EAN 0710931140590
€ 87,00 excl. BTW

Trendnet TEG-S380 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Zwart

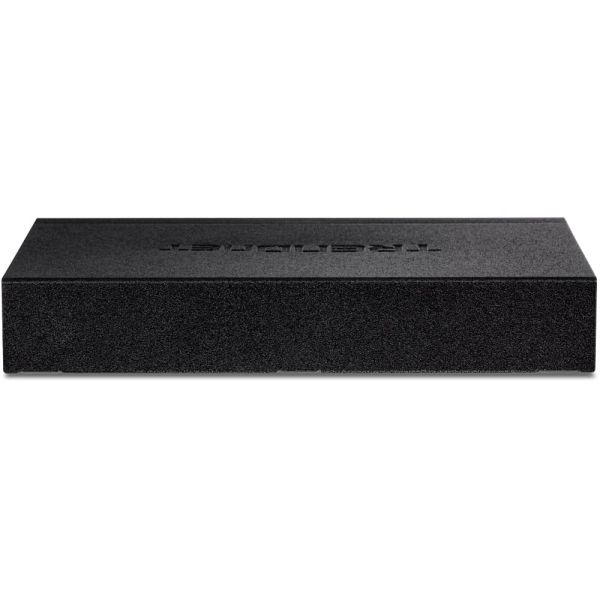

8-Port Unmanaged 2.5G Switch

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s Unmanaged 2.5G Switches. These 2.5G network switches come equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Each high-speed 2.5G switch features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates distracting operating noise. TRENDnet’s reliable 2.5G switches are cost-effective solutions to increase your network’s throughput.

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling.

Wall Mountable

The 2.5G switches feature metal housing with a convenient wall mountable design for greater installation flexibility.

Fanless

The fanless design of the 2.5G switches lowers energy consumption costs and eliminates operating noise.

Easy Installation

No configuration needed, simply connect network devices to the 2.5G Ethernet switch

2.5G Ports

Equipped with 2.5GBASE-T RJ-45 ports that provide higher gigabit speeds capable of up to 2.5Gbps over existing Cat5e or better cabling

Fanless

Fanless design lowers energy consumption and eliminates operating noise

Housing Design

Sturdy metal housing

Wall Mountable

Features a convenient wall mountable design for greater installation flexibility

Jumbo Frame

Sends larger packets, or Jumbo Frames (up to 12KB) for increased performance

LED Indicators

LED indicators on this 2.5G switch conveys port status
  • 5 x 2.5GBASE-T ports
  • IEEE 802.3bz (2.5G) compliant
  • Backwards compatible with 10/100/1000Mbps devices
  • 25Gbps switching capacity
  • Fanless design eliminates noise
  • Wall mountable for installation flexibility

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Ja
Half-duplex
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s

Data-uitwisseling

Switchingcapaciteit*
40 Gbit/s
Verzending snelheid
29,76 Mpps
MAC-adrestabel*
16000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
12000

Design

Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Ophangsysteem voor aan de muur
Ja
Certificering
FCC, CE

Prestatie

Mean time between failures (MTBF)
1401356 uur

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
12 V
Stroom
1.5 A
Vermogensverbruik (max)
12,4 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
240 mm
Diepte
103 mm
Hoogte
26 mm
Gewicht
600 g

Verpakking

Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
