Trendnet TI-G102 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart

Trendnet TI-G102, Gigabit Ethernet (10/100/1000), Full duplex, Ophangsysteem voor aan de muur

Nog 19 beschikbaar

Fabrikant Trendnet
MPN TI-G102
EAN 0710931160925
€ 365,00 excl. BTW

Trendnet TI-G102 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart

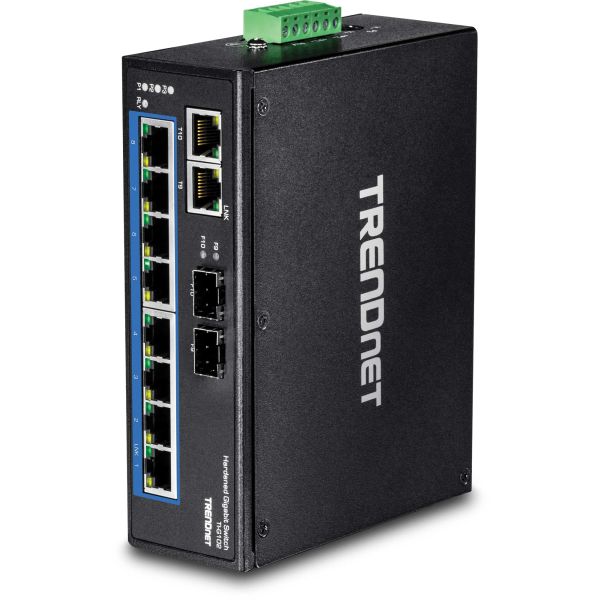

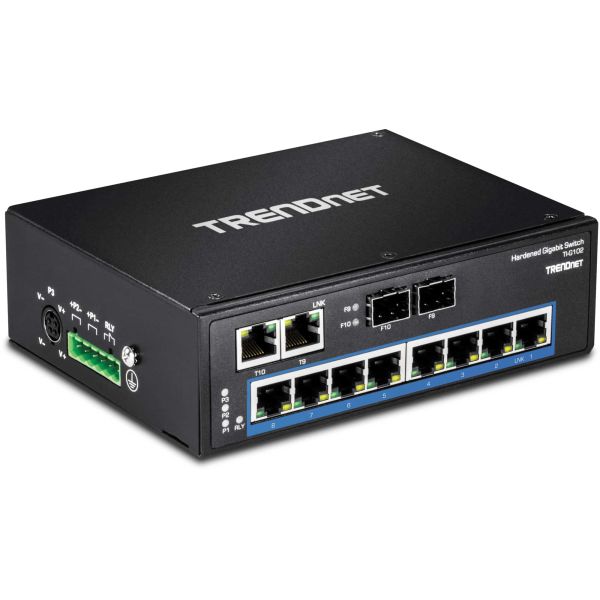

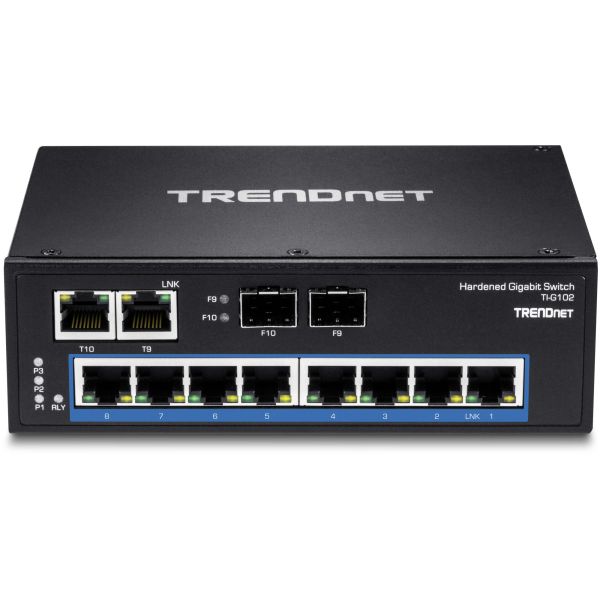

TRENDnet’s 10-Port Hardened Industrial Gigabit DIN-Rail Switch, model TI-G102, has eight dedicated gigabit ports, plus two gigabit RJ-45 / SFP shared ports. Users are able to connect eight devices to the switch, while still providing two gigabit ports for additional network connections. The switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Gigabit Speeds
Ten gigabit ports provide high-speed network connections to devices, and a 20 Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.

Tolerance
Features dual redundant power inputs with output alarm relay.

Design
Equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75°C (-40° – 167°F) for industrial environments.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
10
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2
Netstekker
DC-in ingang

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplex
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
20 Gbit/s
Verzending snelheid
14,8 Mpps
MAC-adrestabel*
16000 entries
Store-and-forward
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja

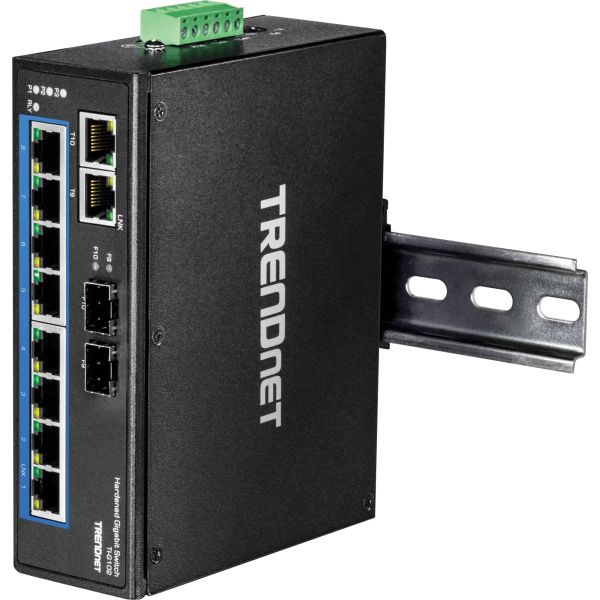

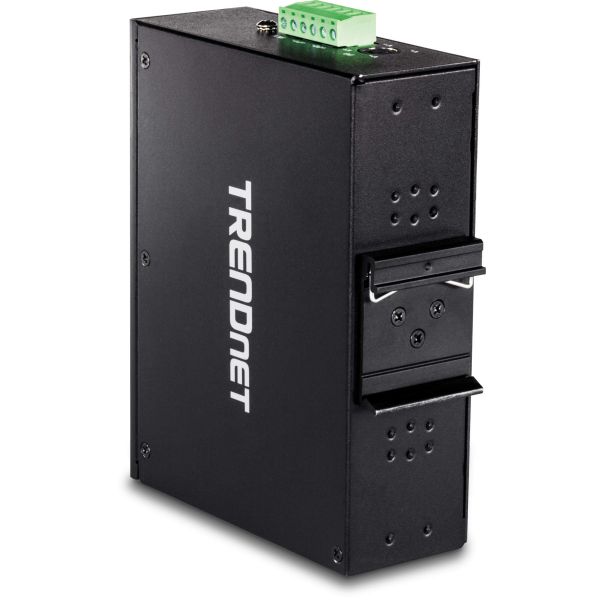

DIN rail bevestiging
Ja
Certificering
CE, FCC

Prestatie

Buffergrootte
2048 KB
Mean time between failures (MTBF)
510400 uur

Energie

Redundante voeding
Ja
DC voltage input
12 - 56 V
Ingangsspanning
12/56 V
Vermogensverbruik (max)
5,76 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
155 mm
Diepte
120 mm
Hoogte
48 mm
Gewicht
415 g

Verpakking

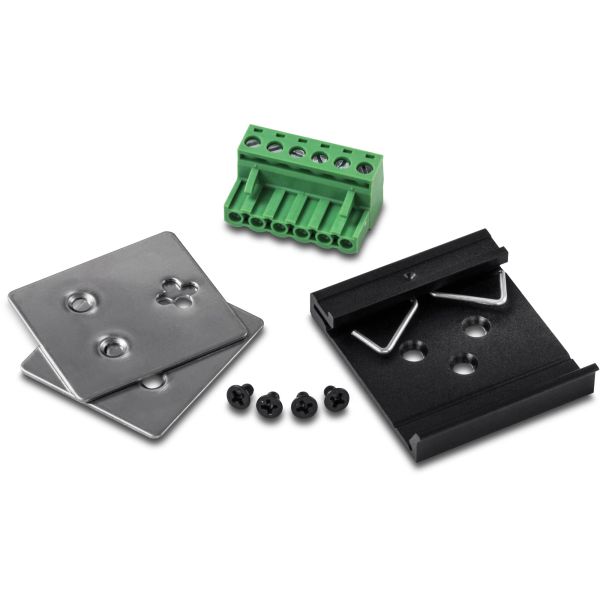

Wand montagekit
Ja
Klemmenblok inclusief
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
