Trendnet TI-G162 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart

Trendnet TI-G162, Gigabit Ethernet (10/100/1000), Full duplex, Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant Trendnet
MPN TI-G162
EAN 0710931161854
€ 424,00 excl. BTW

Trendnet TI-G162 netwerk-switch Gigabit Ethernet (10/100/1000) Zwart

TRENDnet Industrie Switch 16Port Gbit DIN-Rail
  • 14 x Gigabit ports
  • 2 x Gigabit SFP slots
  • 32Gbps switching capacity
  • Hardened IP30 rated metal switch

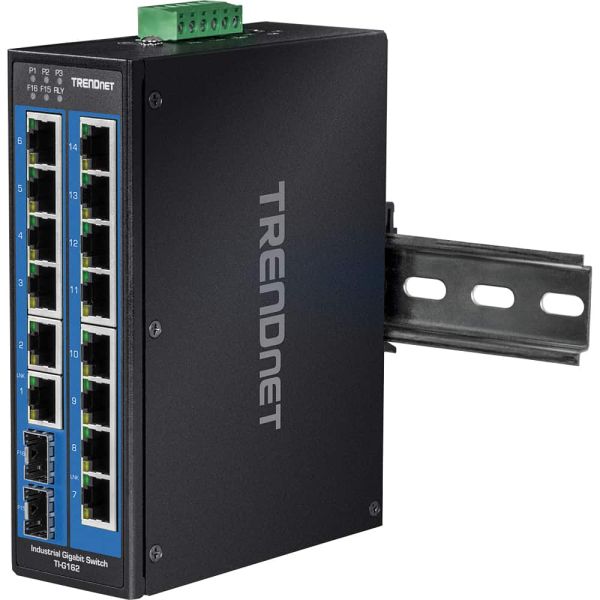

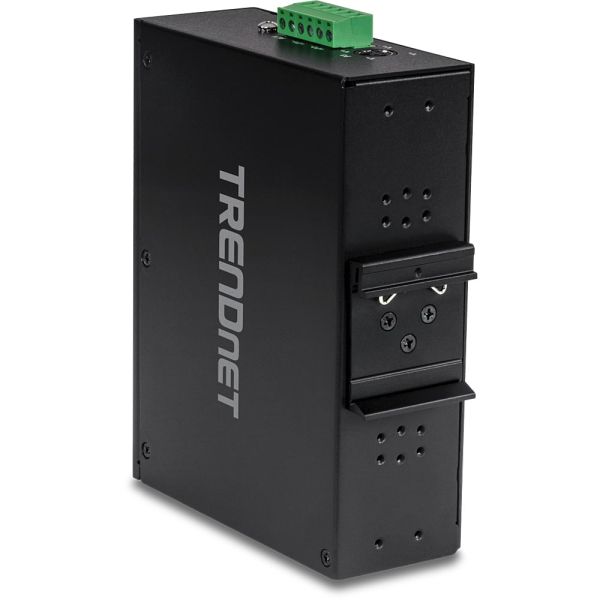

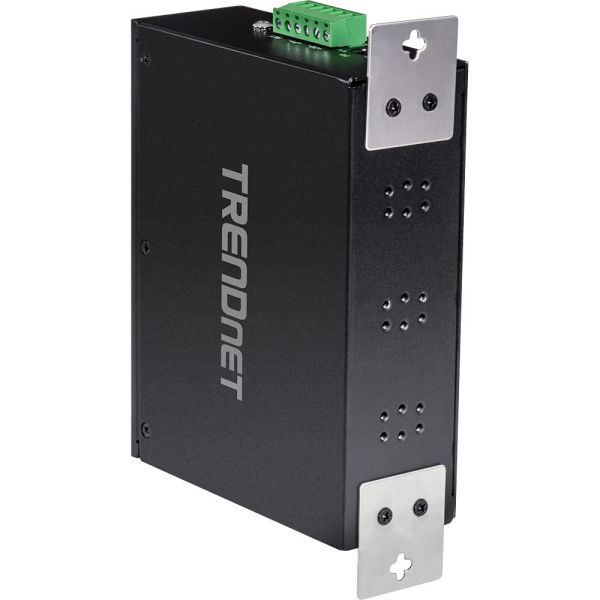

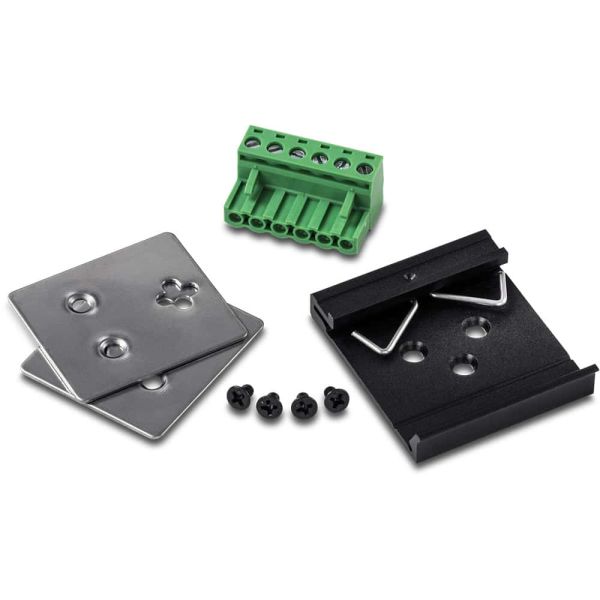

  • Includes DIN-Rail mount and wall mount brackets
  • Wide operating temperature range of -40° – 75°C (-40° – 167°F)

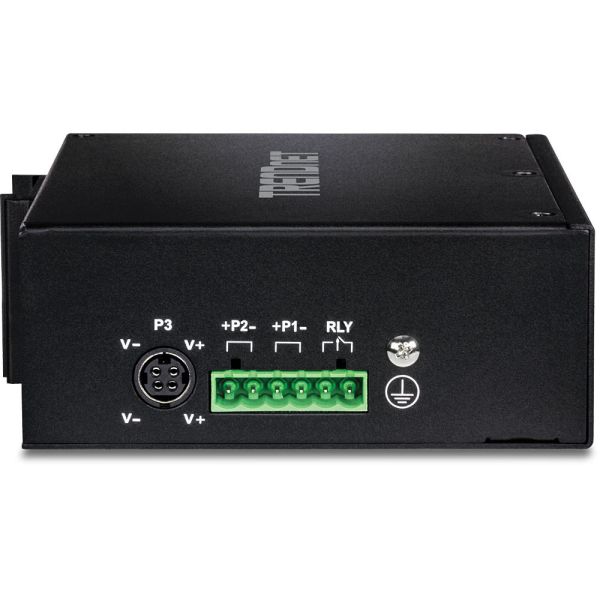

  • Multiple power inputs provide redundant power with overload current protection
  • Alarm output triggered by power failure

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
14
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Full duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
32 Gbit/s
Verzending snelheid
23,8 Mpps
MAC-adrestabel*
8000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Packet buffergeheugen
0,5 MB

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Certificering
CE FCC MET IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Prestatie

Mean time between failures (MTBF)
514167 uur

Energie

Vermogenstoevoer inclusief*
Nee
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
48 - 56 V
Stroom
2 A
Vermogensverbruik (max)
13 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
120 mm
Diepte
155 mm
Hoogte
48 mm
Gewicht
536 g

Verpakking

Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
