Trendnet TI-G642i Managed L2 Gigabit Ethernet (10/100/1000) Zwart

Trendnet TI-G642i, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex

Nog 11 beschikbaar

Fabrikant Trendnet
MPN TI-G642I
EAN 0710931161540
€ 224,00 excl. BTW

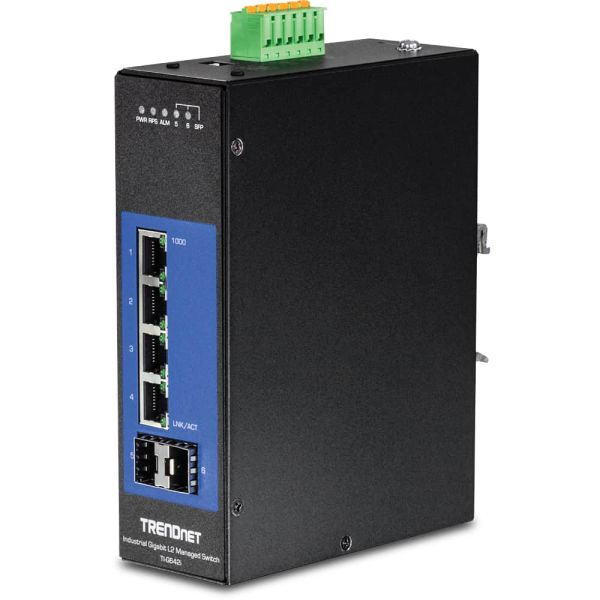

Trendnet TI-G642i Managed L2 Gigabit Ethernet (10/100/1000) Zwart

TRENDnet’s Industrial Gigabit L2 Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today’s SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber networking applications.

These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.
  • 4 x Gigabit ports
  • 2 x SFP slots
  • Supports 100/1000Base-FX fiber SFP modules
  • 12Gbps switching capacity
  • Hardened IP30 rated metal housing
  • Includes DIN-rail mounting bracket
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Supports LACP, STP/RSTP, VLAN, and IGMP Snooping
  • IEEE 802.1p QoS with queue scheduling support
  • Bandwidth control per port
  • Dual redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (model: TI-M6024)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
2

Netwerk

Netwerkstandaard*
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Full duplex
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
MAC-adres zelflerende functie
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Tagged VLAN
Aantal VLANs
256

Data-uitwisseling

Switchingcapaciteit*
12 Gbit/s
Verzending snelheid
18,9 Mpps
MAC-adrestabel*
8192 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10240

Beveiliging

DHCP-functies
DHCP relay, DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja

Multicast-functies

Multicast-ondersteuning
Ja

Multicast-functies

Aantal gefilterde multicast-groepen
256

Protocollen

Beheerprotocollen
SNMP v1, v2c, v3

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Reset button
Ja
LED-indicatoren
Ja
DIN rail bevestiging
Ja
Certificering
CE, FCC

Prestatie

Mean time between failures (MTBF)
996299 uur

Energie

Redundante voeding
Ja
Vermogensverbruik (max)
12 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Gewicht en omvang

Breedte
160 mm
Diepte
120 mm
Hoogte
50 mm
Gewicht
720 g

Verpakking

Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
