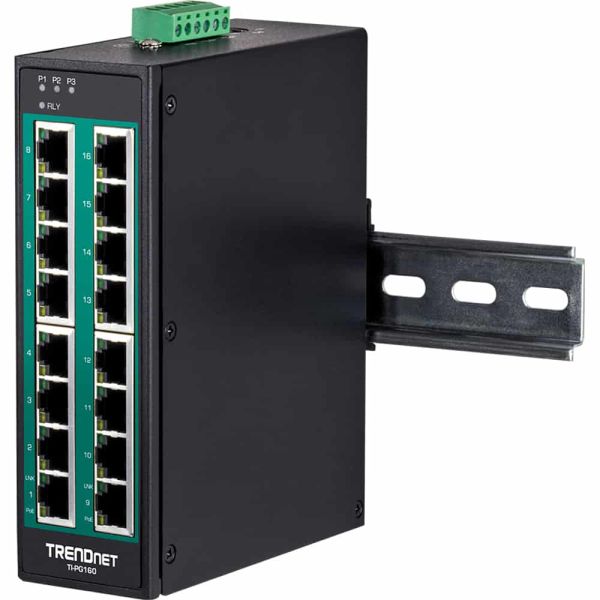

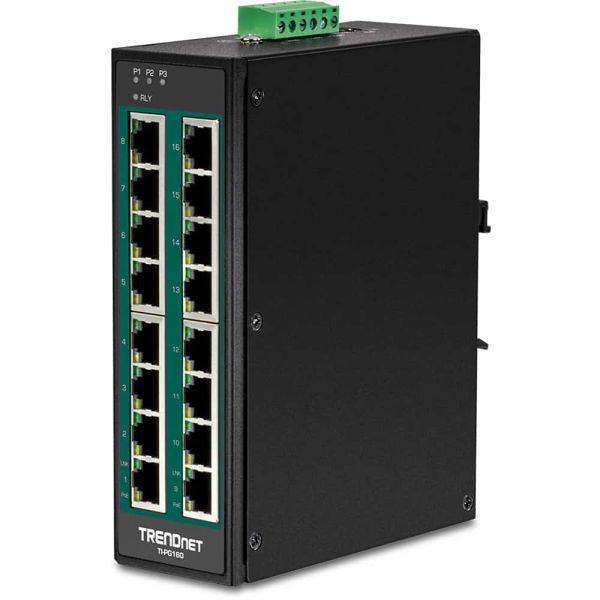

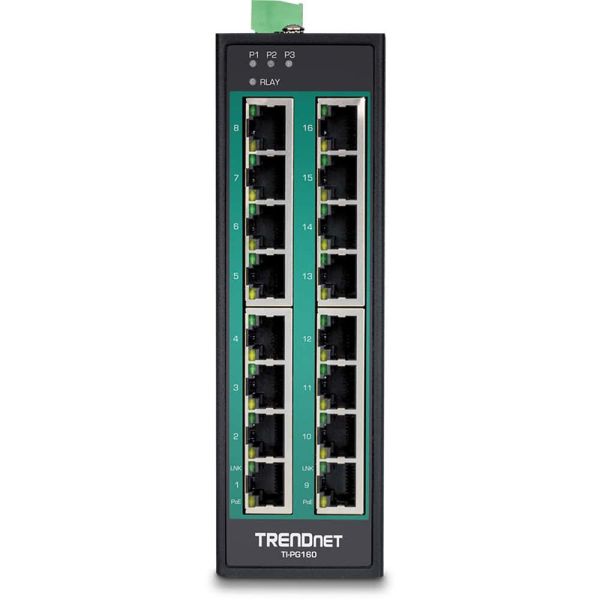

Trendnet TI-PG160 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Trendnet TI-PG160, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Ruim op voorraad

Fabrikant Trendnet
MPN TI-PG160
EAN 0710931161618
€ 507,00 excl. BTW

Trendnet TI-PG160 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

TRENDnet’s 16-Port Industrial Gigabit PoE+ DIN-Rail Switch, model TI-PG160, has sixteen gigabit PoE+ ports with a 240W PoE power budget. Users are able to connect sixteen PoE+ devices to the industrial PoE switch, while still providing two gigabit ports for additional network connections. The industrial PoE switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
  • 16 x Gigabit PoE+ ports
  • 240W PoE power budget
  • 32Gbps switching capacity
  • Hardened IP30 rated metal switch

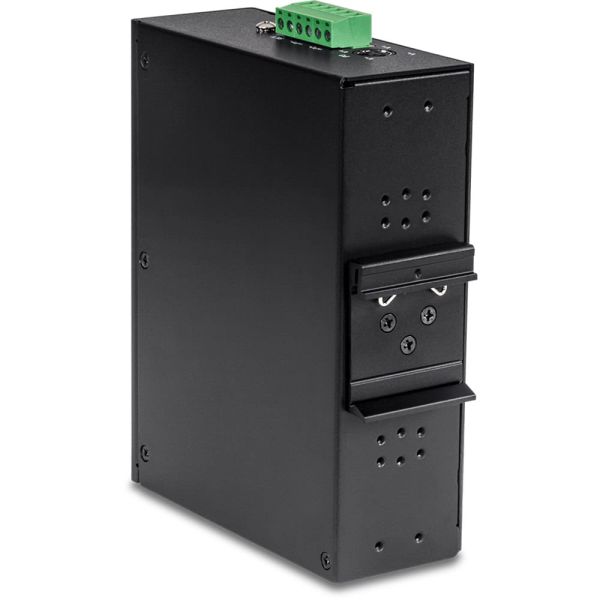

  • Includes DIN-rail and wall mounts
  • Operating temperature range of -40° – 75° C (-40° – 167° F)

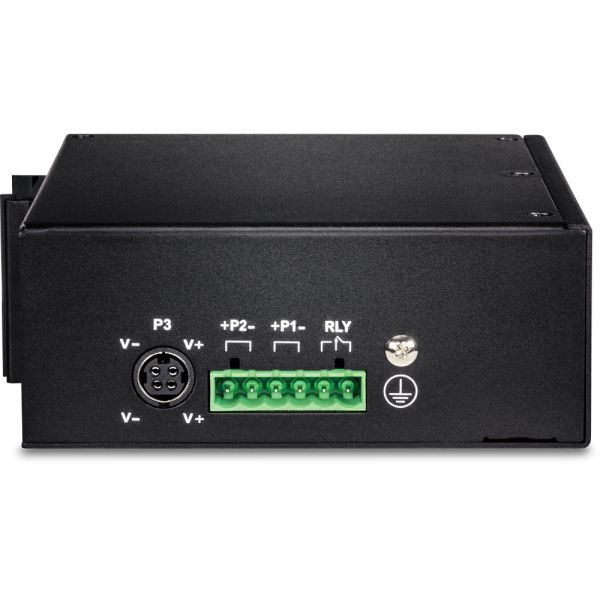

  • Dual redundant power inputs with overload current protection
  • Alarm output triggered by power failure
  • Power supply sold separately (models: TI-S24048, TI-S48048)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Full duplex
Ja

Data-uitwisseling

Switchingcapaciteit*
32 Gbit/s
Verzending snelheid
23,8 Mpps
MAC-adrestabel*
8192 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
9216

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja
DIN rail bevestiging
Ja
Certificering
CE, FCC, UL

Prestatie

Mean time between failures (MTBF)
699103 uur

Energie

Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
48 - 56 V
Vermogensverbruik (max)
5,76 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
16
Totaal Power over Ethernet (PoE)-budget
240 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C

Gewicht en omvang

Breedte
155 mm
Diepte
120 mm
Hoogte
48 mm
Gewicht
500 g

Verpakking

Snelstartgids
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
