Trendnet TI-PG62 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Trendnet TI-PG62, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Ophangsysteem voor aan de muur

Nog 13 beschikbaar

Fabrikant Trendnet
MPN TI-PG62
EAN 0710931160604
€ 242,00 excl. BTW

Trendnet TI-PG62 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

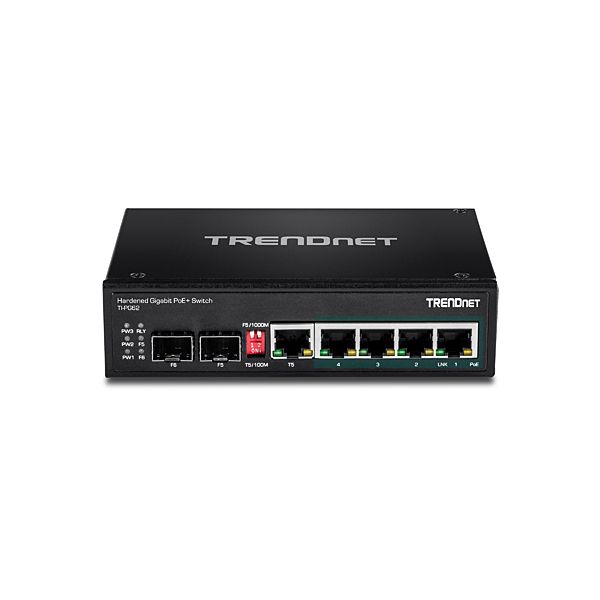

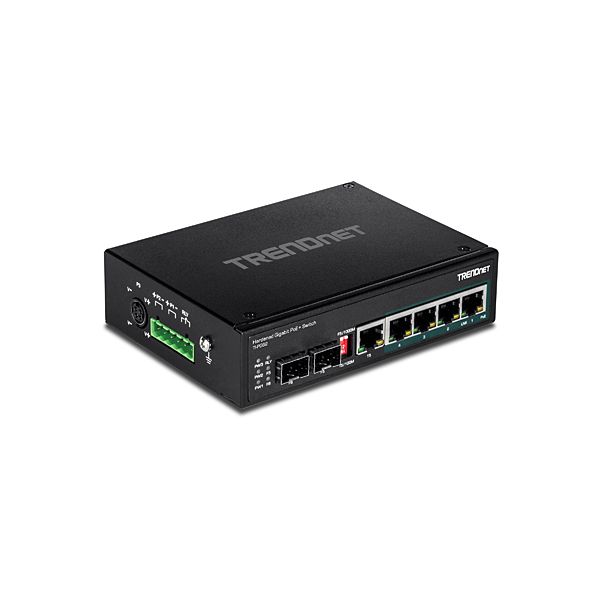

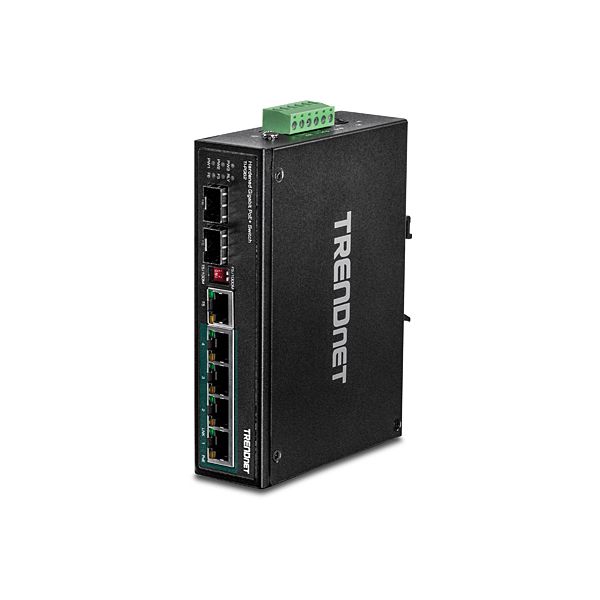

TRENDnet’s TI-PG62 is a reliable IP30 unmanaged DIN-rail PoE+ switch with a rugged housing rated for extreme industrial environments. It offers 4 Gigabit PoE+ ports, one shared Gigabit port (RJ-45 / SFP), one dedicated SFP slot, and a 12 Gbps switching capacity. Dual redundant power inputs and a power failure alarm relay.

PoE Power
A 120 Watt PoE+ power budget supplies up to four Power over Ethernet devices with PoE+ power.

Fault Tolerance

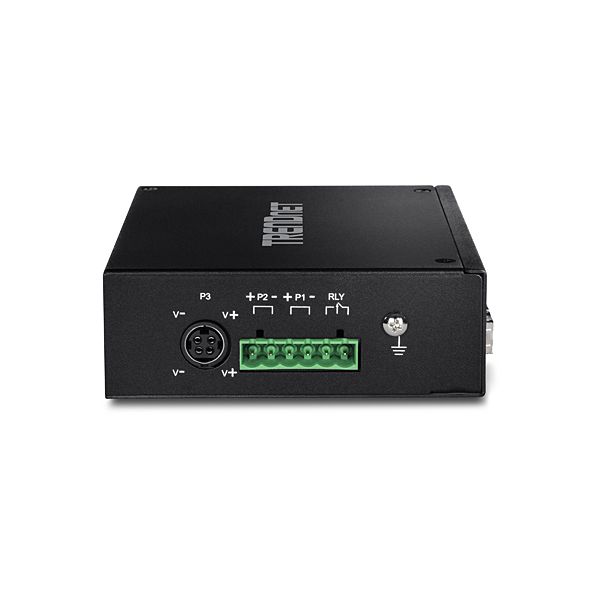

Features dual redundant power inputs (Primary and RPS) from external power sources and an output alarm relay to indicate the event of input power failure.

Industrial Hardened Design
Equipped with a rugged IP30 rated enclosure and designed to withstand a high degree of vibration, shock, protection against ESD / EMI / surge, and operate with a wide temperature range (- 40 – 75 °C (- 40 - 167 °F)) for harsh environments.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
4
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
1
Aantal moduleslots SPF
1

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Full duplex
Ja
Auto-negotiation
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja

Data-uitwisseling

Switchingcapaciteit*
12 Gbit/s
Throughput
8,9 Mpps
MAC-adrestabel*
1000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000

Design

Rack-montage*
Nee
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Internationale veiligheidscode (IP)
IP30
Ophangsysteem voor aan de muur
Ja

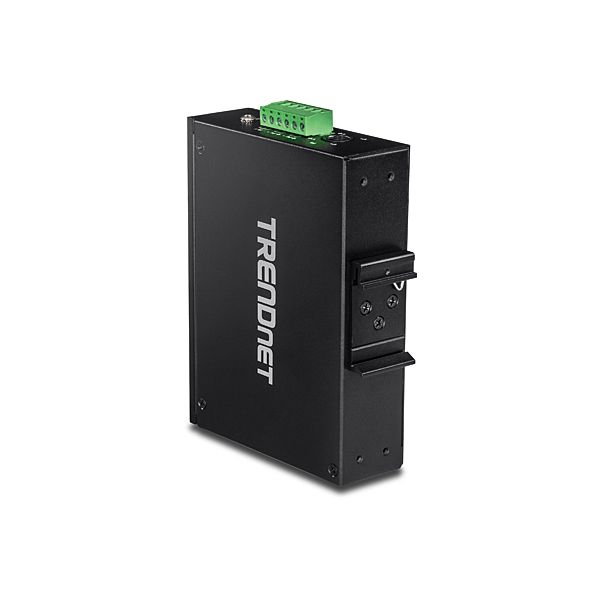

DIN rail bevestiging
Ja
Certificering
CE, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6

Prestatie

Buffergrootte
1024 KB

Prestatie

Mean time between failures (MTBF)
460304 uur

Energie

Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
2 A
Ingangsspanning
48 - 56 V
Spanning
48 V
Output current
3,34 A
Vermogensverbruik (max)
5,76 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
4
Totaal Power over Ethernet (PoE)-budget
120 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
143 mm
Diepte
105 mm
Hoogte
36 mm
Gewicht
500 g

Verpakking

Snelstartgids
Ja

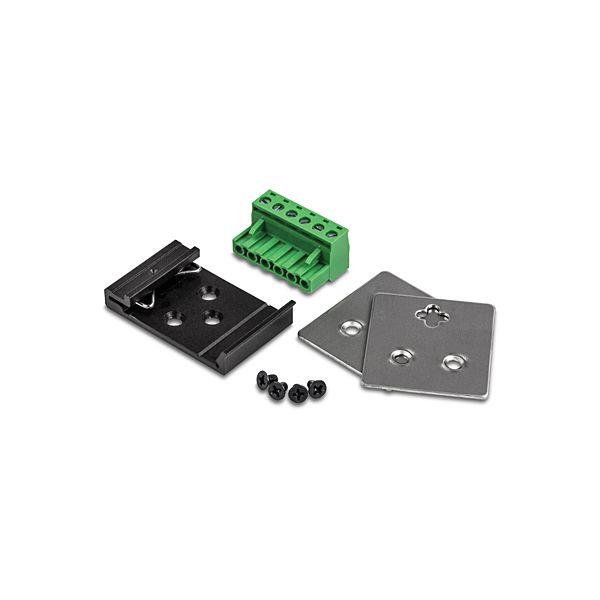

Wand montagekit
Ja
Klemmenblok inclusief
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990

Overige specificaties

Klemmenblokpoort
Ja
