Trendnet TI-TPG80 netwerk-switch Managed Power over Ethernet (PoE) Zwart

Trendnet TI-TPG80, Managed, Power over Ethernet (PoE)

Nog slechts 5 beschikbaar

Fabrikant Trendnet
MPN TI-TPG80
EAN 0710931161410
€ 552,00 excl. BTW

Trendnet TI-TPG80 netwerk-switch Managed Power over Ethernet (PoE) Zwart

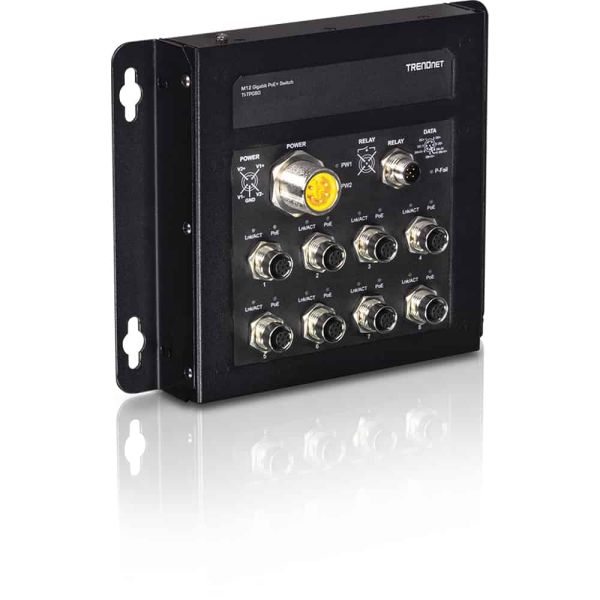

TRENDnet’s 8-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-TPG80, has eight M12 gigabit PoE+ ports with a total PoE budget of up to 200W. This M12 railway switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial EN50155 applications. This industrial M12 switch supports an input voltage range from 24 – 56V DC with M23 power interface and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications. Designed and tested for transportation and telco applications.

EN50155 Compliant
This M12 switch supports an input voltage range from 24 – 56V DC with M23 power and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications.

Industrial Design
Equipped with an IP40 rated metal enclosure, the M12 switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.

Power over Ethernet (PoE+)
Eight M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 200W@48V DC, or 100W@24V DC.
  • 8 x M12 Gigabit PoE+ ports
  • PoE power budget: 200W@48V DC; 100W@24V DC
  • EN50155 compliant for rolling stock and railway applications
  • Hardened IP40 rated metal housing
  • 16Gbps switching capacity
  • Includes wall mount brackets
  • Operating temperature range of -40° – 75° C (-40° – 167° F)
  • Dual redundant power inputs with overload current protection
  • Alarm relay triggered by power failure
  • Power supply sold separately (models: TI-S24048)
  • M12 and M23 cables sold separately (models: TI-TCD02 / TI-TCD06 / TI-TCP02 / TI-TCR02)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Port mirroring
Ja

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
Verzending snelheid
11,9 Mpps
MAC-adrestabel*
11000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
64 MB

Beveiliging

MAC adres filtering
Ja

Design

Rack-montage*
Nee
Kleur van het product
Zwart
LED-indicatoren
Ja
Certificering
CE FCC IEC EN 60950-1 Shock EN 60068-2-27 Freefall EN 60068-2-32 Vibration EN 60068-2-6 RailRoad EN 50155 / EN 50121-3 RailRoad EN 50155 / EN 50121-4

Prestatie

Mean time between failures (MTBF)
500000 uur

Energie

AC-ingangsspanning
100 - 240 V

Energie

DC voltage input
24 - 56 V
Stroom
1 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
8
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
200 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Luchtvochtigheid bij opslag
0 - 90 procent

Gewicht en omvang

Breedte
215 mm
Diepte
170 mm
Hoogte
53 mm
Gewicht
1,32 kg

Verpakking

Snelstartgids
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
