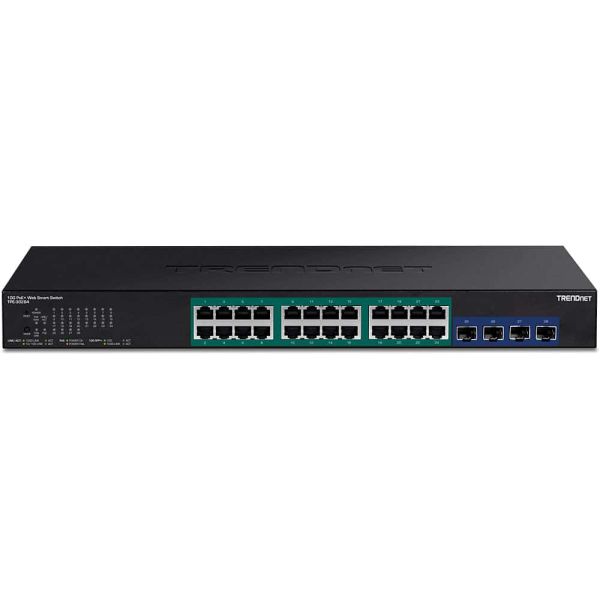

Trendnet TPE-30284 netwerk-switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Trendnet TPE-30284, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Nog slechts 6 beschikbaar

Fabrikant Trendnet
MPN TPE-30284
EAN 0710931161878
€ 408,00 excl. BTW

Trendnet TPE-30284 netwerk-switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

TRENDnet's Gigabit Web Smart PoE+ Switch series offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.
  • 24 x Gigabit PoE+ ports
  • 4 x 10G SFP+ slots
  • 370W PoE power budget
  • Easy-to-use web-based management interface
  • Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
  • IPv4/IPv6 Static Routing support
  • Bandwidth control per port
  • Private, Multicast, and Voice VLAN support
  • Smart Fans
  • 128Gbps switching capacity
  • IEEE 802.1p QoS with queue scheduling support

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2/L4
Quality of Service (QoS)
Ja
ARP-inspectie
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
4

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Ja
Port mirroring
Ja
Full duplex
Ja
Half-duplex
Ja
Verbindingsaggregatie
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Aantal VLANs
4094

Data-uitwisseling

Switchingcapaciteit*
128 Gbit/s
Verzending snelheid
95,2 Mpps
MAC-adrestabel*
16000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
12000
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP snooping
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
HTTPS, SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
Bescherming lus
Ja
IP-MAC-Port binding
Ja
Algoritmen wachtrijplanning
SP, Weighted Round Robin (WRR)

Multicast-functies

Multicast-ondersteuning
Ja

Multicast-functies

Multicast MAC adrestabel
256 entries

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
LED-indicatoren
Ja
Aantal ventilatoren
2 ventilator(en)
Certificering
CE FCC

Prestatie

Geluidsniveau
52,2 dB
Mean time between failures (MTBF)
287724 uur

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
23,7 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
24
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
440 mm
Diepte
249 mm
Hoogte
44 mm
Gewicht
3,94 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
