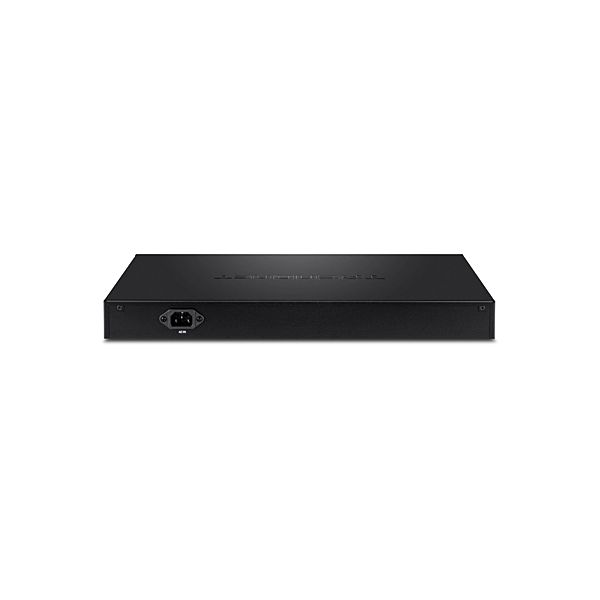

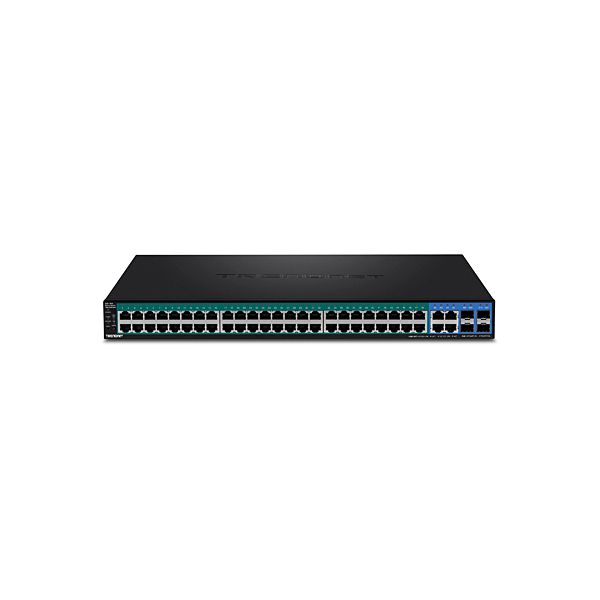

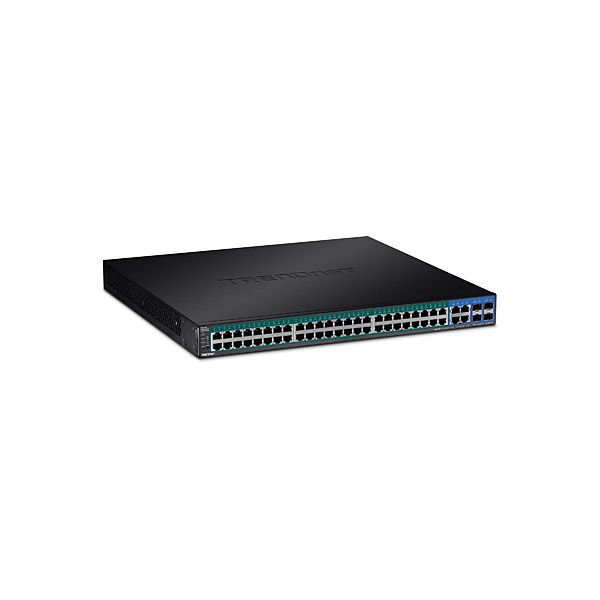

Trendnet TPE-5240WS netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Trendnet TPE-5240WS, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack-montage, 1U

Nog 3 beschikbaar (bel voor reservering)

Fabrikant Trendnet
MPN TPE-5240WS
EAN 0710931161144
€ 580,00 excl. BTW

Trendnet TPE-5240WS netwerk-switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch, model TPE-5240WS, delivers advanced management features with a 104Gbps switching capacity. This rack mountable IPv6 ready switch comes with an intuitive web-based interface. Advanced traffic management controls, troubleshooting, and SNMP monitoring make this a powerful solution for SMB networks. The TPE-5240WS provides 48 gigabit PoE+ ports with a total power budget of 370W, and four shared gigabit ports (RJ-45 or SFP). The PoE+ standard supplies up to 30W of power per port for devices such as high power wireless access points, PTZ (Pan Tilt Zoom) Internet cameras, and VoIP telephony systems.

Web Smart Management
Provides an easy-to-use web-based GUI management for reduced switch configuration complexity and offers a combination of SMB management features for easy deployment.

Integration Flexibility
Managed features include access control lists, VLAN, IGMP snooping, QoS, RMON, SNMP trap, and syslog for monitoring and flexible network integration.

PoE Power
A 370W PoE power budget supplies power to PoE/PoE+ devices.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
MIB-ondersteuning

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
4

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Port mirroring
Ja
Full duplex
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Spanning tree protocol
Ja
Head-of-line (HOL) blocking
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Private VLAN
Aantal VLANs
256

Data-uitwisseling

Switchingcapaciteit*
104 Gbit/s
Throughput
77,4 Mpps
MAC-adrestabel*
16000 entries
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
1,5 MB

Beveiliging

Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
802.1x RADIUS

Multicast-functies

Multicast-ondersteuning
Ja
Multicast MAC adrestabel
256 entries

Protocollen

Beheerprotocollen
HTTP/HTTPS (SSL v2/3 TLS), SNMP v1, v2c, v3, RMON v1, IPv6

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart
Materiaal behuizing
Metaal
LED-indicatoren
Ja
Aantal ventilatoren
3 ventilator(en)
Certificering
CE, FCC

Prestatie

Compatibele besturingssystemen
Windows 10, 8.1, 8, 7, Vista, XP, Windows 2003/2008 Server
Geluidsniveau
52,4 dB
Maximale overdrachtssnelheid van gegevens
2000 Mbit/s
Mean time between failures (MTBF)
239897 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
479 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Aantal Power over Ethernet plus (PoE +)-poorten
48
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent

Gewicht en omvang

Breedte
440 mm
Diepte
430 mm
Hoogte
44 mm
Gewicht
6,12 kg

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Rekbevestigingspakket
Ja
Ondersteunings-cd
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
