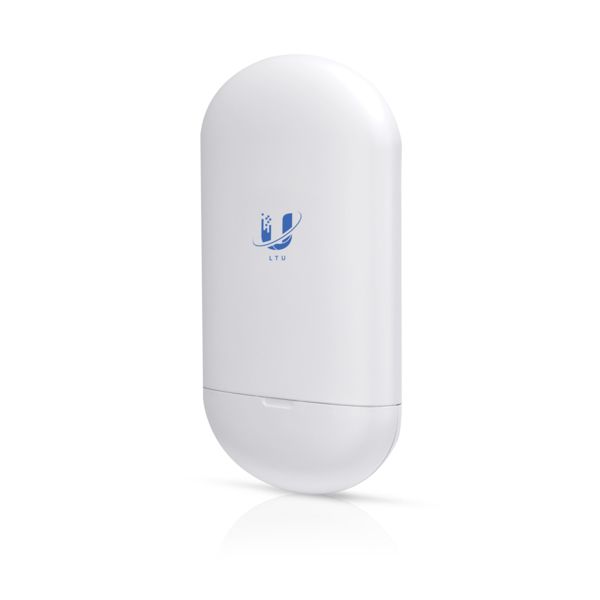

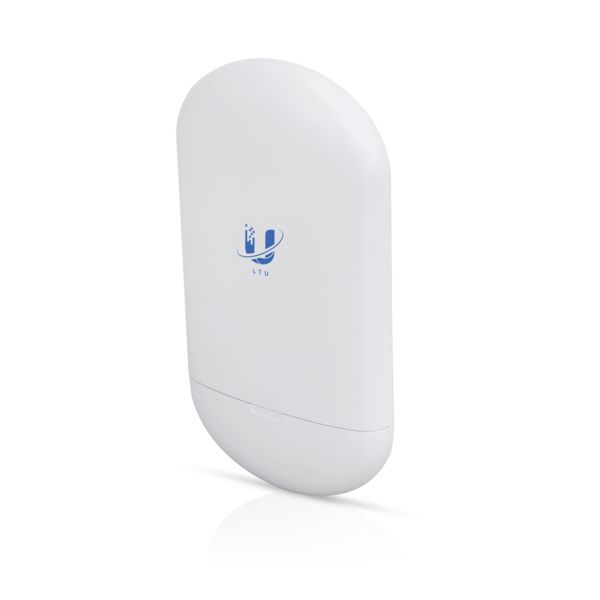

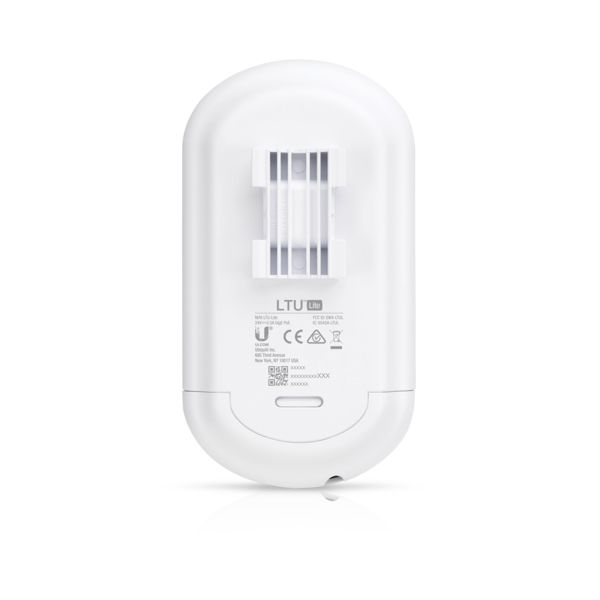

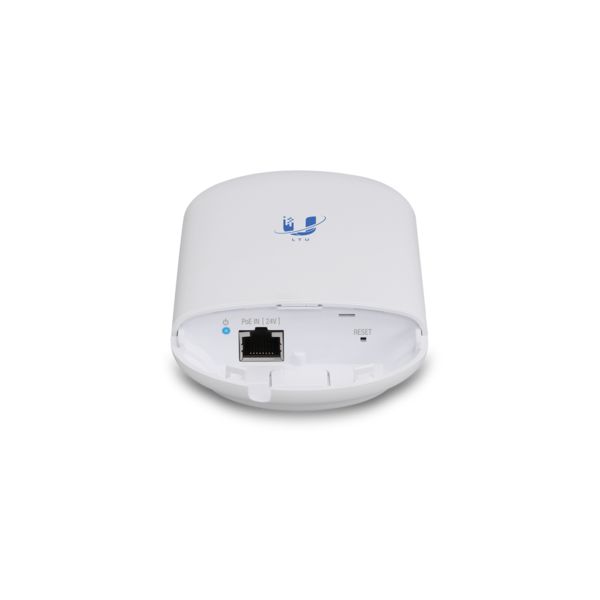

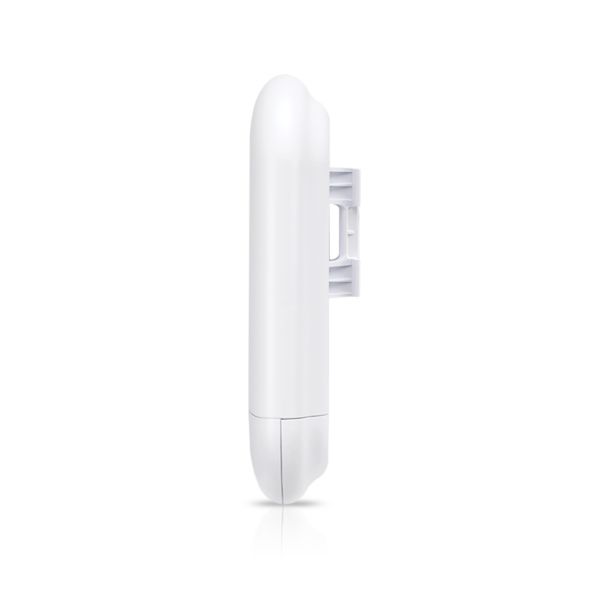

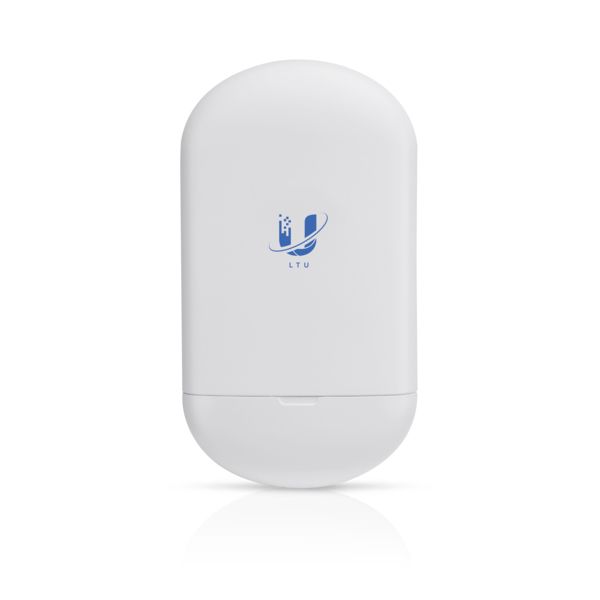

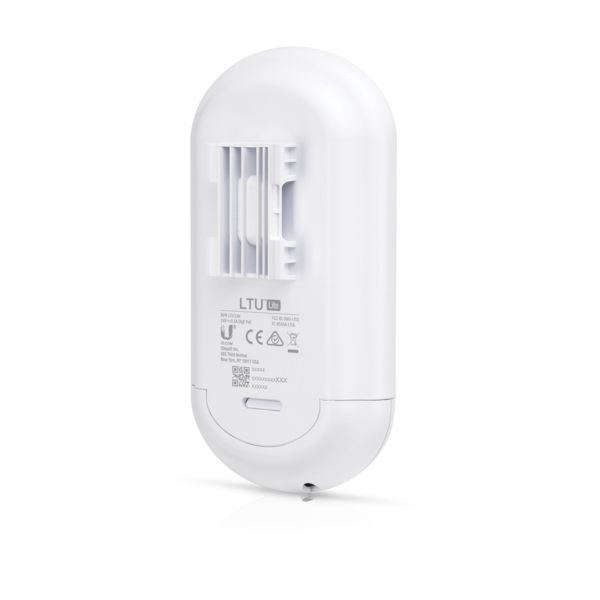

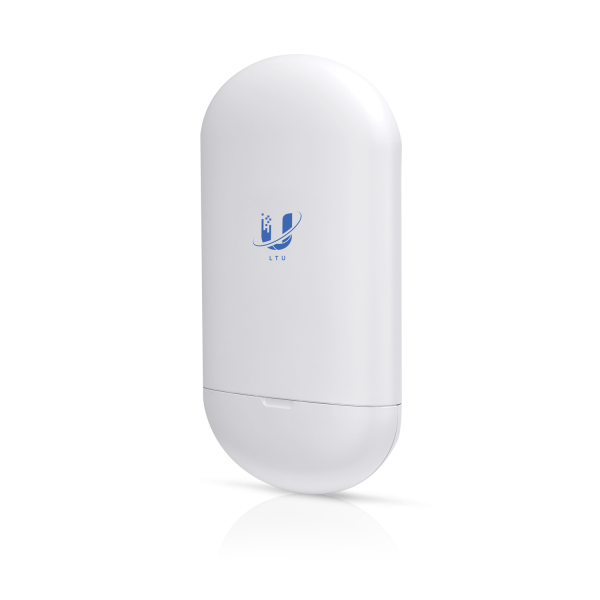

Ubiquiti LTU Lite 1000 Mbit/s Wit Power over Ethernet (PoE)

Ubiquiti LTU Lite, 1000 Mbit/s, 24 V, 0.5 A, 8,5 W, Paal, Wit

Ruim op voorraad

Fabrikant Ubiquiti
MPN LTU-LITE
EAN 0817882029872
€ 223,00 excl. BTW

Ubiquiti LTU Lite 1000 Mbit/s Wit Power over Ethernet (PoE)

5 GHz PtMP LTU Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation

Incorporating Ubiquiti’s proprietary LTU technology, the LTU-Lite is a 5 GHz radio with an integrated antenna design for use as a PtMP CPE. LTU technology breaks through the limitations of 802.11 Wi-Fi technology and supports 1024 QAM for superior performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.

Functions in a PtMP environment with the LTU-Rocket as the basestation
  • PtMP CPE
  • 1024 QAM
  • 10/20/30/40/50 MHz channel bandwidth
  • Central configuration management from AP side
  • Frequency split
  • Auto power adjustments
  • Router mode support

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

5 GHz*
Ja
Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
1

Energie

Power over Ethernet (PoE)*
Ja
AC-ingangsspanning
24 V
Stroom
0.5 A
Vermogensverbruik (max)
8,5 W

Design

Plaatsing*
Paal
Kleur van het product*
Wit
Certificering
CE, FCC, IC

Antenne

Soort antenne*
Intern
Antenne versterkingsniveau (max)
13 dBi

Gewicht en omvang

Breedte
84 mm
Diepte
39,5 mm
Hoogte
153 mm
Gewicht
250 g

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Inclusief PoE-adapter
Ja
Montage gereedschap
Nee
Snelstartgids
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 60 °C

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
