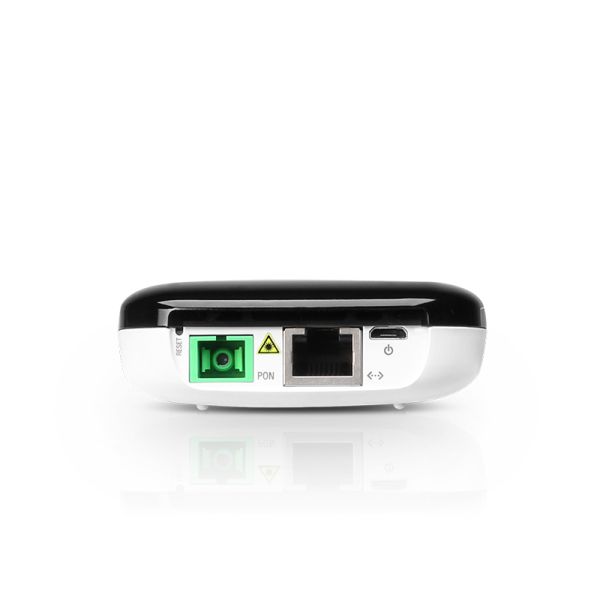

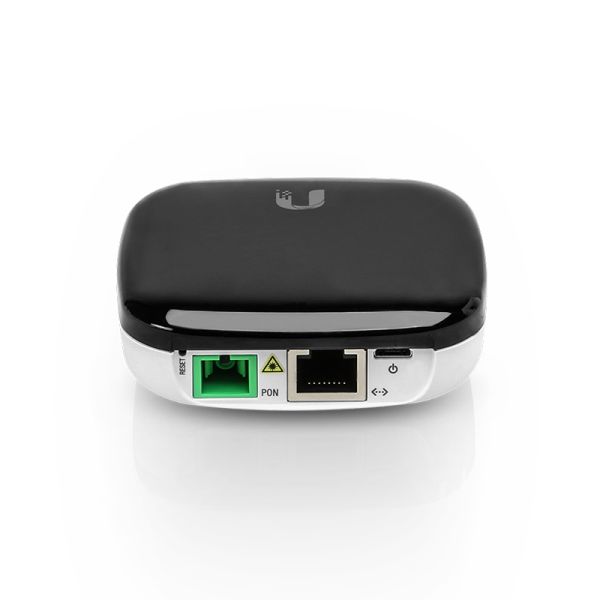

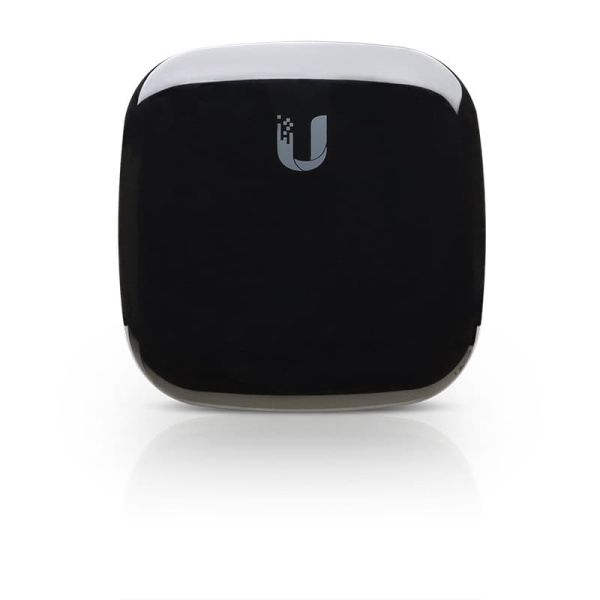

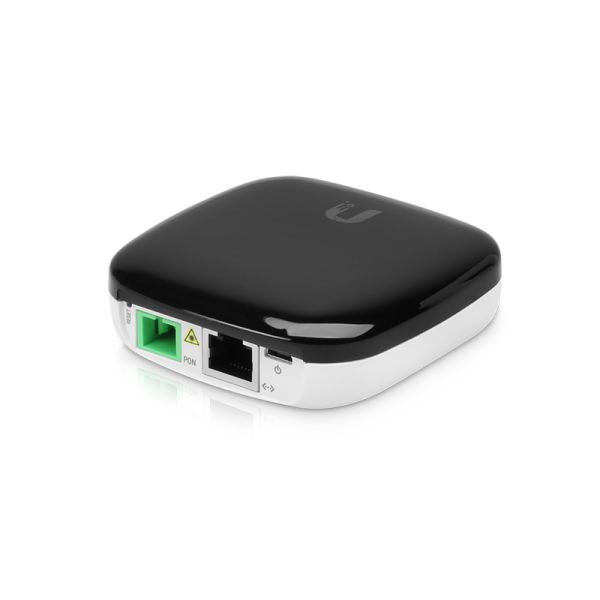

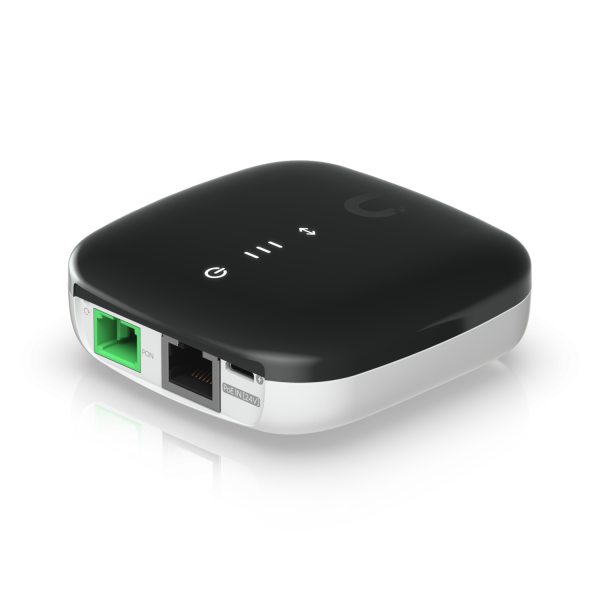

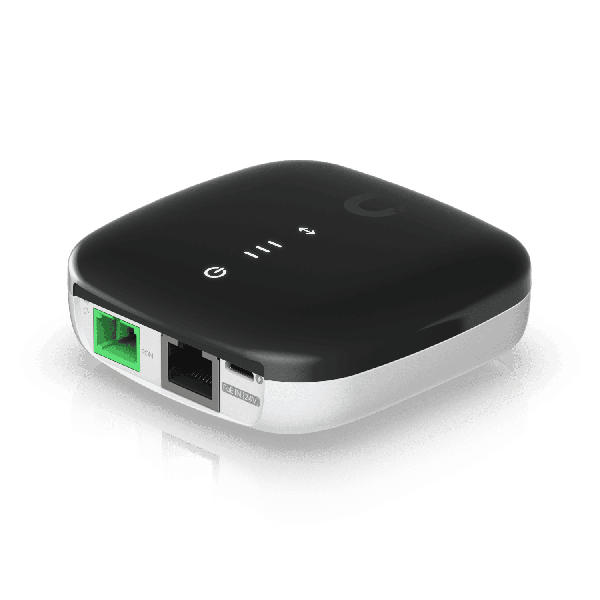

Ubiquiti UFiber Loco gateway/controller 10, 100, 1000 Mbit/s
Ubiquiti UFiber Loco, Zwart, Grijs, Stroom, CE, FCC, IC, 240 MHz, 10,100,1000 Mbit/s, 2,488 Gbit/s
Ruim op voorraad
Fabrikant
Ubiquiti
MPN
UF-LOCO
EAN
0817882021777
€ 124,00
excl. BTW
€ 124,00
excl. BTW
excl. BTW
Ubiquiti UFiber Loco gateway/controller 10, 100, 1000 Mbit/s
Low-Cost GPON Optical Network Unit
Sporting a sleek industrial design, the U Fiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and two power options.
Status LEDs
The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.
Versatile Power
The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE.
Designed for Integration
Up to 128 UFiber loco devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT and third-party OLT devices
Sporting a sleek industrial design, the U Fiber loco is a robust, high‑performance GPON CPE that features extremely low power consumption and two power options.
Status LEDs
The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.
Versatile Power
The UFiber loco can be powered by a Micro-USB Power Adapter (included) or 24V passive PoE.
Designed for Integration
Up to 128 UFiber loco devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber loco integrates with the UFiber OLT and third-party OLT devices
- High-Performance GPON CPE
- LED diodes for easy diagnostics
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features
- GPON WAN Port
- RJ45 Gigabit LAN Port
- SC/APC Fiber Connector
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
Kleur van het product*
Zwart, Grijs
LED-indicatoren
Stroom
Certificering
CE, FCC, IC
Prestatie
Type processor
Ja
Frequentie van processor
240 MHz
Aantal geïnstalleerde processoren
1
Netwerk
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Overdrachtssnelheid
2,488 Gbit/s
Poorten & interfaces
Aantal Ethernet LAN (RJ-45)-poorten
1
Beheerfuncties
Reset button
Ja
Energie
Stroomverbruik (typisch)
3,5 W
Ingangsspanning
24 V
Stroom
1 A
Power over Ethernet (PoE)
Ja
Gewicht en omvang
Gewicht
77 g
Afmetingen (B x D x H)
76,5 x 76,5 x 26,4 mm
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
-10 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
