Ubiquiti UniFi USW-ENTERPRISE-48-POE netwerk-switch Managed L3 2.5G Ethernet (100/1000/2500) Wit

Ubiquiti UniFi USW-ENTERPRISE-48-POE, Managed, L3, 2.5G Ethernet (100/1000/2500)

Ruim op voorraad

Fabrikant Ubiquiti
MPN USW-ENTERPRISE-48-POE
EAN 0810010074768
€ 1.870,00 excl. BTW

Ubiquiti UniFi USW-ENTERPRISE-48-POE netwerk-switch Managed L3 2.5G Ethernet (100/1000/2500) Wit

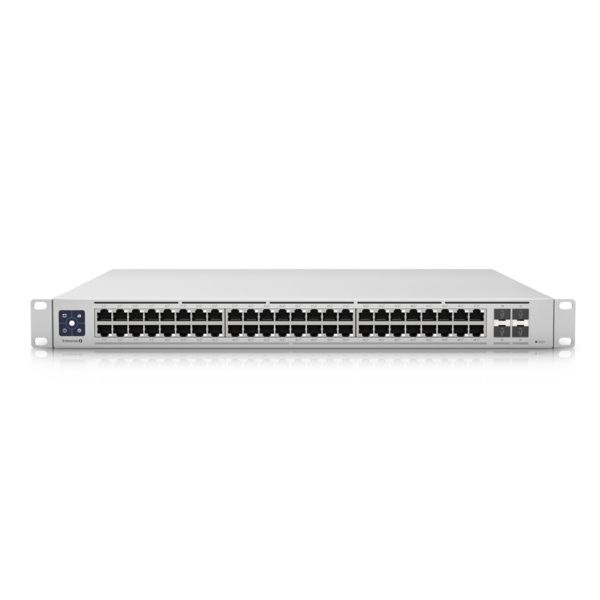

The Switch Enterprise 48 PoE (USW Enterprise 48 PoE) is a fully managed switch with (48) 2.5GbE, 802.3at PoE+ RJ45 ports, (4) 10G SFP+ ports, and a 720W total PoE supply. Along with its Layer 3 functionality, this switch offers an extensive suite of Layer 2 switching protocols, including port-specific operation modes (switching, mirroring, or aggregate).The USW Enterprise 48 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.

Additionally, the USW Enterprise 48 PoE offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
  • (1) 1.3" LCM color touchscreen with AR switch management
  • (48) 2.5GbE, 802.3at PoE+ RJ45 ports
  • (4) 10G SFP+ ports
  • (1) USP RPS DC input
  • 720W total PoE supply
  • Layer 3 switching features

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
2.5G Ethernet (100/1000/2500)
Aantal moduleslots SPF+
4

Netwerk

Netwerkstandaard*
IEEE 802.3af, IEEE 802.3at
10G support*
Ja

Data-uitwisseling

Switchingcapaciteit*
360 Gbit/s
Doorvoercapaciteit
160 Gbit/s
Verzending snelheid
238,095 Mpps

Design

Kleur van het product
Wit
Materiaal behuizing
Staal
Reset button
Ja

Energie

Stroombron*
AC/DC

Energie

Redundante voeding
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
52 V
Stroom
10 A

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-5 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent

Gewicht en omvang

Breedte
442 mm
Diepte
400 mm
Hoogte
44 mm
Gewicht
6,2 kg

Duurzaamheid

Duurzaamheidscertificaten
CE

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
