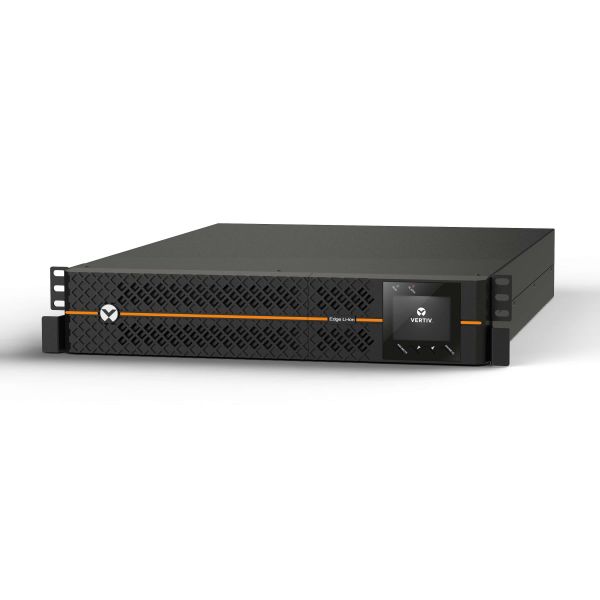

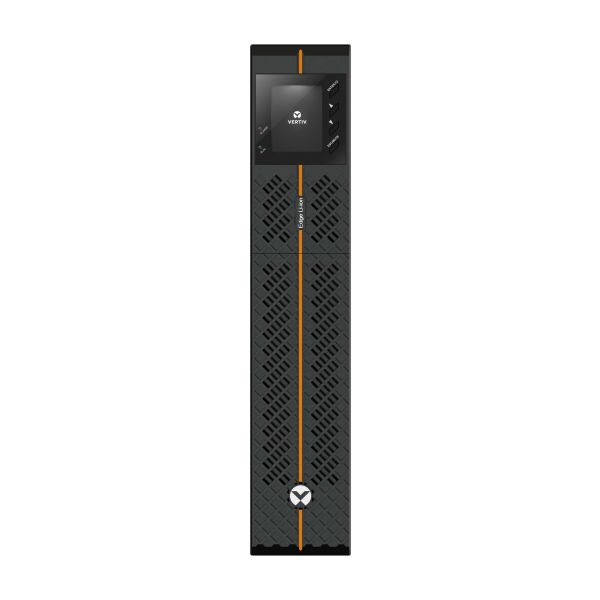

Vertiv EDGELI-3000IRT2U UPS Line-interactive 3 kVA 2700 W 6 AC-uitgang(en)

Vertiv EDGELI-3000IRT2U, Line-interactive, 3 kVA, 2700 W, Sinus, 166 V, 278 V

Niet op voorraad

Fabrikant Vertiv
MPN EDGELI-3000IRT2U
EAN 0767041033823
€ 2.482,00 excl. BTW

Vertiv EDGELI-3000IRT2U UPS Line-interactive 3 kVA 2700 W 6 AC-uitgang(en)

The Vertiv Edge Lithium Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in server rooms, network closets and other edge and distributed IT applications. This 3 kVA UPS offers lower total cost of ownership, which can be up to 50% savings over lifetime. Lithium-ion batteries have greater power density, last about 2-3 times as long, recharge quicker and endure up to x10 more discharge cycles than traditional valve-regulated-lead-acid (VLRA) batteries. It includes automatic voltage regulation (AVR) technology to further extend battery life and provides plenty of runtime on battery during an outage for an orderly shutdown. This set-it-and-forget-it single phase UPS system comes with a five-year standard warranty for UPS and batteries, and together with the optional webcard for remote management, becomes ideal for remote or unmanned locations. This rack/tower UPS comes with a rotating LCD display to allow both rack and tower configurations.
  • Hot-swappable user replaceable batteries increase the useable life of the UPS
  • Longer battery life (up to 3 times longer than VRLA) and fewer battery replacements
  • With high efficiency and flexible rack/tower form factor

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Line-interactive
Output power capacity*
3 kVA
Uitgangsvermogen*
2700 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
166 V
Ingang operation voltage (max)*
278 V
Frequentie*
45/65 Hz
Uitgang operation voltage (max)
240 V
Automatic Voltage Regulation (AVR)
Ja
Stroom (max.)
10 A
Surge energy rating
624 J
Responstijd
6 ms
Efficientie
98,5 procent
Power factor
0,9
Input vermogensfactor
0,9
Output vermogensfactor
0,9
Emergency Power Off (EPO)
Ja
EMI/RFI geluidsfiltering
Ja
Geluidsniveau
55 dB
Geluidsalarm(en)
Ja
Land van herkomst
China

Poorten & interfaces

Stopcontacttypes
C13 stekker, C19 stekker
Aantal AC uitgangen
6 AC-uitgang(en)
USB-poort
Ja

Accu/Batterij

Batterijtechnologie
Lithium-Ion (Li-Ion)
Typische backup tijd op volledige lading
10,5 min
Typische backup tijd op halve lading
22,6 min
Acculevensduur (max)
5 jaar

Accu/Batterij

Hot-swap batterij
Ja

Design

Vormfactor*
Rackmontage
Rackcapaciteit
2U
Kleur van het product*
Zwart
Type beeldscherm
LCD
LED-indicatoren
Diagnostisch
Certificering
CE, EAC, RCM, CB report, ISTA 2A, UN38.3

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-10 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
8 - 90 procent
Hoogte, in bedrijf
0 - 3000 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
438 mm
Diepte
630 mm
Hoogte
86 mm
Gewicht
24,3 kg
Breedte verpakking
600 mm
Diepte verpakking
800 mm
Hoogte verpakking
240 mm
Gewicht verpakking
32,1 kg

Verpakking

Meegeleverde kabels
Uitgangsstroomkabel, USB-kabel, Stroomingangskabel

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
