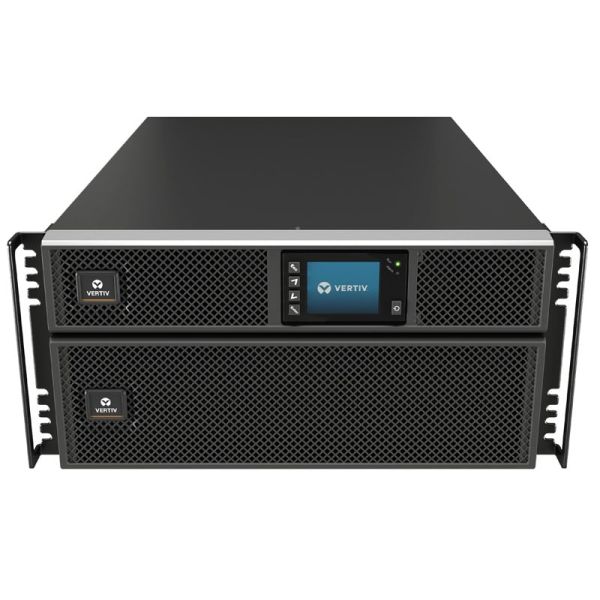

Vertiv Liebert GXT5-10KIRT5UXLN UPS Dubbele conversie (online) 10 kVA 10000 W 8 AC-uitgang(en)

Vertiv Liebert GXT5-10KIRT5UXLN, Dubbele conversie (online), 10 kVA, 10000 W, Zuivere sinus, 176 V, 288 V

Nog 1 beschikbaar (bel voor reservering)

Fabrikant Vertiv
MPN GXT5-10KIRT5UXLN
EAN 0767041026696
€ 6.918,00 excl. BTW

Vertiv Liebert GXT5-10KIRT5UXLN UPS Dubbele conversie (online) 10 kVA 10000 W 8 AC-uitgang(en)

The Liebert GXT5 UPS in an on-line double conversion USP solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. This single phase UPS operates with a high power efficiency and it is ideally suited to protect critical infrastructure in both centralized and edge of network applications.
  • Top level on-line double conversion UPS for mission-critical applications
  • Available in 5-6-8-10 kVA ratings
  • Unity output power factor
  • LCD multi-language color display (gravity sensing)
  • On-line (VFI) mode efficiency up to 95% at full load
  • Active ECO mode efficiency up to 98%
  • Energy® Star 2.0 certified

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
10 kVA
Uitgangsvermogen*
10000 W
Golfvorm*
Zuivere sinus
Ingang operation voltage (min)*
176 V
Ingang operation voltage (max)*
288 V
Frequentie*
50/60 Hz
Uitgang operation voltage (min)
230 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
3 procent
Aantal input fases
1
Aantal output fases
1
Efficientie
95 procent
Efficiëntie (On-line modus)
95 procent
Power factor
1
Input vermogensfactor
0,99
Output vermogensfactor
1
Emergency Power Off (EPO)
Ja
Geluidsniveau
55 dB
Stroomspanning bescherming
Overbelasting
Geluidsalarm(en)
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker, C19 stekker, IEC 320, Eindstation
Stekker
Eindstation
Aantal AC uitgangen
8 AC-uitgang(en)
USB-poort
Ja
Seriële poort(en)
1
RS-232 port
1

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Batterij capaciteit
9 Ah
Accu/Batterij voltage
12 V
Ondersteund aantal accu's/batterijen
16
Typische backup tijd op volledige lading
2 min
Typische backup tijd op halve lading
7 min
Hot-swap batterij
Ja

Design

Vormfactor*
Rackmontage/toren
Rackcapaciteit
5U
Type koeling
Actief
Kleur van het product*
Zwart
Type beeldscherm
LCD
Internationale veiligheidscode (IP)
IP20
Veiligheid
IEC62040-1:2008
Certificering
CE, EMI/EMC/C-Tick EMC, ESD

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
430 mm
Diepte
630 mm
Hoogte
217 mm
Gewicht
74,5 kg
Breedte verpakking
646 mm
Diepte verpakking
816 mm
Hoogte verpakking
520 mm
Gewicht verpakking
93 kg
