Vertiv Liebert GXT5 UPS Dubbele conversie (online) 3 kVA 3000 W 7 AC-uitgang(en)

Vertiv Liebert GXT5, Dubbele conversie (online), 3 kVA, 3000 W, Zuivere sinus, 115 V, 288 V

Niet op voorraad

Fabrikant Vertiv
MPN GXT5-3000IRT2UXL
EAN 0767041026580
€ 2.641,00 excl. BTW

Vertiv Liebert GXT5 UPS Dubbele conversie (online) 3 kVA 3000 W 7 AC-uitgang(en)

The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a two-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.
  • Reliable, easy-to-manage power protection and battery backup with 3000VA (3000W) capacity
  • Highest power factor available on standard input connections
  • Four individual programmable output receptacle for device control and management for optimum battery usage

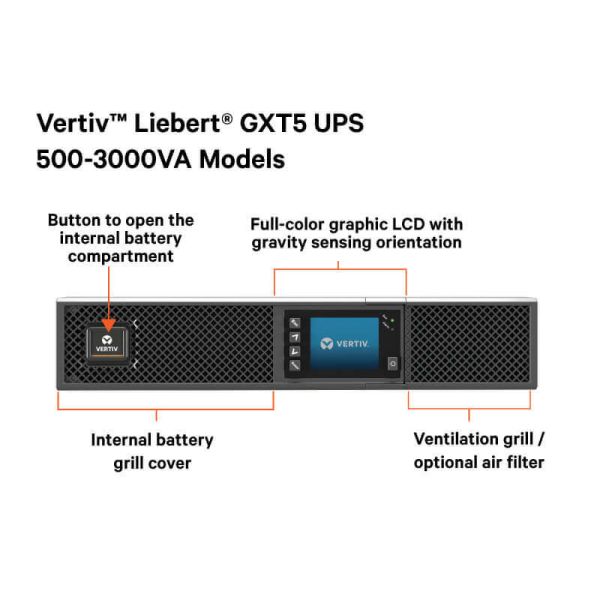

  • Its user-friendly interface includes color graphic display with gravity sensing feature
  • 2019 ENERGY STAR 2.0 certified and has higher operating efficiency in standard and eco-mode

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
3 kVA
Uitgangsvermogen*
3000 W
Golfvorm*
Zuivere sinus
Ingang operation voltage (min)*
115 V
Ingang operation voltage (max)*
288 V
Frequentie*
50/60 Hz
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
3 procent
Aantal input fases
1
Aantal output fases
1
Efficientie
95 procent
Efficiëntie (On-line modus)
95 procent
Efficiëntie (ECO-modus)
98 procent
Input vermogensfactor
0,99
Emergency Power Off (EPO)
Ja
Geluidsniveau
58 dB
Stroomspanning bescherming
Overbelasting
Geluidsalarm(en)
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker, C19 stekker
Aantal AC uitgangen
7 AC-uitgang(en)
USB-poort
Ja
Soort serieële aansluiting
RS-232, RS-485
Seriële poort(en)
1

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Batterij capaciteit
9 VAh
Accu/Batterij voltage
12 V
Typische backup tijd op volledige lading
3 min
Typische backup tijd op halve lading
9 min
Accu/Batterij oplaadtijd
3 uur
Hot-swap batterij
Ja

Design

Vormfactor*
Rackmontage/toren
Kleur van het product*
Zwart
Type beeldscherm
LCD
Internationale veiligheidscode (IP)
IP20
Veiligheid
IEC62040-1:2008, GS; UL1778, c-UL
Certificering
IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI)

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-15 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 95 procent
Luchtvochtigheid bij opslag
0 - 95 procent
Hoogte, in bedrijf
0 - 3000 m

Technische details

Duurzaamheidscertificaten
RoHS, ENERGY STAR

Gewicht en omvang

Breedte
430 mm
Diepte
540 mm
Hoogte
85 mm
Gewicht
28,2 kg
Breedte verpakking
517 mm
Diepte verpakking
617 mm
Hoogte verpakking
262 mm
Gewicht verpakking
33 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Type batterij
VRLA
Output-aansluitingen
IEC320 C13 & C19
Input-connectietype
C20
Netspanning, in bedrijf
230 V
Nominale input voltage
230 V
Relatieve luchtvochtigheid bij opslag (geen condensering)
0 - 95 procent
Overbelastingsprotectie
Ja
Bypass
Yes
