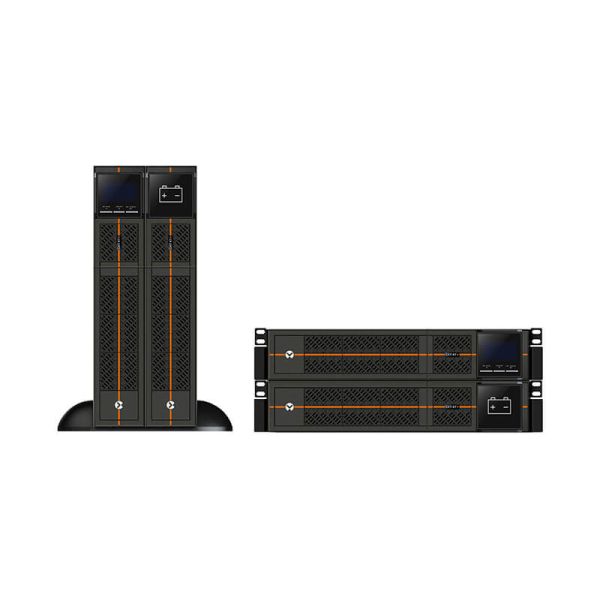

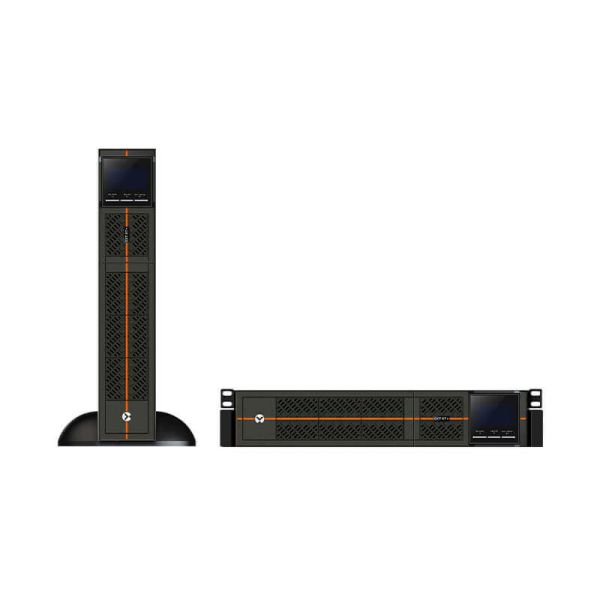

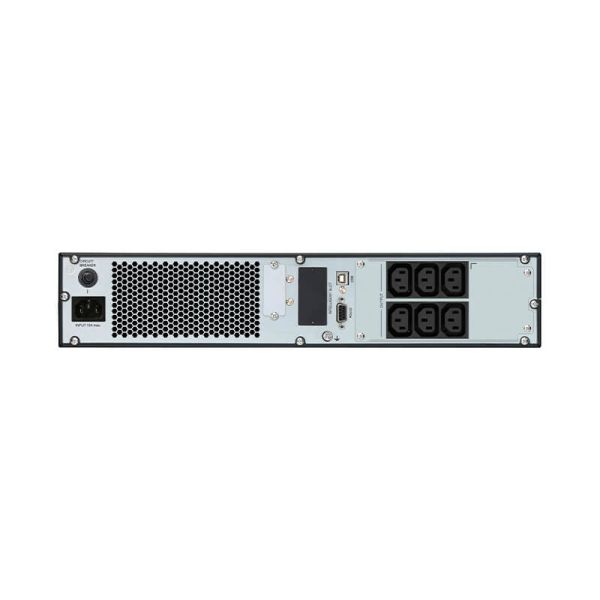

Vertiv Liebert GXTRT-1000IRT2UXL UPS Dubbele conversie (online) 1 kVA 900 W 6 AC-uitgang(en)

Vertiv Liebert GXTRT-1000IRT2UXL, Dubbele conversie (online), 1 kVA, 900 W, Zuivere sinus, 176 V, 288 V

Niet op voorraad

Fabrikant Vertiv
MPN GXTRT-1000IRT2UXL
EAN 0767041030945
€ 690,00 excl. BTW

Vertiv Liebert GXTRT-1000IRT2UXL UPS Dubbele conversie (online) 1 kVA 900 W 6 AC-uitgang(en)

The Vertiv Liebert GXT RT+ Uninterruptible Power Supply (UPS) (GXTRT-1000IRT2UXL) offers online technology with two stages of power conversion for high performance yet affordable power protection. It is ideal for edge or space-constrained facilities where reliable, efficient power protection is needed to ensure business continuity. This 1kVA, single phase UPS has flexible rack or tower mounting options, intuitive LCD and compact form factor that enable rapid deployment and seamless network integration.
  • Improved utilization enabled by high 0.9 power factor
  • Automatic bypass allows the load to transfer to the mains in case of an overload or internal fault
  • Option of rack or tower mounting supports simplified UPS selection and deployment
  • Adapts to areas with unstable power-mains supply via double conversion topology structure
  • Intuitive LCD provides complete UPS status and configuration information at a glance

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
1 kVA
Uitgangsvermogen*
900 W
Golfvorm*
Zuivere sinus
Ingang operation voltage (min)*
176 V
Ingang operation voltage (max)*
288 V
Frequentie*
40 - 70 Hz
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
1 procent
Aantal input fases
1
Aantal output fases
1
Efficientie
88 procent
Efficiëntie (On-line modus)
88 procent
Power factor
0,9
Input vermogensfactor
0,9
Output vermogensfactor
0,9
Emergency Power Off (EPO)
Nee
Geluidsniveau
55 dB
Stroomspanning bescherming
Overbelasting
Geluidsalarm(en)
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker
Stekker
C14 stekker
Aantal AC uitgangen
6 AC-uitgang(en)
Number of output IEC jumpers
6
USB-poort
Ja
Seriële poort(en)
1

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Batterij capaciteit
9 Ah
Accu/Batterij voltage
12 V
Ondersteund aantal accu's/batterijen
2
Typische backup tijd op volledige lading
3,1 min
Typische backup tijd op halve lading
9 min
Hot-swap batterij
Ja

Design

Vormfactor*
Rackmontage
Rackcapaciteit
2U
Kleur van het product*
Zwart
Type beeldscherm
LCD
Veiligheid
CE
Certificering
CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 95 procent
Luchtvochtigheid bij opslag
10 - 90 procent
Hoogte, in bedrijf
0 - 2000 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
438 mm
Diepte
310 mm
Hoogte
88 mm
Gewicht
11 kg
Breedte verpakking
600 mm
Diepte verpakking
240 mm
Hoogte verpakking
500 mm
Gewicht verpakking
13,1 kg

Verpakking

Rekbevestigingspakket
Ja
Meegeleverde kabels
Stroomingangskabel, Uitgangsstroomkabel, USB-kabel
Gebruikershandleiding
Ja
Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
(Binnenste) verzendverpakking breedte
50 cm
(Binnenste) verzendverpakking lengte
60 cm
(Binnenste) verzendverpakking hoogte
24 cm
(Binnenste) verzendverpakking gewicht
13,1 kg
