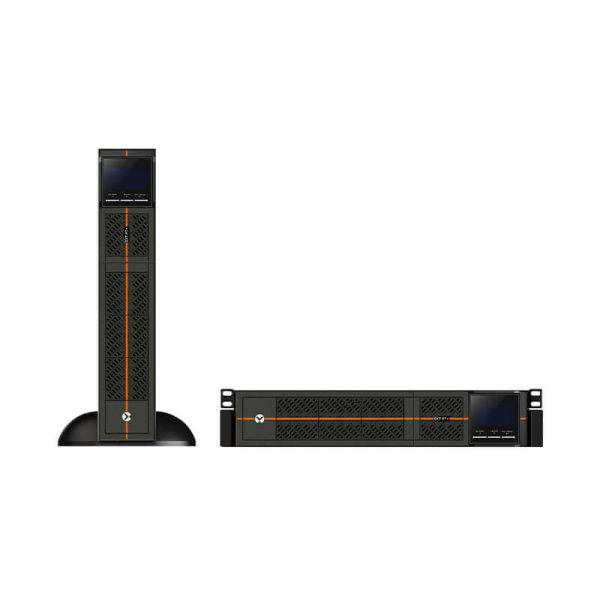

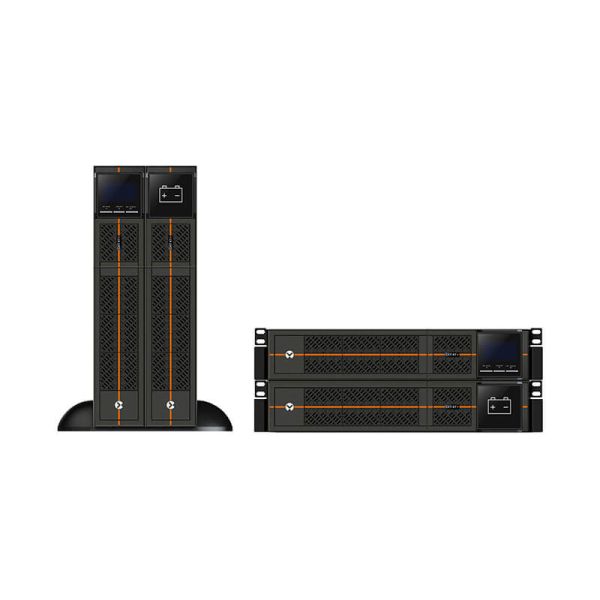

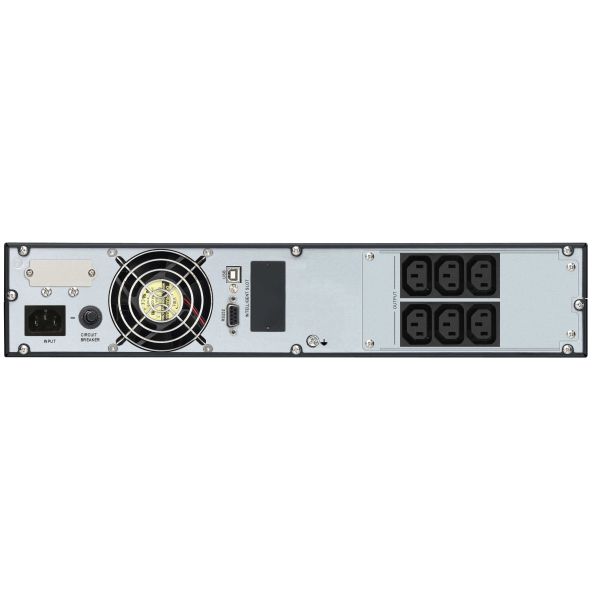

Vertiv Liebert GXTRT-2000IRT2UXL UPS Dubbele conversie (online) 2 kVA 1800 W 6 AC-uitgang(en)

Vertiv Liebert GXTRT-2000IRT2UXL, Dubbele conversie (online), 2 kVA, 1800 W, Zuivere sinus, 178 V, 288 V

Niet op voorraad

Fabrikant Vertiv
MPN GXTRT-2000IRT2UXL
EAN 0767041030969
€ 1.112,00 excl. BTW

Vertiv Liebert GXTRT-2000IRT2UXL UPS Dubbele conversie (online) 2 kVA 1800 W 6 AC-uitgang(en)

The Vertiv Liebert GXT RT+ Uninterruptible Power Supply (UPS) (GXTRT-2000IRT2UXL) is an online double conversion solution and a high quality battery backup. With a power capacity of 2kVA, it delivers the high-performance protection you need. The high 0.9 power factor of this single-phase UPS enables continuous, reliable power to more connected devices from a wide range of input voltages while being energy efficient and, delivering maximum value. This 1ph UPS adapts to areas with unstable power-mains supply and offers an optional tower or rack mount to meet varying installation requirements. The simplified installation with at-a-glance configuration information offers you a user-friendly interface (LCD) to work with. This model has a IEC60320 C14 INLET Connector Type and has 6 locking C13 receptacles. The ECO power-supply mode helps you save the maximum amount of energy which drives cost savings.
  • Has high output power factor (0.9) which means more usable power that allows more connected loads
  • This compact design UPS is ideal for space-constrained or edge of network deployments
  • The intuitive LCD offers at-a-glance configuration information and user-friendly interface
  • High efficiency ECO mode of up to 95% helps to achieve energy savings and a lower TCO
  • Connected modules allows scalable runtime during failure of main utility power

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
2 kVA
Uitgangsvermogen*
1800 W
Golfvorm*
Zuivere sinus
Ingang operation voltage (min)*
178 V
Ingang operation voltage (max)*
288 V
Frequentie*
40 - 70 Hz
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
1 procent
Aantal input fases
1
Aantal output fases
1
Efficientie
89 procent
Efficiëntie (On-line modus)
89 procent
Power factor
0,9
Input vermogensfactor
0,9
Output vermogensfactor
0,9
Emergency Power Off (EPO)
Nee
Geluidsniveau
55 dB
Stroomspanning bescherming
Overbelasting
Geluidsalarm(en)
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker
Stekker
C14 stekker
Aantal AC uitgangen
6 AC-uitgang(en)
USB-poort
Ja
Seriële poort(en)
1

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Batterij capaciteit
9 Ah
Accu/Batterij voltage
12 V
Ondersteund aantal accu's/batterijen
4
Typische backup tijd op volledige lading
3,2 min
Typische backup tijd op halve lading
9 min
Hot-swap batterij
Ja

Design

Vormfactor*
Rackmontage
Rackcapaciteit
2U
Kleur van het product*
Zwart
Type beeldscherm
LCD
Veiligheid
CE
Certificering
CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 95 procent
Luchtvochtigheid bij opslag
10 - 90 procent
Hoogte, in bedrijf
0 - 2000 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
438 mm
Diepte
462 mm
Hoogte
88 mm
Gewicht
18,2 kg
Breedte verpakking
700 mm
Diepte verpakking
240 mm
Hoogte verpakking
565 mm
Gewicht verpakking
20,7 kg

Verpakking

Rekbevestigingspakket
Ja
Meegeleverde kabels
Stroomingangskabel, Uitgangsstroomkabel, Stroombelastingskabel, USB-kabel
Gebruikershandleiding
Ja
Snelle installatiehandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
(Binnenste) verzendverpakking breedte
56,5 cm
(Binnenste) verzendverpakking lengte
70 cm
(Binnenste) verzendverpakking hoogte
24 cm
(Binnenste) verzendverpakking gewicht
20,7 kg
