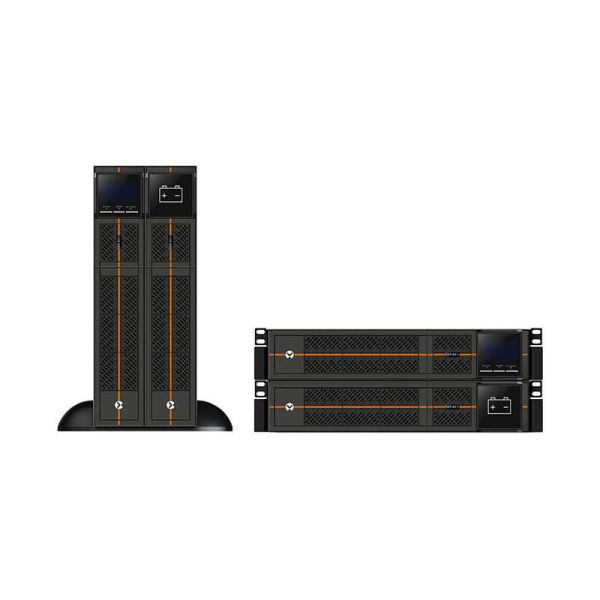

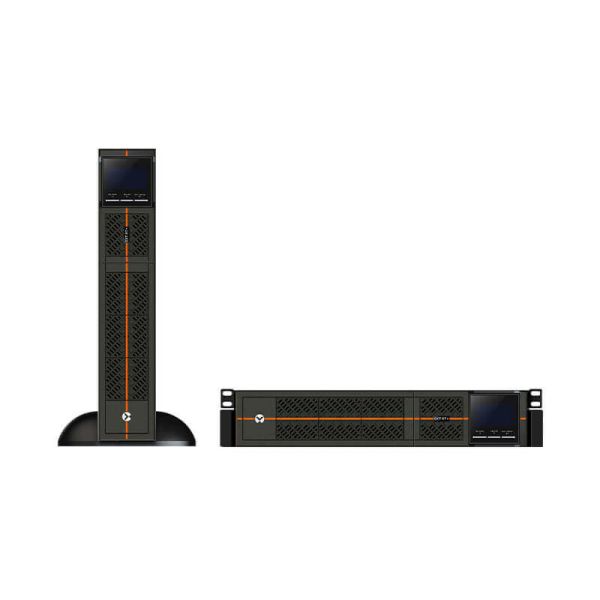

Vertiv Liebert GXTRT-3000IRT2UXL UPS Dubbele conversie (online) 3 kVA 2700 W 7 AC-uitgang(en)

Vertiv Liebert GXTRT-3000IRT2UXL, Dubbele conversie (online), 3 kVA, 2700 W, Zuivere sinus, 179 V, 288 V

Niet op voorraad

Fabrikant Vertiv
MPN GXTRT-3000IRT2UXL
EAN 0767041030976
€ 1.367,00 excl. BTW

Vertiv Liebert GXTRT-3000IRT2UXL UPS Dubbele conversie (online) 3 kVA 2700 W 7 AC-uitgang(en)

The Vertiv Liebert GXT RT+ Uninterruptible Power Supply (UPS) (GXTRT-3000IRT2UXL) is an online double conversion solution which delivers the high-performance protection you need. With a 3kVA power capacity, this UPS offers power protection in an affordable, efficient system with deployment and operation flexibility. The high 0.9 power factor of this single-phase UPS enables continuous, reliable power to more connected devices from a wide range of input voltages while being energy efficient and delivering maximum value. It also offers an optional tower or rack mount to meet varying installation requirements. The automatic bypass, allows the load to transfer to the mains, in case of an overload or internal fault, ensuring safe power protection to equipment, deployed at the edge/networks or in space-constrained facilities. The high efficiency ECO mode of up to 95% helps to achieve energy savings and a lower TCO.
  • Has high output power factor (0.9) which means more usable power that allows more connected loads
  • This compact design UPS is ideal for space-constrained or edge of network deployments
  • Reliable, easy to manage power protection with automatic bypass feature
  • High efficiency ECO mode of up to 95% helps to achieve energy savings and a lower TCO
  • Connected modules allows scalable runtime during failure of main utility power

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
3 kVA
Uitgangsvermogen*
2700 W
Golfvorm*
Zuivere sinus
Ingang operation voltage (min)*
179 V
Ingang operation voltage (max)*
288 V
Frequentie*
40 - 70 Hz
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Uitgangsspanningsregeling
1 procent
Aantal input fases
1
Aantal output fases
1
Efficientie
90 procent
Efficiëntie (On-line modus)
90 procent
Power factor
0,9
Input vermogensfactor
0,9
Output vermogensfactor
0,9
Emergency Power Off (EPO)
Nee
Geluidsniveau
55 dB
Stroomspanning bescherming
Overbelasting
Geluidsalarm(en)
Ja

Poorten & interfaces

Stopcontacttypes
C13 stekker, C19 stekker
Stekker
C14 stekker
Aantal AC uitgangen
7 AC-uitgang(en)
USB-poort
Ja
Seriële poort(en)
1

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Batterij capaciteit
9 Ah
Accu/Batterij voltage
12 V

Accu/Batterij

Ondersteund aantal accu's/batterijen
6
Typische backup tijd op volledige lading
3,3 min
Typische backup tijd op halve lading
11 min
Hot-swap batterij
Ja

Design

Vormfactor*
Rackmontage
Rackcapaciteit
2U
Kleur van het product*
Zwart
Type beeldscherm
LCD
Veiligheid
CE
Certificering
CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 50 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 95 procent
Luchtvochtigheid bij opslag
10 - 90 procent
Hoogte, in bedrijf
0 - 2000 m

Technische details

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
438 mm
Diepte
632 mm
Hoogte
88 mm
Gewicht
27,6 kg
Breedte verpakking
760 mm
Diepte verpakking
240 mm
Hoogte verpakking
600 mm
Gewicht verpakking
31,2 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
