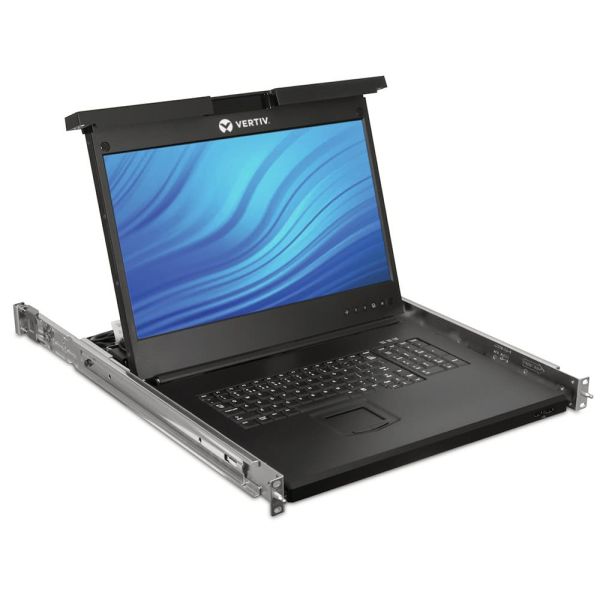

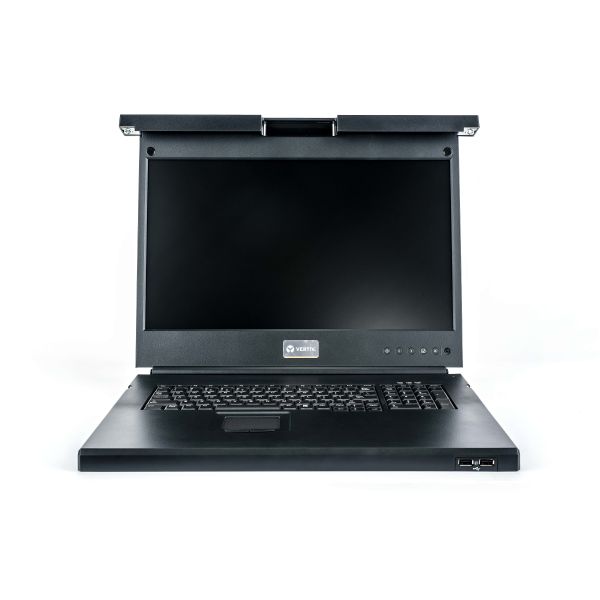

Vertiv Avocent 19”-LCD-console voor toegang tot lokale rack, USB KB, 2 USB PASS-FRA

Vertiv Avocent 19”-LCD-console voor toegang tot lokale rack, USB KB, 2 USB PASS-FRA, 48,3 cm (19"), 1366 x 768 Pixels, TFT, 250 cd/m², 1000:1, 41 cm

Niet op voorraad

Fabrikant Vertiv
MPN LRA185KMM-204
EAN 0636430076225
€ 1.291,00 excl. BTW

Vertiv Avocent 19”-LCD-console voor toegang tot lokale rack, USB KB, 2 USB PASS-FRA

Avocent LCD-console voor toegang tot lokaal rack
De Avocent LRA Console biedt eenvoud, efficiëntie en gebruiksgemak om als perfect datacentertoegangspunt te functioneren. De productlijn LRA maakt gemakkelijke toegang tot meerdere servers zowel voor software-upgrades, probleemoplossing en systeembewaking praktisch en minder omslachtig.
  • Form Factor - 1U Space
  • Ease of use - Full desktop style keyboard with number pad, touch pad and 2 USB2.0 pass through ports
  • Environmentally responsible - Low power usage during operation and standby
  • Global availability - Certifications and keyboard language support

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal
48,3 cm (19")
Resolutie
1366 x 768 Pixels
Beeldscherm
TFT
Helderheid
250 cd/m²
Typische contrastverhouding
1000:1
Grootte beeld (horizontaal)
41 cm
Grootte beeld (verticaal)
23 cm
Kijkhoek, horizontaal
170°
Kijkhoek, verticaal
160°
Grootte beeld (diagonaal)
47 cm
On Screen Display (OSD)
Ja
Pixel pitch
300 x 300 mm
Beeldverhouding
1:1, 16:9
Type beeldscherm
TFT
Aantal On Screen Display-talen
7

Technische details

Materiaal
Kunststof, Staal
Plug and play
Ja
Hoogte (in Rack Units)
1
Maat
48,3 cm (19")
Kleur van het product
Zwart
Relatieve vochtigheid in bedrijf (V-V)
10 - 80 procent
Ingebouwde KVM schakelaar
Nee
Maximum resolutie
1600 x 1200 Pixels
Bedrijfstemperatuur, bereik
0 - 50 °F
Relatieve luchtvochtigheid
10 - 80 procent
Rack-montage
Ja
Display connectie
Ja
Aantal computers
1
Aan/uitschakelaar
Ja
Knoppen
Auto, Menu
LED-indicatoren
Ja
Rackcapaciteit
1U

Poorten & interfaces

Interface
USB
Aansluiting toetsenbord
USB
Aansluiting muis
USB
Aansluiting video
VGA

Poorten & interfaces

Aantal USB 2.0 Type-A-poorten
2

Toetsenbord

Aantal toetsen, toetsenbord
103
Ingebouwde touchpad
Ja
Taal toetsenbord
Frans
Toetsenbordindeling
AZERTY

Certificaten

Certificering
UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC\nFCC Class A

Energie

Soort voeding
AC
Stroomverbruik (typisch)
17 W
Stroomverbruik (in standby)
0,5 W
AC-adapter ingangsspanning
90 - 264 V
AC-adapter, uitgangsspanning
12 V
AC-adapterfrequentie
50 - 60 Hz
Output current
3,3 A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 70 °C

Gewicht en omvang

Breedte
482,6 mm
Hoogte
44,5 mm
Diepte
533,4 mm
Gewicht
9,98 kg
Inbouwdiepte (min)
61,3 cm
Inbouwdiepte (max)
70,6 cm

Verpakking

Gewicht verpakking
15,4 kg
Afmetingen verpakking (BxDxH)
749,3 x 584,2 x 216 mm

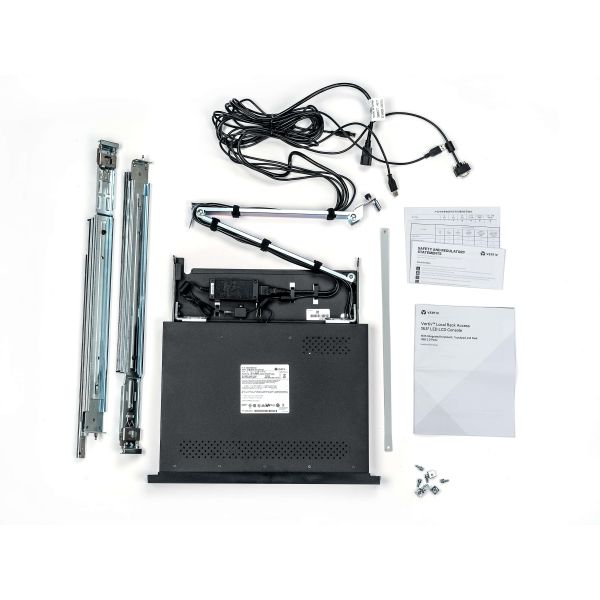

Inhoud van de verpakking

Meegeleverde kabels
USB, VGA
Montagebeugels meegeleverd
Ja
Snelle installatiehandleiding
Ja
Inclusief AC-adapter
Ja
Rekbevestigingspakket
Ja
Type verpakking
Doos
