Vertiv Liebert APS POD - with (2) IEC320-C19, (8) IEC320-C13 output sockets energiedistributie 10 AC-uitgang(en)

Vertiv Liebert APS POD - with (2) IEC320-C19, (8) IEC320-C13 output sockets, Eenfasig, 10 AC-uitgang(en), C13 stekker, C19 stekker, 63 A, 188 mm, 145 mm

Niet op voorraad

Fabrikant Vertiv
MPN PD2-201
EAN 0813829015793
€ 356,00 excl. BTW

Vertiv Liebert APS POD - with (2) IEC320-C19, (8) IEC320-C13 output sockets energiedistributie 10 AC-uitgang(en)

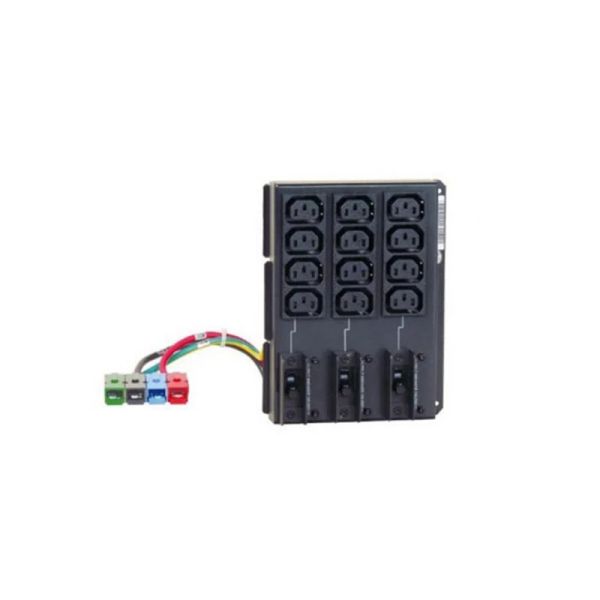

The Vertiv Liebert POD PD2-201 is a power output distribution (POD) unit with built-in maintenance bypass feature. Designed for the GXT4 8-10kVA & GXT5 16-20kVA uninterruptible power supply (UPS) models, it is a POD that allows you to conduct UPS maintenance or replacements without power interruption to the connected load. It also automatically transfers the current from the UPS to the original power source in cases of UPS failures, saving your equipment from unnecessary downtimes and ensuring continuous uptime for your system. The PD2-201 is a plug-and-play unit that will replace the existing POD box on your UPS. It has two (2) IEC320-C19 and eight (8) IEC320-C13 output connectors and is equipped with a Hardwire 3W + G(L-L-N-G) input connector. It also has circuit breakers and supports a max current of 63A.
  • Power output distribution unit with UPS maintenance bypass feature
  • Avoid intiating unnecessary downtimes while conducting UPS maintenance
  • Easy plug-and-play deployment to ensure continuous uptime of your network even during UPS maintenance
  • Output: Four (4) IEC320-C19 , Four (4) IEC320-C13 / Max Current: 63A
  • Input: Hardware 3W + G(L-L-N-G)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

Soort
Eenfasig

Poorten & interfaces

Aantal AC uitgangen*
10 AC-uitgang(en)
Stopcontacttypes*
C13 stekker, C19 stekker

Energie

Stroom (max.)*
63 A

Gewicht en omvang

Breedte
188 mm

Gewicht en omvang

Hoogte
145 mm
Gewicht
2 kg

Verpakking

Gewicht verpakking
3 kg
Breedte verpakking
522 mm
Diepte verpakking
220 mm
Hoogte verpakking
302 mm
