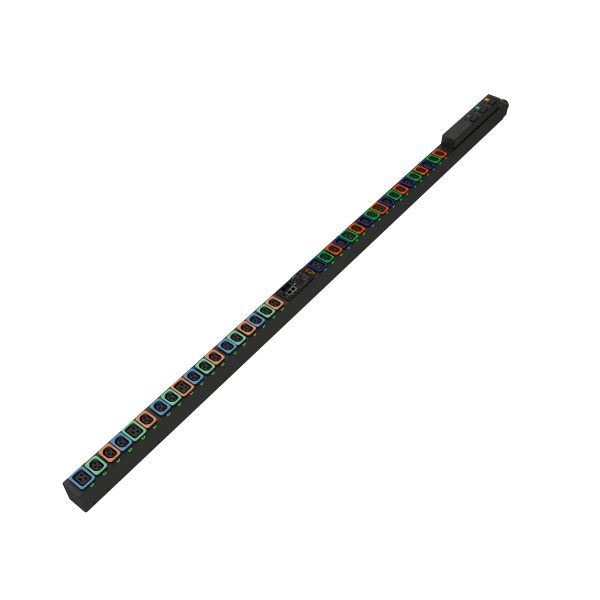

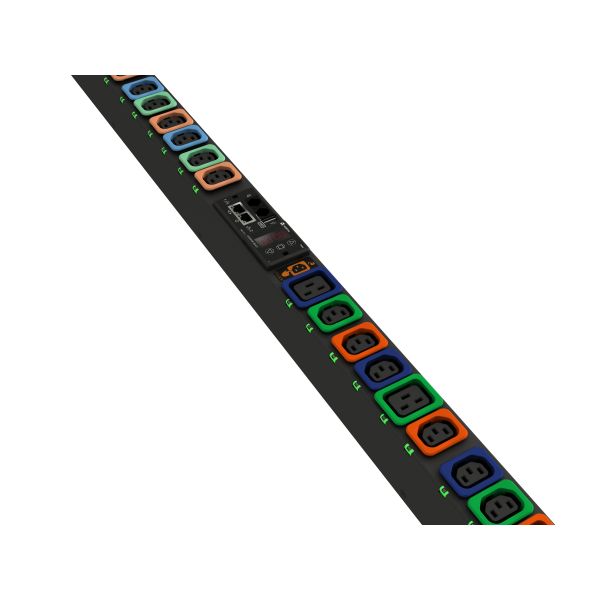

Vertiv UU30009L energiedistributie 36 AC-uitgang(en) 0U Zwart

Vertiv UU30009L, Gemeten, Geschakeld, 0U, Verticaal, Zwart, 36 AC-uitgang(en), C13 stekker, C19 stekker

Niet op voorraad

Fabrikant Vertiv
MPN UU30009L
EAN 0767041029802
€ 2.510,00 excl. BTW

Vertiv UU30009L energiedistributie 36 AC-uitgang(en) 0U Zwart

The Vertiv Geist UPDU is a versatile rack power distribution unit featuring a universal input and detachable Facility Side Cable (FSC - sold separately). The UPDU supports common AC power configurations ranging from 16A-60A and 120V-415V. Available in basic to intelligent models featuring advanced remote power monitoring, environmental monitoring, and optional outlet level switching. The UPDU simplifies critical IT infrastructure deployments by allowing a single model to be installed around the world.
  • The Universal Input enables users to utilize a single UPDU model with various input power configurations to simplify inventory management and enable rapid deployments worldwide
  • Increase or decrease UPDU power capacity by changing the FSC to adapt to fluctuating equipment power needs
  • Upgradeable models allow users to upgrade the hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs
  • The universal power input can mate to any geographically specific FSC, Facility Side Cable, and is designed to operate with variable power input configurations (defined by the connected FSC)
  • The Pivoting Connector adjusts from 0 to 90 degrees to assist with power cable routing
  • Global compliance certification includes: UL Certified, CE Marked, China RoHS, RoHS Compliant, and RCM Mark (EMC only)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

PDU types*
Gemeten, Geschakeld
Rackcapaciteit*
0U
Montage
Verticaal
Kleur van het product
Zwart
Aan/uitschakelaar
Ja

Poorten & interfaces

Aantal AC uitgangen*
36 AC-uitgang(en)
Stopcontacttypes*
C13 stekker, C19 stekker

Kenmerken

LED-indicatoren
Ja
Certificering
CE, UL, CB

Beheerfuncties

Monitoring
Stroom, Stroom, Spanning

Energie

Nominale input voltage*
230/400 V
AC-ingangsfrequentie
50 Hz
Stroom (max.)*
16 A
Laad-capaciteit
11000 VA

Gewicht en omvang

Breedte
1829 mm
Diepte
51 mm
Hoogte
66 mm
Gewicht
12,2 kg

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 60 °C

Technische details

Duurzaamheidscertificaten
RoHS
