Vertiv Geist VP4G9000 energiedistributie 36 AC-uitgang(en) 0U

Vertiv Geist VP4G9000, Gecontroleerd, 0U, Driefasig, Verticaal, LED, 36 AC-uitgang(en)

Niet op voorraad

Fabrikant Vertiv
MPN VP4G9000
EAN 4061471339859
€ 1.103,00 excl. BTW

Vertiv Geist VP4G9000 energiedistributie 36 AC-uitgang(en) 0U

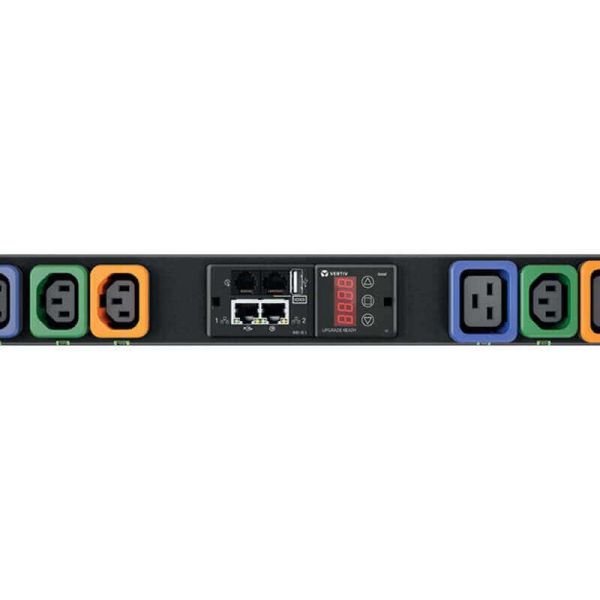

The Vertiv Geist Unit Level Monitored Rack PDU VP4G9000 is a 32A, 230V, 0U vertical rack power distribution unit (rPDU) with 36 Combination C13/C19 outlets, and a 1P+N+E plug providing 7.3kW in power capacity. This Monitored PDU has residual current metering (RCM-B) that monitors insulation level within the IT rack and alerts users of fault conditions requiring immediate action to prevent potential life-threatening injuries, or a complete system shutdown. The rPDU also has a hot-swappable Interchangeable Monitoring Device (IMD) that displays current on the local LED display. The IMD includes ports for serial communication, environmental monitoring, and dual ethernet port. Simplify management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This CE marked PDU meets an important requirement for data centers and each unit undergoes individual testing for functionality to help ensure your network is powered by a reliable rPDU.
  • Vertiv Geist Rack PDU VP4G9000 is as 32A, 230V, 0U vertical rPDU with 1P+N+E plug and 7.3kW capacity
  • Combination C13/C19 Outlets accommodate C14 and C20 plug types interchangeably
  • Fault-tolerant daisy chaining or IP aggregation capabilities to simplify management of multiple rPDUs
  • Residual current metering (RCM-B) alerts users of conditions that can pose serious threat to life and equipment
  • Comes with three-year warranty, extendable to five years if registered within 120 days of purchase

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

PDU types*
Gecontroleerd
Soort
Driefasig
Rackcapaciteit*
0U
Montage
Verticaal
Beeldscherm
LED

Poorten & interfaces

Aantal AC uitgangen*
36 AC-uitgang(en)
Stopcontacttypes*
C13 stekker, C19 stekker

Kenmerken

Snoerlengte
3 m
Certificering
CE Marked

Beheerfuncties

Monitoring
Stroom
Beheerprotocollen
DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Energie

Nominale input voltage*
230 V

Energie

Stroom (max.)*
32 A
Spanning
230 V
Stroomspanning bescherming
Overstroom

Gewicht en omvang

Breedte
51 mm
Diepte
51 mm
Hoogte
1683 mm
Gewicht
7,26 kg

Verpakking

Gewicht verpakking
7,62 kg
Breedte verpakking
230 mm
Diepte verpakking
1829 mm
Hoogte verpakking
153 mm

Logistieke gegevens

Land van herkomst
Verenigd Koninkrijk
