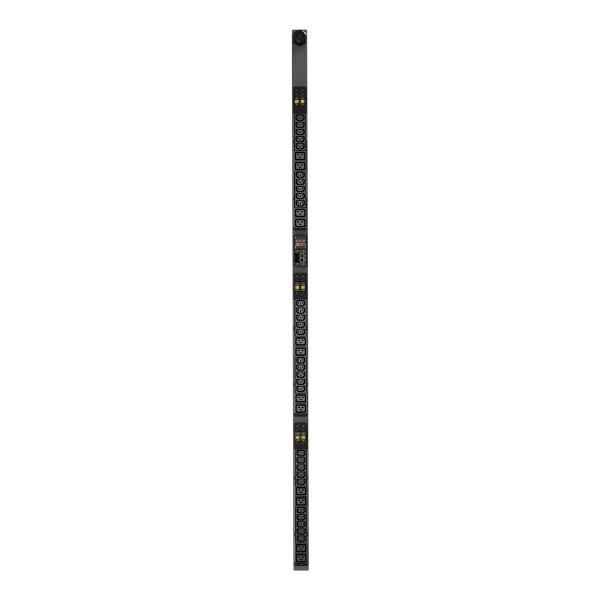

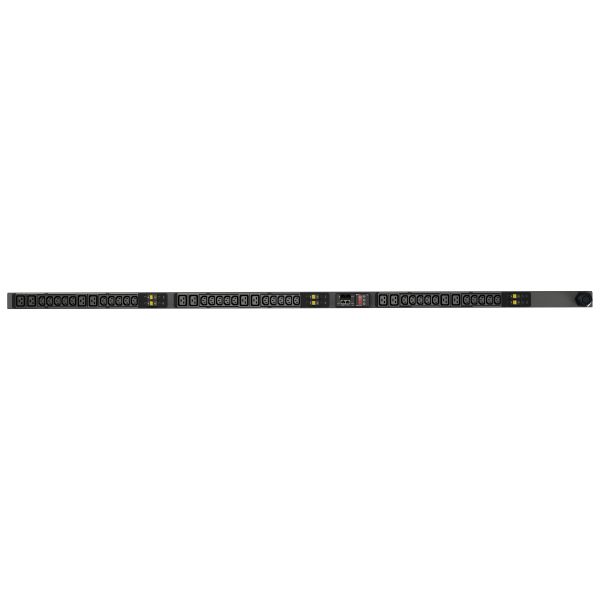

Vertiv Geist rPDU, monitored, 0U, input IEC60309 230/400V 3x32A, outputs (30)C13 | (12)C19 energiedistributie 42 AC-uitgang(en) Zwart

Vertiv Geist rPDU, monitored, 0U, input IEC60309 230/400V 3x32A, outputs (30)C13 | (12)C19, Gecontroleerd, 0U, Driefasig, Verticaal, Zwart, 42 AC-uitgang(en)

Nog 1 beschikbaar (bel voor reservering)

Fabrikant Vertiv
MPN VP8886
EAN 4061471339088
€ 1.953,00 excl. BTW

Vertiv Geist rPDU, monitored, 0U, input IEC60309 230/400V 3x32A, outputs (30)C13 | (12)C19 energiedistributie 42 AC-uitgang(en) Zwart

The Vertiv Geist Monitored Rack PDU VP8886 is a 32A, 230/400V WYE, 0U vertical rack power distribution unit (PDU) with input power monitoring. The VP8886 has (30) IEC C13 and (12) IEC C19 outlets, and a 3P+N+E (IP44) plug providing 22.0kW in power capacity. This Monitored Data Center rPDU provides you quick access to critical power usage information so you can evaluate energy usage trends and maximize uptime. This Monitored Data Center rPDU provides you quick access to critical power usage information so you can evaluate energy usage trends and maximize uptime. The hot-swappable Interchangeable Monitoring Device displays current on the local LED display. Visible Light Communication technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
  • Monitored Rack PDU provides access to power usage data so you can see trends and maximize uptime
  • VP8886 is a rack-mount PDU with (30) IEC C13, (12) IEC C19 outlets and a 3P+N+E (IP44) plug
  • Vertiv Geist rPDUs are individually tested, UL-Listed, and has RoHS certification
  • Manage up to 100 data center PDUs using a single IP address with Vertiv Intelligence Director
  • Three-year warranty is extendable to five years if unit is registered within 120 days of purchase

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

PDU types*
Gecontroleerd
Soort
Driefasig
Rackcapaciteit*
0U
Montage
Verticaal
Kleur van het product
Zwart

Poorten & interfaces

Aantal AC uitgangen*
42 AC-uitgang(en)
Stekker
IEC 60309
Stopcontacttypes*
C13 stekker, C19 stekker
Output-aansluitingen
30 x C13 & 12 x C19

Kenmerken

LED-indicatoren
Nee
Snoerlengte
3 m
Certificering
CE, RoHS, CB certificate

Beheerfuncties

Monitoring
Stroom, Stroom, Spanning
Beheerplatform
Web UI, HTTP, HTTPS (TLS 1.2), SMTP, SMTPS (TLS 1.2), ICMP, DHCP, IPv4, IPv6, Syslog, SNMP v1/v2c/v3, JSON, JSON, API, RSTP

Energie

Nominale input voltage*
230/400 V

Energie

AC-ingangsfrequentie
50 Hz
Stroom (max.)*
32 A
Laad-capaciteit
22000 VA

Gewicht en omvang

Breedte
1829 mm
Diepte
51 mm
Afmetingen (B x D x H)
1829 x 51 x 58 mm
Hoogte
58 mm
Gewicht
7,71 kg

Verpakking

Breedte verpakking
2172 mm
Diepte verpakking
223 mm
Hoogte verpakking
159 mm

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 60 °C

Technische details

Duurzaamheidscertificaten
RoHS
