Vertiv Geist RPDU SWITCHED 0U INPC20 230V 16A OUTP (21)C13 energiedistributie 24 AC-uitgang(en) Zwart

Vertiv Geist RPDU SWITCHED 0U INPC20 230V 16A OUTP (21)C13, Geschakeld, 0U, Eenfasig, Verticaal, Zwart, 24 AC-uitgang(en)

Niet op voorraad

Fabrikant Vertiv
MPN VP8959EU3
EAN 4061471339095
€ 1.602,00 excl. BTW

Vertiv Geist RPDU SWITCHED 0U INPC20 230V 16A OUTP (21)C13 energiedistributie 24 AC-uitgang(en) Zwart

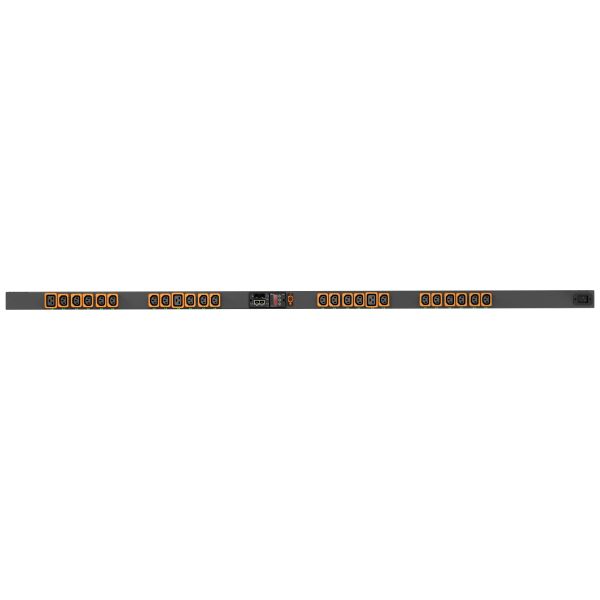

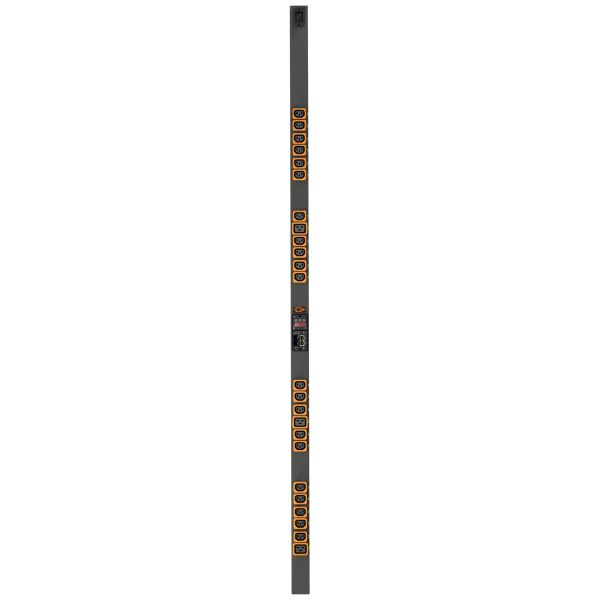

The Vertiv Geist Switched Rack PDU VP8959EU3 is a 16A, 230V, 0U vertical rack power distribution unit (PDU) with input power monitoring and outlet level switching. The VP8959EU3 has (21) locking IEC C13 and (3) locking IEC C19 outlets, and a C20 plug providing 3.6kW in power capacity. This Switched PDU allows you to turn off receptacles to avoid accidental overloads and power cycle equipment remotely to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) displays current on the local LED display. Visible Light Communication (VLC) technology allows you to view complete power usage data locally from a mobile device with the Vertiv rPDU Scanner app. Each rack mount PDU undergoes individual testing for functionality to ensure your network is powered by a reliable smart power strip. The unit comes with a three-year warranty that can be extended to five years if registered within 120 days of purchase.
  • Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
  • VP8959EU3 is a rack-mount PDU with (21) locking C13 and (3) locking C19 outlets and a C20 input
  • Vertiv Geist rPDUs are individually tested, UL-listed and has RoHS certification
  • Manage up to 100 data center PDUs using a single IP address with Vertiv Intelligence Director
  • Three-year warranty is extendable to five years if unit is registered within 120 days of purchase

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

PDU types*
Geschakeld
Soort
Eenfasig
Rackcapaciteit*
0U
Montage
Verticaal
Kleur van het product
Zwart

Poorten & interfaces

Aantal AC uitgangen*
24 AC-uitgang(en)
Stekker
C20 stekker
Stopcontacttypes*
C13 stekker, C19 stekker
Output-aansluitingen
21 x C13 & 3 x C19

Kenmerken

LED-indicatoren
Ja
Certificering
CE, RoHS, CB certificate, FCC Part 15 class A, UL, c-UL

Beheerfuncties

Monitoring
Stroom, Stroom, Spanning
Beheerplatform
Web UI, DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RSTP, SSH, SNMP (v1/v2c/v3), Syslog, CSV datalog, JSON API, JSON datalog

Energie

Nominale input voltage*
230 V

Energie

AC-ingangsfrequentie
50 Hz
Stroom (max.)*
16 A
Laad-capaciteit
3600 VA

Gewicht en omvang

Breedte
1683 mm
Diepte
51 mm
Afmetingen (B x D x H)
1683 x 51 x 66 mm
Hoogte
66 mm
Gewicht
8,16 kg

Verpakking

Breedte verpakking
1829 mm
Diepte verpakking
223 mm
Hoogte verpakking
159 mm

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C

Technische details

Duurzaamheidscertificaten
RoHS
