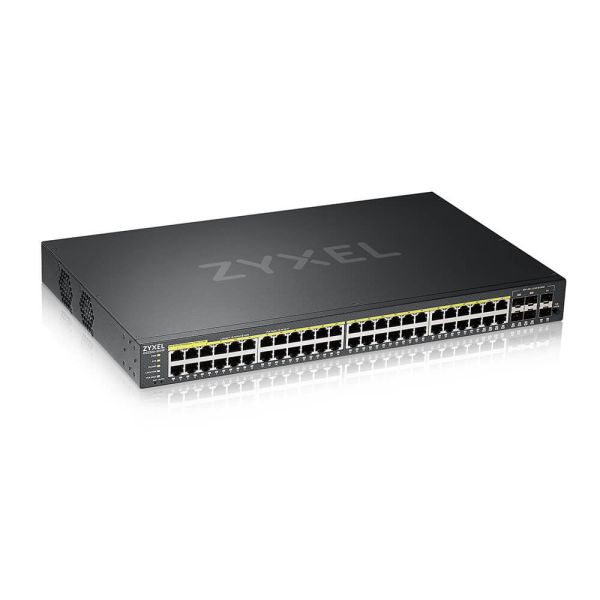

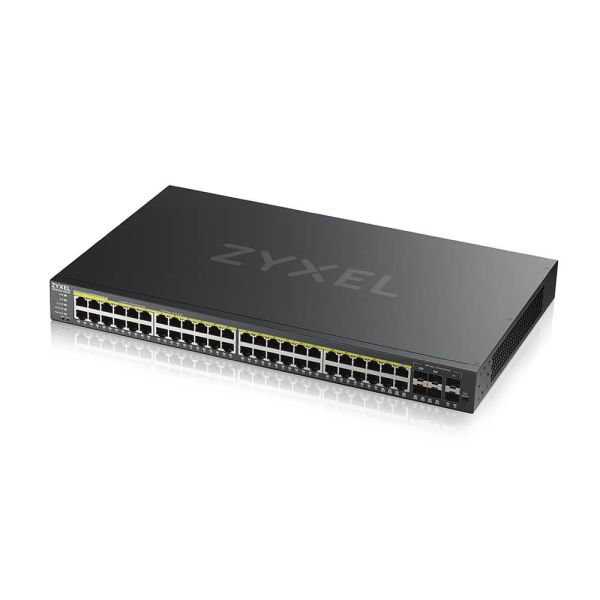

Zyxel GS2220-50HP-EU0101F netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Zyxel GS2220-50HP-EU0101F, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage

Nog 19 beschikbaar

Fabrikant ZyXEL
MPN GS2220-50HP-EU0101F
EAN 4718937607563
€ 829,00 excl. BTW

Zyxel GS2220-50HP-EU0101F netwerk-switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Designed for converged networks
GS2220 Series
Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.

Industry first tri-mode switch.
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.

Powerful L2 features.
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.

Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.

Intelligent PoE+ powers more devices.
The intelligent consumption mode delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. The switch supports the IEEE 802.3at providing a maximum of 30W per port and 180W total budget.

Experience whisper-silent operations.
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.

Flexible port combination.
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.
  • NebulaFlex Pro allows users to switch between standalone management and intuitive Nebula cloud managed mode with 1-Year Pro Pack bundled
  • L2 multicast, IGMP snooping, MVR and voice VLAN for convergence
  • High power budget of 375 W (28HP/52HP) and 180 W (10HP) within its compact case design simplifying rack installation
  • Smart fan and fanless designs offer near silent operations in both desktop and rack-mount environment
  • Check real-time status intuitively by cloud and PoE LED indicators

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L2
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
Locatie-instellingen (CLI) configureren
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
44
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Combo SFP-poorten
4
Fibre channel-poorten
2
Vezel-optische connector
SFP

Netwerk

Netwerkstandaard*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Koperen ethernetbekabelingstechnologie
10BASE-TX, 1000BASE-T
Port mirroring
Ja
Datastroombeheer
Ja
Verbindingsaggregatie
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja
Virtuele LAN-functies
Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Optische vezel

Fiber ethernet cabling technologie
1000BASE-X

Data-uitwisseling

Switchingcapaciteit*
100 Gbit/s
Verzending snelheid
74 Mpps
MAC-adrestabel*
16000 entries
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Access Control List (ACL)
Ja
IGMP snooping
Ja
Ondersteunde beveiligingsalgoritmen
SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
MAC adres filtering
Ja
Authenticatie
Gast-VLAN, MAC-gebaseerde authenticatie
Authenticatie type
IEEE 802.1x, RADIUS

Multicast-functies

Multicast-ondersteuning
Ja

Design

Rack-montage*
Ja
Kleur van het product
Zwart
Certificering
LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A

Prestatie

Intern geheugen
256 MB
Flash memory
32 MB
Geluidsniveau
49,5 dB
Upgraden van firmware mogelijk
Ja
Mean time between failures (MTBF)
466921 uur

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
474,3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Hoeveelheid Power over Ethernet (PoE) ports
48
Totaal Power over Ethernet (PoE)-budget
375 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 95 procent
Luchtvochtigheid bij opslag
10 - 95 procent
Warmtedissipatie
1617,363 BTU/h

Gewicht en omvang

Breedte
441 mm
Diepte
270 mm
Hoogte
44 mm
Gewicht
4,1 kg

Verpakking

Meegeleverde kabels
AC
Breedte verpakking
616 mm
Diepte verpakking
355 mm
Hoogte verpakking
107 mm
Gewicht verpakking
5,25 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
